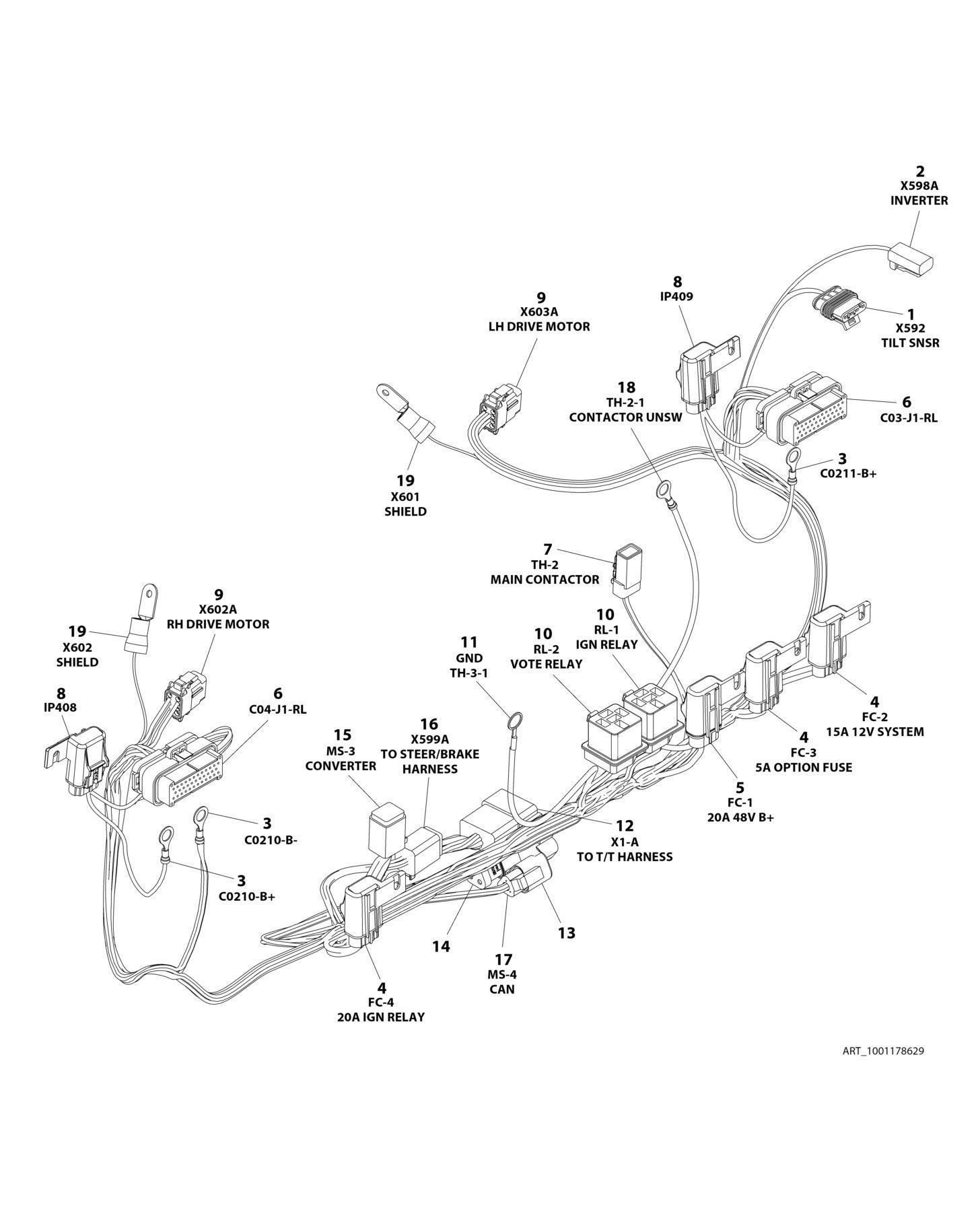

FIGURE 8 49. TRACTION HARNESS
FIGURE 8-49. TRACTION HARNESS
FIGURE 8-49. TRACTION HARNESS
ITEM PART NUMBER QTY
1001178629 Ref TRACTION HARNESS 1 1001103012 1 Connector - 4 Position 1 1001107854 4 Socket, Female 2 4460891 1 Plug, Male - 2 Position 2 4460465 1 Socket, Female 2 4460466 1 Plug, Terminal 3 4460670 3 Terminal, Ring 4 1001217844 3 Fuseholder 4 1001217842 3 Cover 4 8229261 1 Fuse - 5Amp 4 8229237 1 Fuse - 15Amp 4 8229235 1 Fuse - 20Amp 4 1001116734 6 Terminal, Female 5 1001217844 1 Fuseholder 5 1001217842 1 Cover 5 8229235 1 Fuse - 20Amp 5 1001116734 2 Terminal, Female 6 4460873 1 Connector - 35 Position 6 4460871 11 Terminal, Female 6 4460905 24 Seal, Terminal 7 1001126245 1 Connector - 2 Position 7 1001126008 2 Terminal 8 1001217843 2 Fuseholder 8 1001217842 2 Cover 8 8229234 2 Fuse - 10Amp 8 1001116733 4 Terminal 9 1001190577 2 Plug, Male - 8 Position 9 1001126008 16 Terminal 10 1001203734 2 Plug, Relay 10 1001116732 8 Terminal 11 4460019 1 Terminal, Ring 12 4460950 1 Connector - 12 Position 12 1001157891 4 Terminal 12 1001116693 4 Pin, Male 12 4460464 2 Pin, Male 12 4460943 2 Pin, Male 13 4460945 1 Receptacle, 3 Way 14 1001116815 1 Resistor, 3 Position 15 4460894 1 Plug, Male - 6 Position 15 1001157890 5 Terminal 15 1001116692 1 Socket, Female 16 4460894 1 Plug, Male - 6 Position 16 4460465 5 Socket, Female 16 4460466 1 Plug, Terminal 17 1001116812 1 Plug, Male - 3 Position 17 4460944 3 Socket, Female 18 4460738 1 Terminal, Ring 19 1001260275 2 Terminal, Ring
DESCRIPTION REV
L
