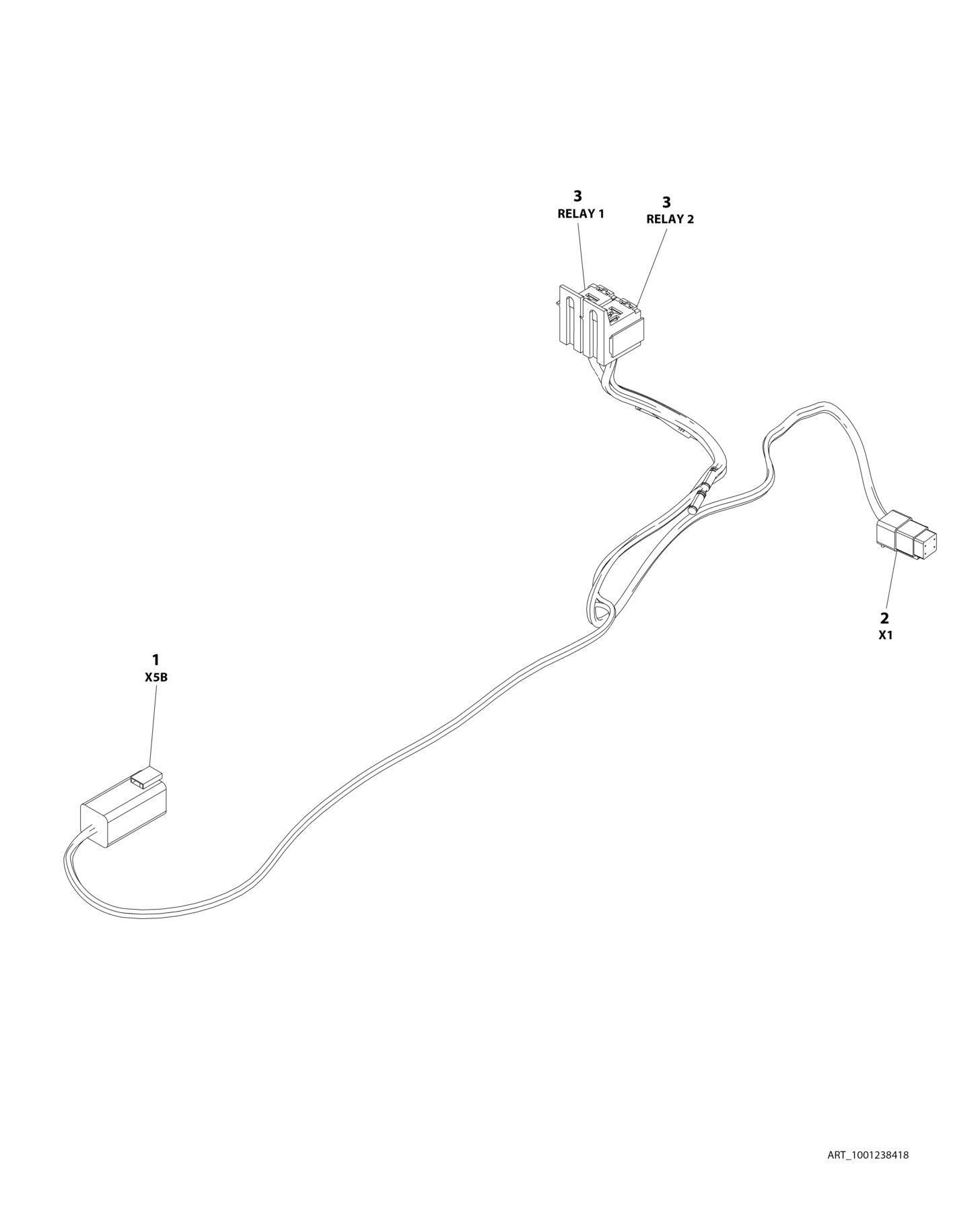

FIGURE 8 47. SKYLINE HARNESS

FIGURE 8-47. SKYLINE HARNESS

FIGURE 8-47. SKYLINE HARNESS

ITEM PART NUMBER QTY

1001238418 Ref SKYLINE HARNESS 1 4460899 1 Connector - 6 Position 1 4460464 4 Pin, Male 1 4460466 2 Plug, Terminal 2 4461077 1 Connector - 4 Position 2 1001126009 4 Socket, Female 3 1001186432 2 Plug, Relay 3 1001118388 5 Terminal 3 1001118384 3 Terminal 3 3740086 2 Relay

DESCRIPTION REV

B
