FIGURE 8 46. SKYGUARD HARNESS WITH 1 CELL LSS

from JLG E450A E450AJ M450AJ PVC 2001 2007 Parts Manual (31215014)_english

FIGURE 9 13. DECAL INSTALLATION SPANISH/PORTUGUESE SPECS E450A/E450AJ

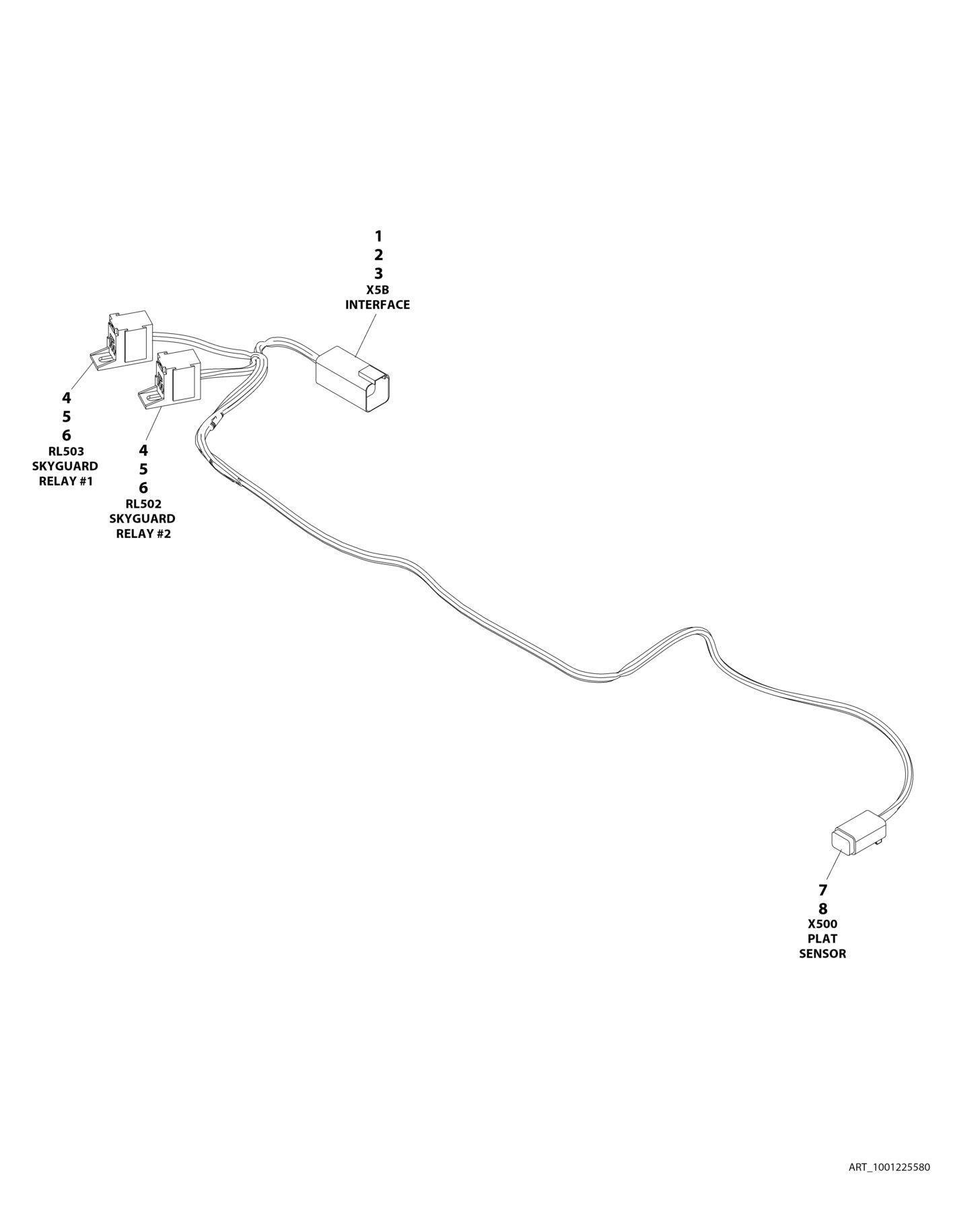

FIGURE 8-46. SKYGUARD HARNESS - WITH 1 CELL LSS

ITEM PART NUMBER QTY

DESCRIPTION

1001225580 Ref INTERFACE HARNESS - WITH 1 CELL LSS 1 4460899 1 Connector 2 4460464 4 Terminal 3 4460466 2 Plug 4 1001186432 2 Connector 5 1001104519 4 Terminal 6 1001253375 4 Terminal 7 4460884 1 Connector 8 4460465 4 Terminal

FIGURE 8 46. SKYGUARD HARNESS WITH 1 CELL LSS

Next Article

FIGURE 9 13. DECAL INSTALLATION SPANISH/PORTUGUESE SPECS E450A/E450AJ

FIGURE 8-46. SKYGUARD HARNESS - WITH 1 CELL LSS

FIGURE 8-46. SKYGUARD HARNESS - WITH 1 CELL LSS

ITEM PART NUMBER QTY

DESCRIPTION

REV
