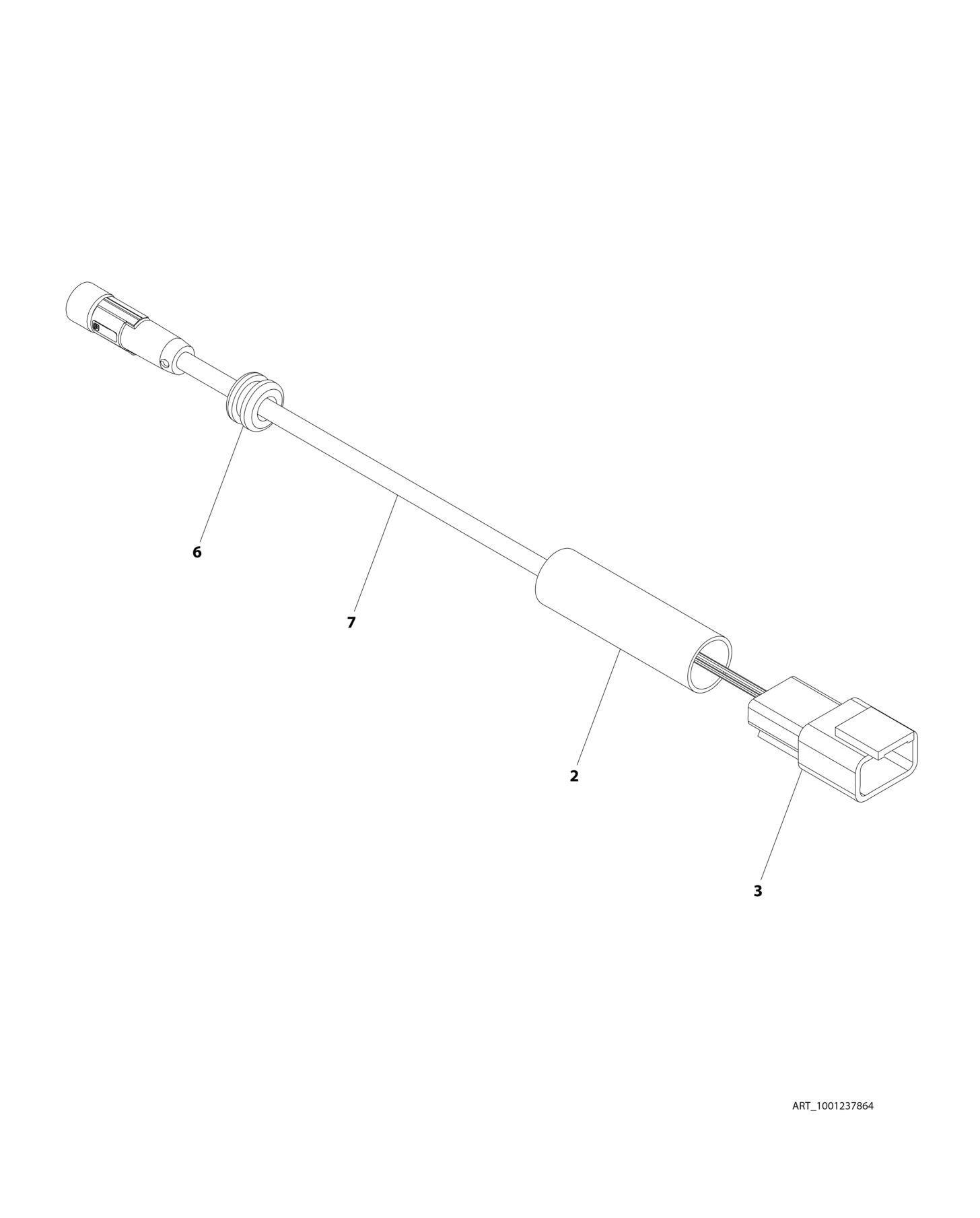

FIGURE 8 45. SKYEYE EMITTER HARNESS

from JLG E450A E450AJ M450AJ PVC 2001 2007 Parts Manual (31215014)_english

FIGURE 9 13. DECAL INSTALLATION SPANISH/PORTUGUESE SPECS E450A/E450AJ

FIGURE 8-45. SKYEYE EMITTER HARNESS

ITEM PART NUMBER QTY

DESCRIPTION

1001237864 Ref SKYEYE EMITTER HARNESS 2 2820247 AR Tubing, Heat Shrink 3 4460910 1 Connector - 3 Position 3 1001119620 3 Pin, Male 6 1001227996 1 Grommet 7 1001237862 1 Cable, M8 Female Cordset

FIGURE 8 45. SKYEYE EMITTER HARNESS
