FIGURE 8 44. SKYEYE RECEIVER HARNESS

from JLG E450A E450AJ M450AJ PVC 2001 2007 Parts Manual (31215014)_english

FIGURE 9 13. DECAL INSTALLATION SPANISH/PORTUGUESE SPECS E450A/E450AJ

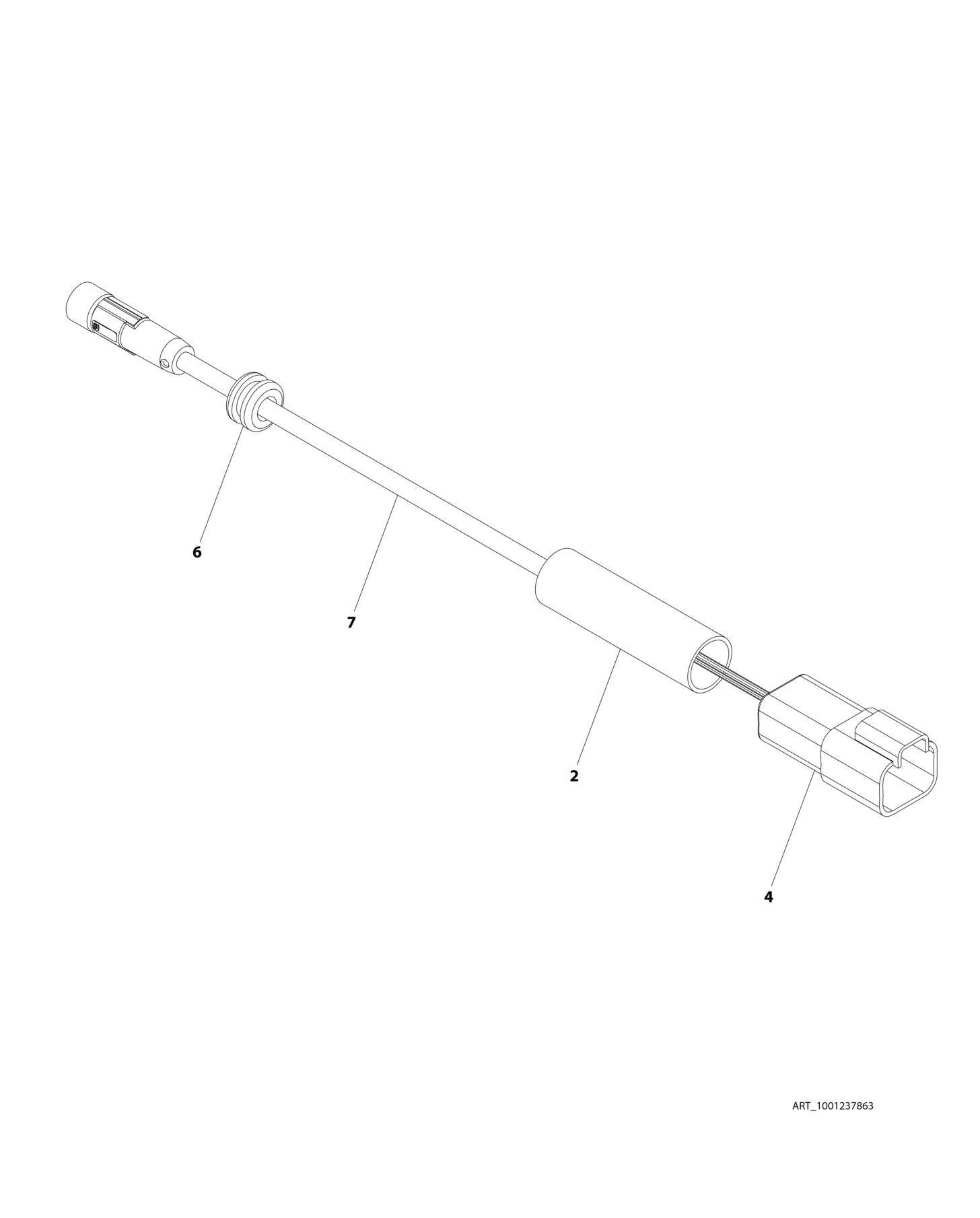

FIGURE 8-44. SKYEYE RECEIVER HARNESS

ITEM PART NUMBER QTY

DESCRIPTION

1001237863 Ref SKYEYE RECEIVER HARNESS 2 2820247 AR Tubing, Heat Shrink 4 1001097051 1 Connector - 4 Position 4 1001119620 4 Pin, Male 6 1001227996 1 Grommet 7 1001237862 1 Cable, M8 Female Cordset

FIGURE 8 44. SKYEYE RECEIVER HARNESS
