FIGURE 8 40. PLUG AND RECEPTACLE 220 INSTALLATION CEE7 SIDE GROUND 2 X 4 BOX (CE SPEC

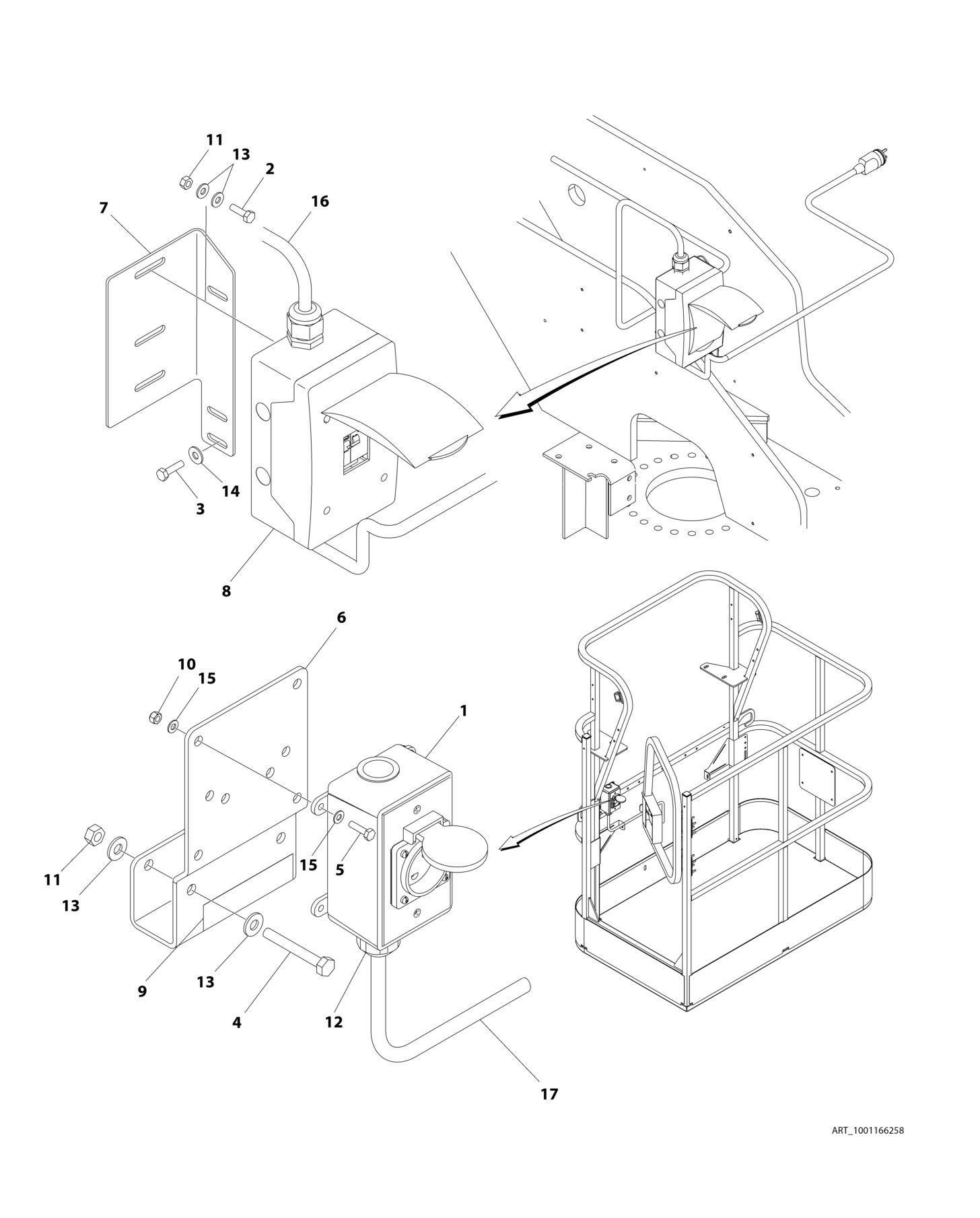

FIGURE 8-40. PLUG AND RECEPTACLE 220 INSTALLATION - CEE7 SIDE GROUND - 2 X 4 BOX (CE SPEC)

FIGURE 8-40. PLUG AND RECEPTACLE 220 INSTALLATION - CEE7 SIDE GROUND - 2 X 4 BOX (CE SPEC)

ITEM PART NUMBER QTY

DESCRIPTION

1001166258 Ref PLUG AND RECEPTACLE 220 INSTALLATION - CEE7 SIDE GROUND - 2 X 4 BOX 1 0275453 1 AC Plugs and Sockets Installation (See Separate Breakdown in this Section) 2 0641407 2 Bolt 1/4 x 7/8 3 0641408 2 Bolt 1/4 x 1 4 0641416 2 Bolt 1/4 x 2 5 0700408 4 Bolt M4 x 16 6 1001193018 1 Bracket 7 1001178491 1 Bracket 8 1001152485 1 Breaker Box Kit with Three Breakers (See Separate Breakdown in this Section) 9 3252507 2 Decal - 220V - 50/60 Hz 10 3290405 4 Nut M4 11 3311405 4 Nut 1/4 12 4460662 1 Connector, Strain Relief 13 4711400 8 Washer 1/4 14 4751400 2 Washer 1/4 15 4811400 8 Washer M4 16 4922609 1 Lower Boom 220V Harness Assembly (See Separate Breakdown in this Section) 17 4922610 1 Main Boom 220V Harness Assembly (See Separate Breakdown in this Section)

REV

D
