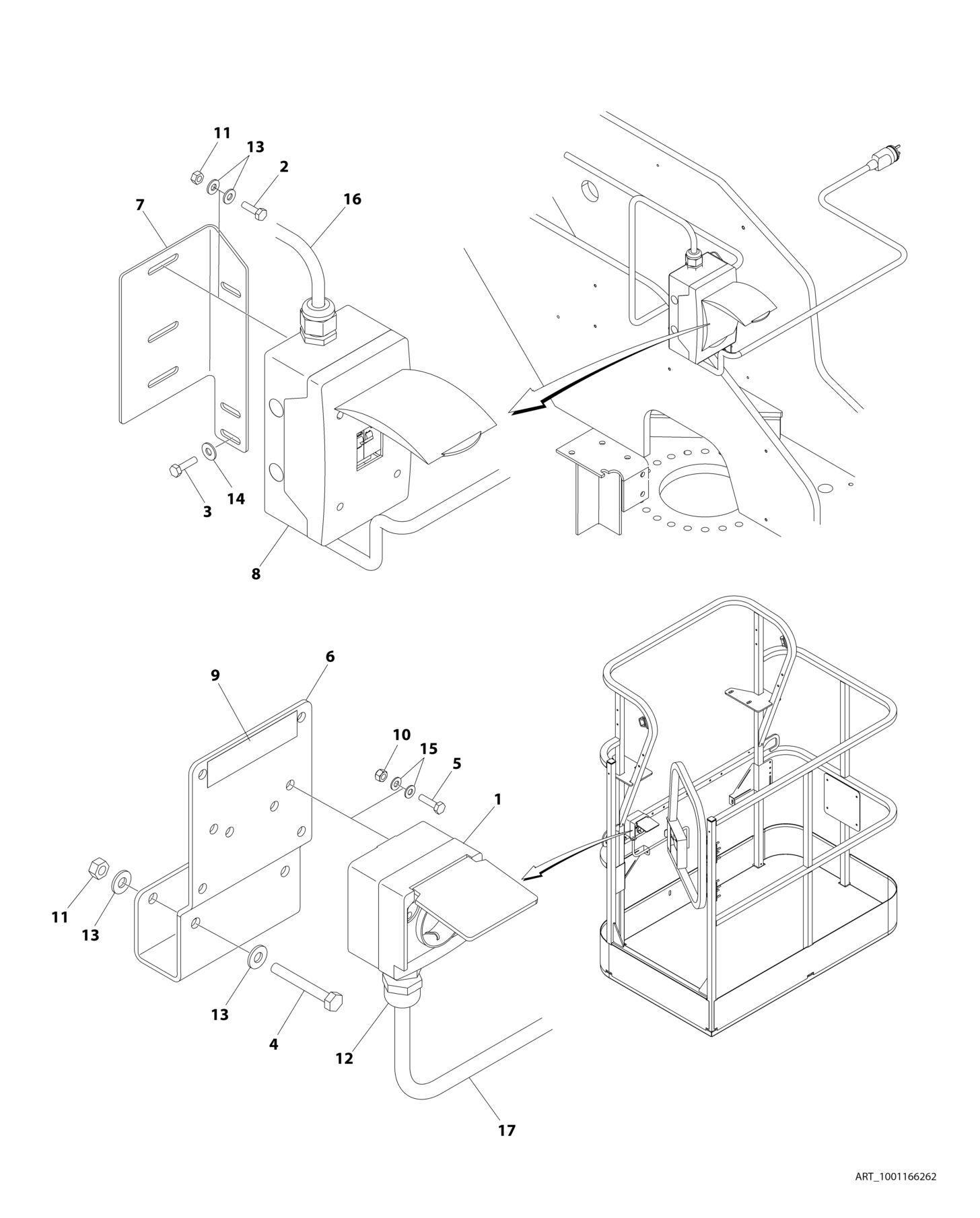

FIGURE 8 41. PLUG AND RECEPTACLE 220V INSTALLATION CEE7 SIDE GROUND 70MM X 70MM BOX (CE SPEC
ITEM PART NUMBER QTY
DESCRIPTION
1001166262 Ref PLUG AND RECEPTACLE 220V INSTALLATION - CEE7 SIDE GROUND - 70MM X 70MM BOX 1 0275219 1 AC Plugs and Sockets Installation (See Separate Breakdown in this Section) 2 0641407 2 Bolt 1/4 x 7/8 3 0641408 2 Bolt 1/4 x 1 4 0641416 2 Bolt 1/4 x 2 5 0700408 2 Bolt M4 x 16 6 1001193018 1 Bracket 7 1001178491 1 Bracket 8 1001152485 1 Breaker Box Kit with Three Breakers (See Separate Breakdown in this Section) 9 3252507 2 Decal - 220V - 50/60 Hz 10 3290405 2 Nut M4 11 3311405 4 Nut M4 12 4460968 1 Connector, Strain Relief 13 4711400 8 Washer 1/4 14 4751400 2 Washer 1/4 15 4811400 4 Washer M4 16 4922609 1 Lower Boom 220V Harness Assembly (See Separate Breakdown in this Section) 17 4922610 1 Main Boom 220V Harness Assembly (See Separate Breakdown in this Section)
REV
C
