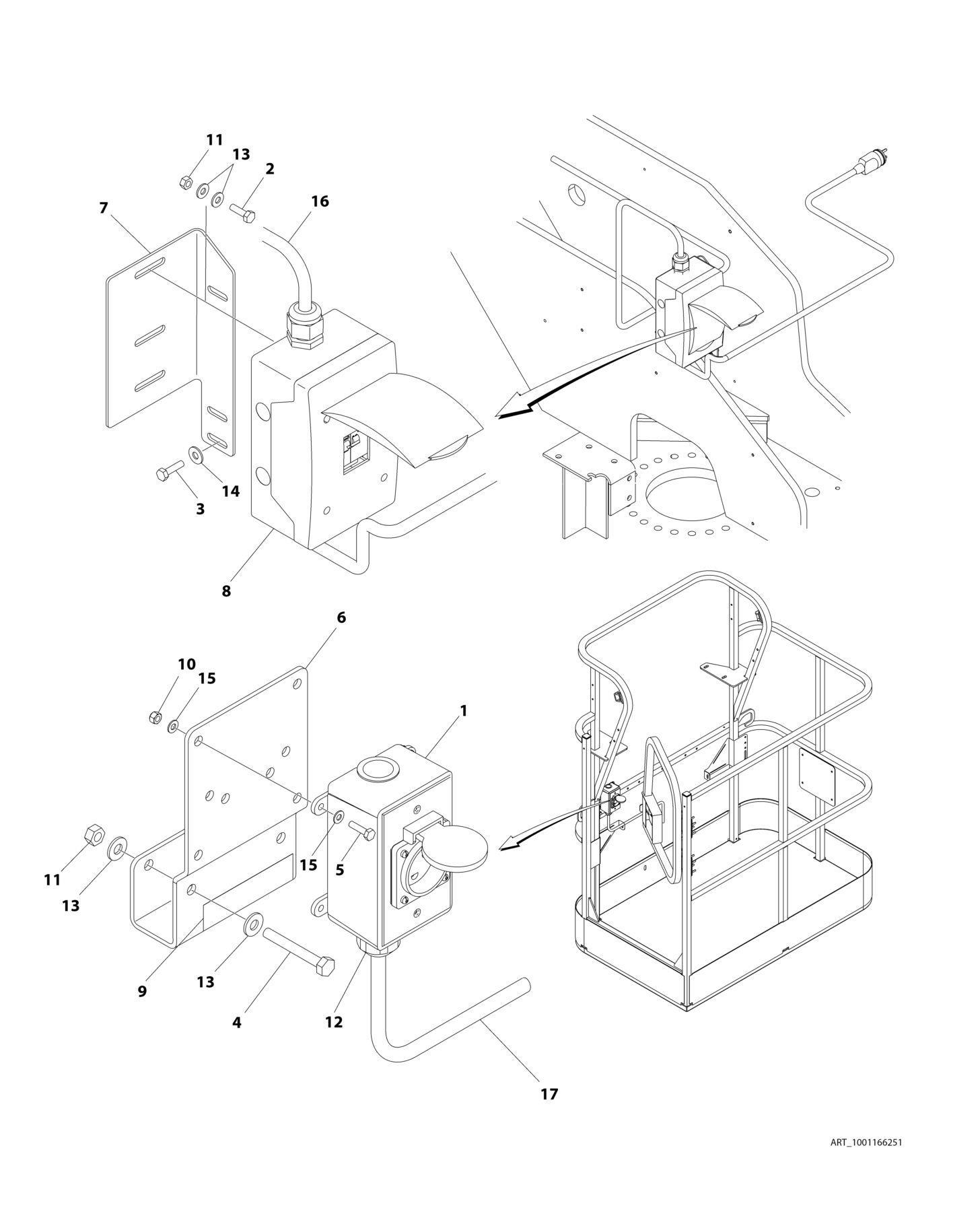

FIGURE 8 38. PLUG AND RECEPTACLE 220V INSTALLATION CEE7 POST GROUND 2 X 4 BOX (CE SPEC
ITEM PART NUMBER QTY
DESCRIPTION
1001166251 Ref PLUG AND RECEPTACLE 220V INSTALLATION - CEE7 POST GROUND - 2 X 4 BOX 1 0275452 1 AC Plugs and Sockets Installation (See Separate Breakdown in this Section) 2 0641407 2 Bolt 1/4 x 7/8 3 0641408 2 Bolt 1/4 x 1 4 0641416 2 Bolt 1/4 x 2 5 0700408 4 Bolt M4 x 16 6 1001193018 1 Bracket 7 1001178491 1 Bracket 8 2902549 1 Breaker Box Kit with Two Breakers (See Separate Breakdown in this Section) 9 3252507 2 Decal - 220V - 50/60Hz 10 3290405 4 Nut M4 11 3311405 4 Nut 1/4 12 4460662 1 Connector, Strain Relief 13 4711400 8 Washer 1/4 14 4751400 2 Washer 1/4 15 4811400 8 Washer M4 16 4922609 1 Lower Boom 220V Harness Assembly (See Separate Breakdown in this Section) 17 4922610 1 Main Boom 220V Harness Assembly (See Separate Breakdown in this Section)
REV
C
ITEM PART NUMBER QTY
DESCRIPTION

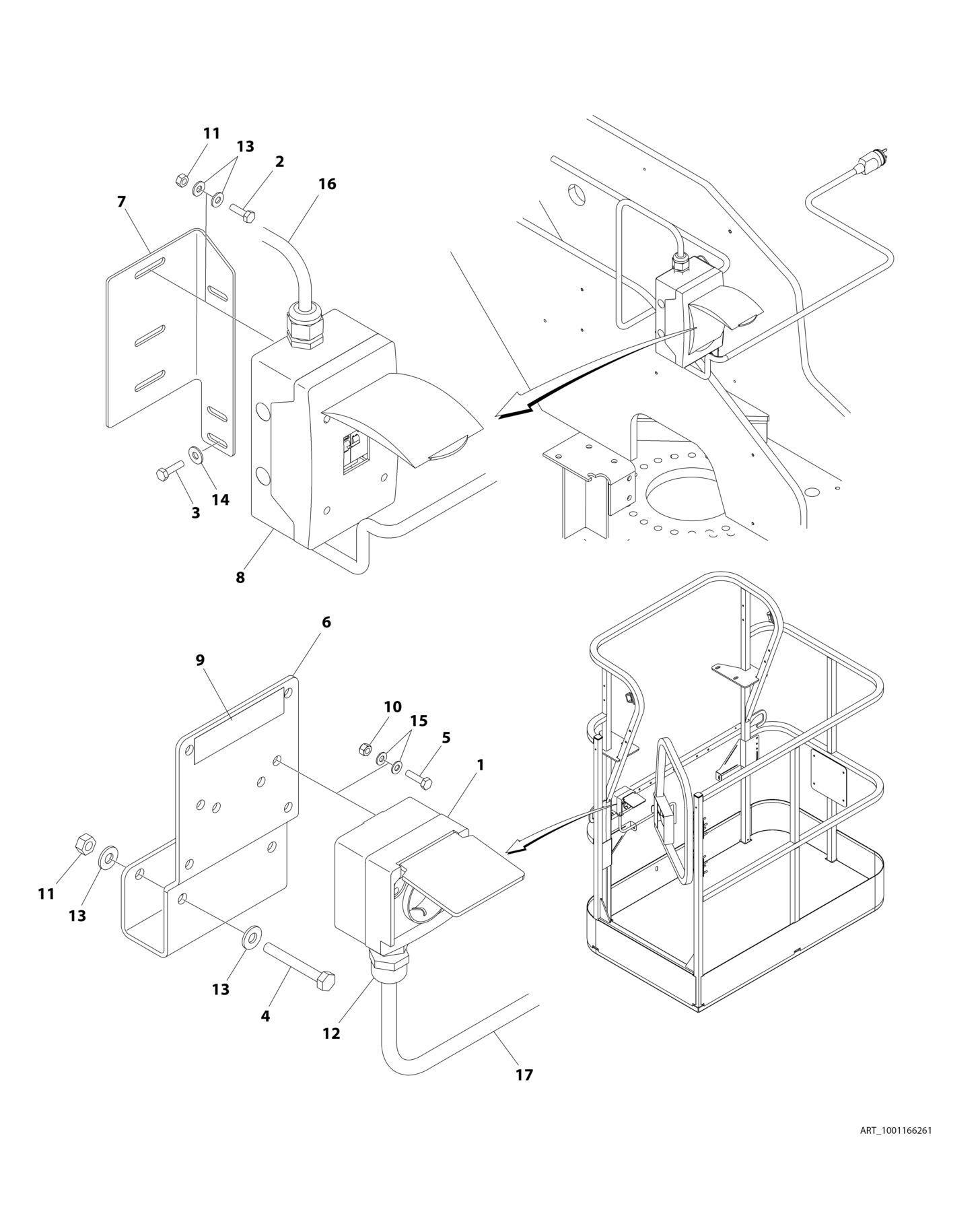

1001166261 Ref PLUG AND RECEPTACLE 220V INSTALLATION - CEE7 POST GROUND - 70MM X 70MM BOX 1 0275218 1 AC Plugs and Sockets Installation (See Separate Breakdown in this Section) 2 0641407 2 Bolt 1/4 x 7/8 3 0641408 2 Bolt 1/4 x 1 4 0641416 2 Bolt 1/4 x 2 5 0700408 2 Bolt M4 x 16 6 1001193018 1 Bracket 7 1001178491 1 Bracket 8 2902549 1 Breaker Box Kit with Two Breakers (See Separate Breakdown in this Section) 9 3252507 2 Decal - 220V - 50/60 Hz 10 3290405 2 Nut M4 11 3311405 4 Nut 1/4 12 4460968 1 Connector, Strain Relief 13 4711400 8 Washer 1/4 14 4751400 2 Washer 1/4 15 4811400 4 Washer 4mm 16 4922609 1 Lower Boom 220V Harness Assembly (See Separate Breakdown in this Section) 17 4922610 1 Main Boom 220V Harness Assembly (See Separate Breakdown in this Section)
REV
C
