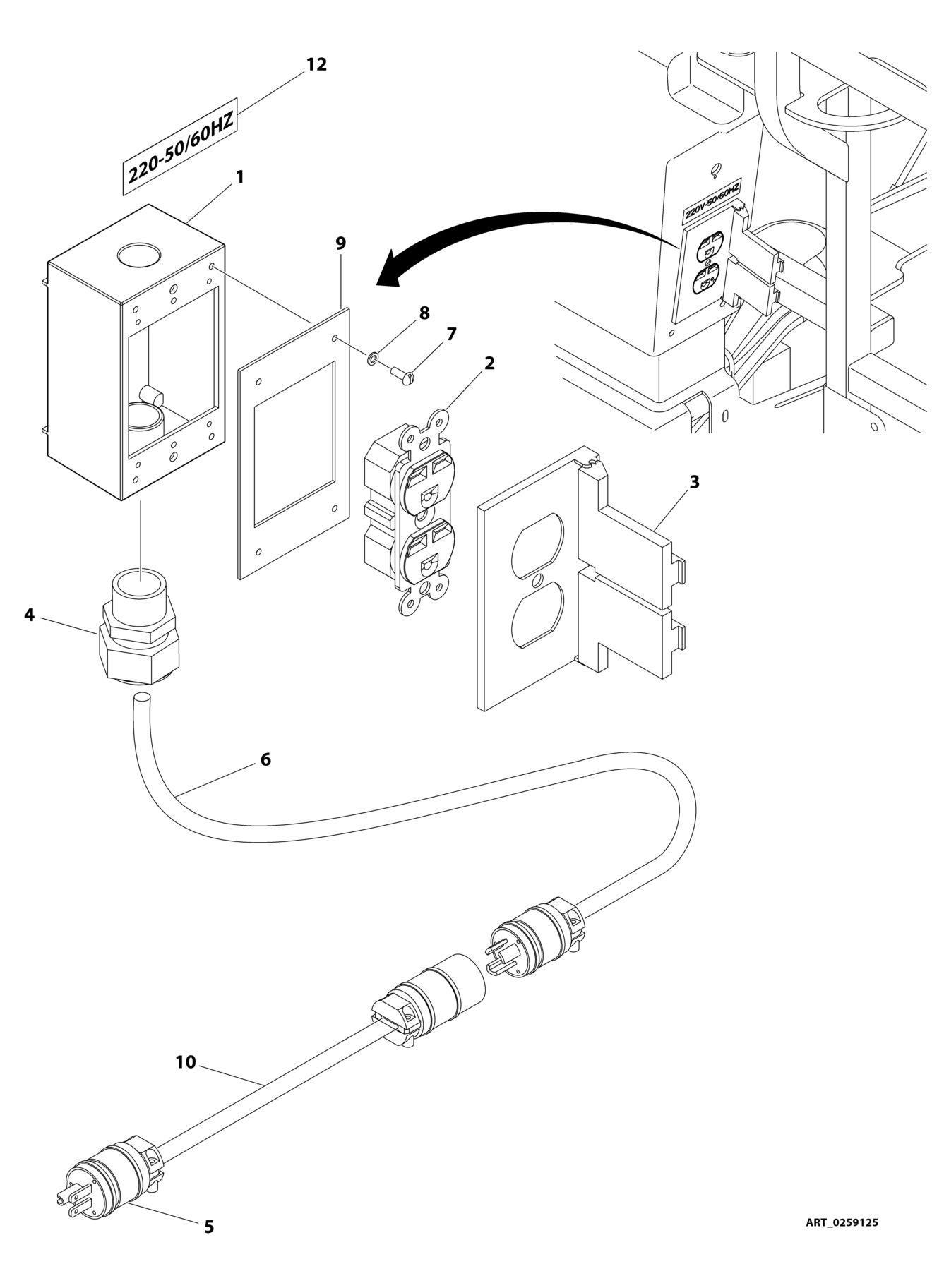

FIGURE 8 35. PLUG AND RECEPTACLE INSTALLATION 220V
ITEM PART NUMBER QTY DESCRIPTION REV
0259125 Ref PLUG AND RECEPTACLE 220V INSTALLATION - ANSI SPEC 4 1 0860038 1 Box, Switch 2 4460125 1 Receptacle 3 4060092 1 Shield, Cover 4 4460071 1 Connector, Strain Relief 5 4460233 1 Plug, Male 6 4922608 1 Upper Boom 110V Harness Assembly (See Separate Breakdown in this Section) 7 3910610 4 Screw, Self-tapping, #6 x 5/8 8 4760600 4 Washer #6 9 3960422 1 Gasket 10 4922607 1 Lower Boom 110V Harness Assembly (See Separate Breakdown in this Section) 12 3252507 1 Decal - 220V-50/60 Hz
