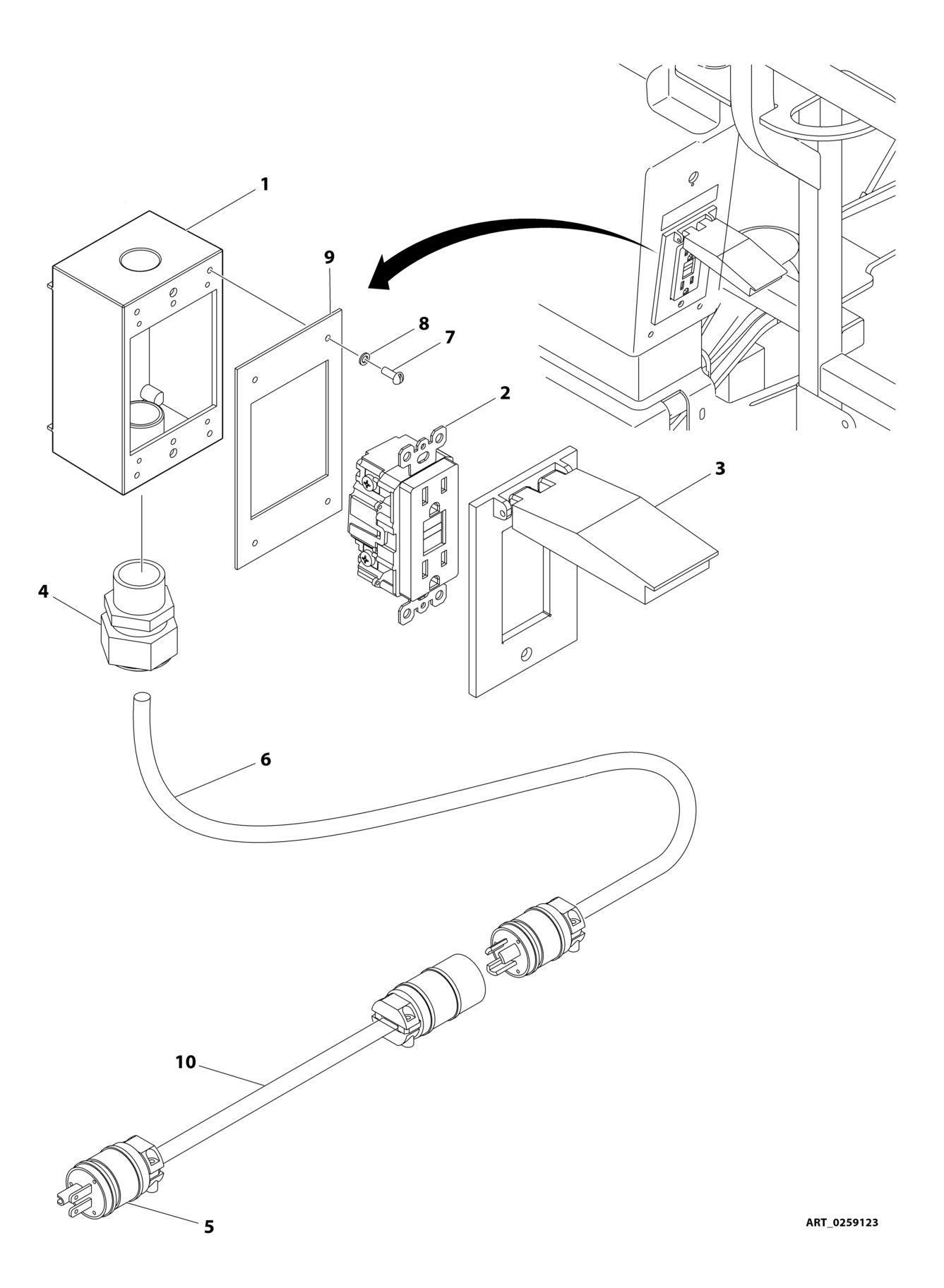

FIGURE 8 34. PLUG AND RECEPTACLE INSTALLATION 110V
ITEM PART NUMBER QTY DESCRIPTION REV
0259123 Ref PLUG AND RECEPTACLE INSTALLATION - 110V - ANSI SPEC 5 1 0860038 1 Box, Switch 2 4460346 1 Receptacle 3 1001110873 1 Shield, Cover 4 4460071 1 Connector, Strain Relief 5 4460205 1 Plug, Male 6 4922608 1 Upper Boom 110V Harness Assembly (See Separate Breakdown in this Section) 7 3910610 4 Screw, Self-tapping, #6 x 5/8 8 4760600 4 Washer #6 9 3960422 1 Gasket 10 4922607 1 Lower Boom 110V Harness Assembly (See Separate Breakdown in this Section)
