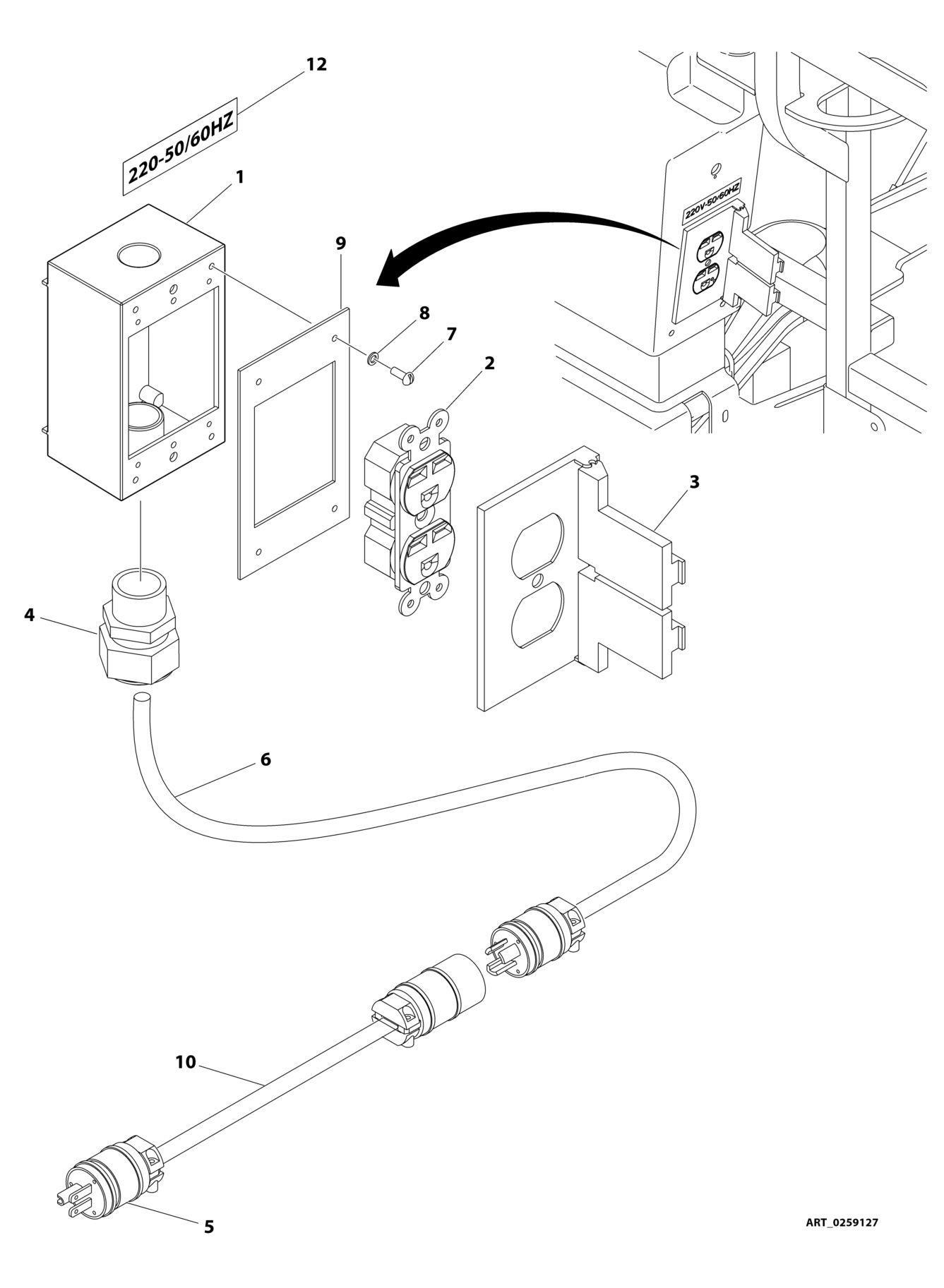

FIGURE 8 33. PLUG AND RECEPTACLE INSTALLATION SUPPLIED LOCALLY
ITEM PART NUMBER QTY DESCRIPTION REV
0259127 Ref PLUG AND RECEPTACLE INSTALLATION - SUPPLIED LOCALLY 2 1 See Note 1 Box, Switch (Note: Supplied Locally) 2 See Note 1 Receptacle (Note: Supplied Locally) 3 See Note 1 Shield, Cover (Note: Supplied Locally) 4 See Note 1 Connector, Strain Relief (Note: Supplied Locally) 5 See Note 1 Plug, Male (Note: Supplied Locally) 6 4922610 1 Upper Boom 220V Harness Assembly (See Separate Breakdown in this Section) 7 See Note 4 Screw, Self-tapping, #6-32 x 5/8 (Note: Supplied Locally) 8 See Note 4 Washer, #6 (Note: Supplied Locally) 9 See Note 1 Gasket (Note: Supplied Locally) 10 4922609 1 Lower Boom 220V Harness Assembly (See Separate Breakdown in this Section) 12 See Note 1 Decal - 220V-50/60Hz (Note: Supplied Locally)
