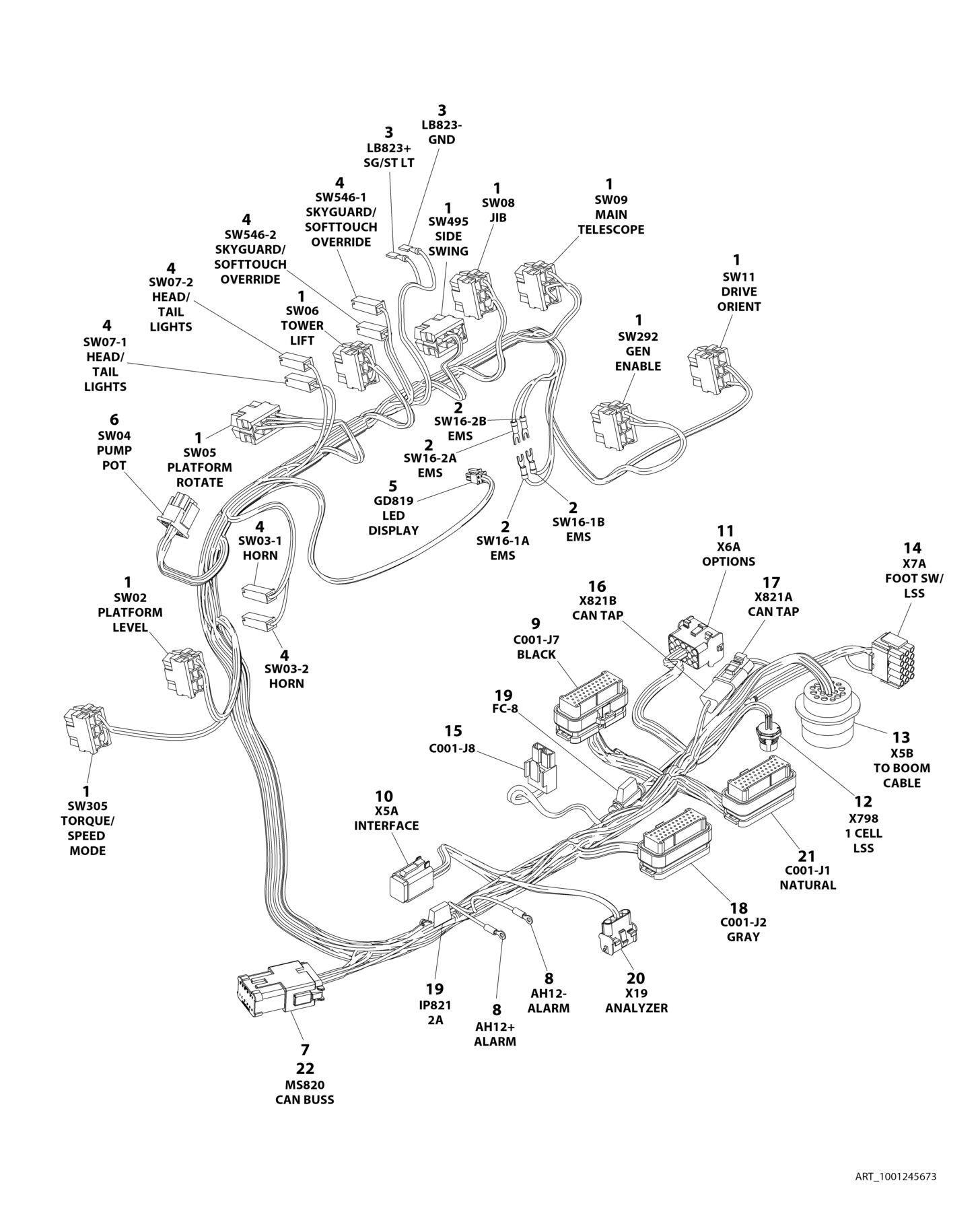

FIGURE 8 32. PLATFORM CONSOLE HARNESS WITH 1 CELL LSS
ITEM PART NUMBER QTY
DESCRIPTION
1001245673 Ref PLATFORM CONSOLE HARNESS 1 4460418 9 Connector - 6 Position 1 4460419 14 Terminal 1 1001159186 18 Terminal 2 4460888 4 Terminal, Fork 3 4460016 2 Terminal 4 4460260 6 Housing, Terminal 4 4460259 8 Terminal 5 1001237667 1 Connector - 6 Position 5 1001237668 4 Terminal 6 4460225 1 Connector - 6 Position 6 4460267 7 Socket, Female 7 4460933 1 Plug, Male - 12 Position 7 4460465 10 Socket, Female 7 4460466 2 Plug, Terminal 8 1001098122 2 Terminal, Ring 9 4460873 1 Connector - 35 Position 9 4460871 21 Socket, Female 9 4460905 14 Plug, Terminal 10 4460894 1 Plug, Male - 6 Position 10 4460465 6 Socket, Female 11 4460708 1 Connector - 15 Position 11 4460226 12 Socket, Female 12 1001213447 1 Connector, Female - 5 Position 13 4460866 1 Connector - 19 Position 13 4460466 7 Plug, Terminal 13 4460464 10 Pin, Male 13 4460508 2 Pin, Male 14 4460434 1 Plug, Male - 15 Position 14 4460227 9 Pin, Male 15 4460879 1 Plug, Male - 2 Position 15 4460887 2 Terminal 16 4460536 1 Receptacle, Female - 3 Position 16 4460464 2 Pin, Male 16 4460466 1 Plug, Terminal 17 4460539 1 Plug, Male - 3 Position 17 4460465 2 Socket, Female 17 4460466 1 Plug, Terminal 18 4460875 1 Connector - 35 Position 18 4460905 24 Plug, Terminal 18 4460871 11 Socket, Female 19 2400060 2 Holder, Fuse 19 8229242 1 Fuse - 5Amp 19 See Note 1 Fuse - 2Amp (Note: Purchase Locally) 20 4460761 1 Receptacle, Female - 4 Position 20 4460227 4 Pin, Male 21 4460874 1 Connector - 35 Position 21 4460871 24 Socket, Female 21 4460905 11 Plug, Terminal 22 1001125677 1 Connector, Bussbar
REV
D
