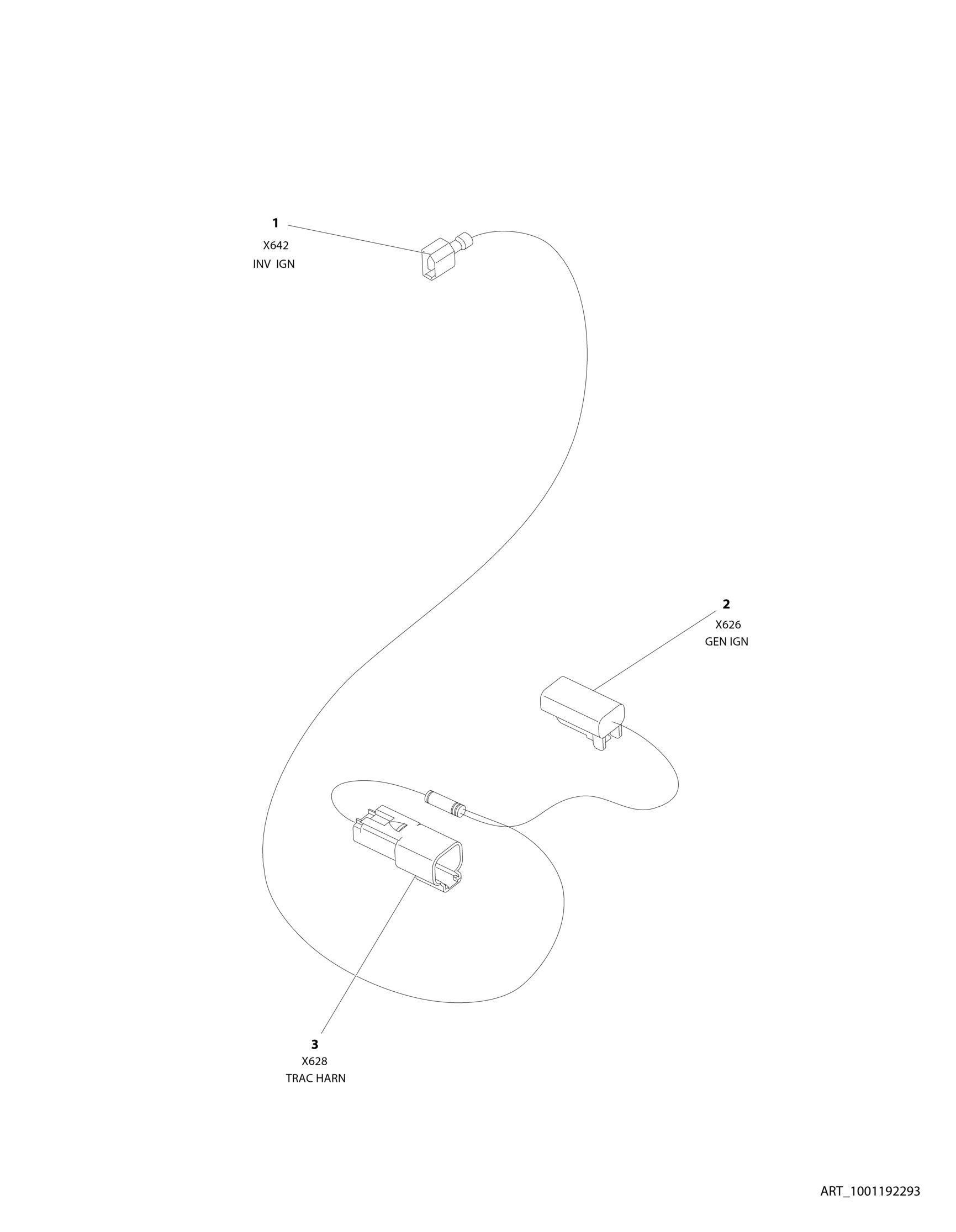

FIGURE 8 29. INVERTER IGNITION HARNESS

FIGURE 8-29. INVERTER IGNITION HARNESS

FIGURE 8-29. INVERTER IGNITION HARNESS

ITEM PART NUMBER QTY

DESCRIPTION

1001192293 Ref INVERTER IGNITION HARNESS 1 1001193545 1 Terminal 2 4460891 1 Plug, Male - 2 Position 2 4460465 1 Socket, Female 2 4460466 1 Plug, Terminal 3 4460897 1 Receptacle, Female - 2 Position 3 4460464 1 Pin, Male 3 4460466 1 Plug, Seal

REV

C
