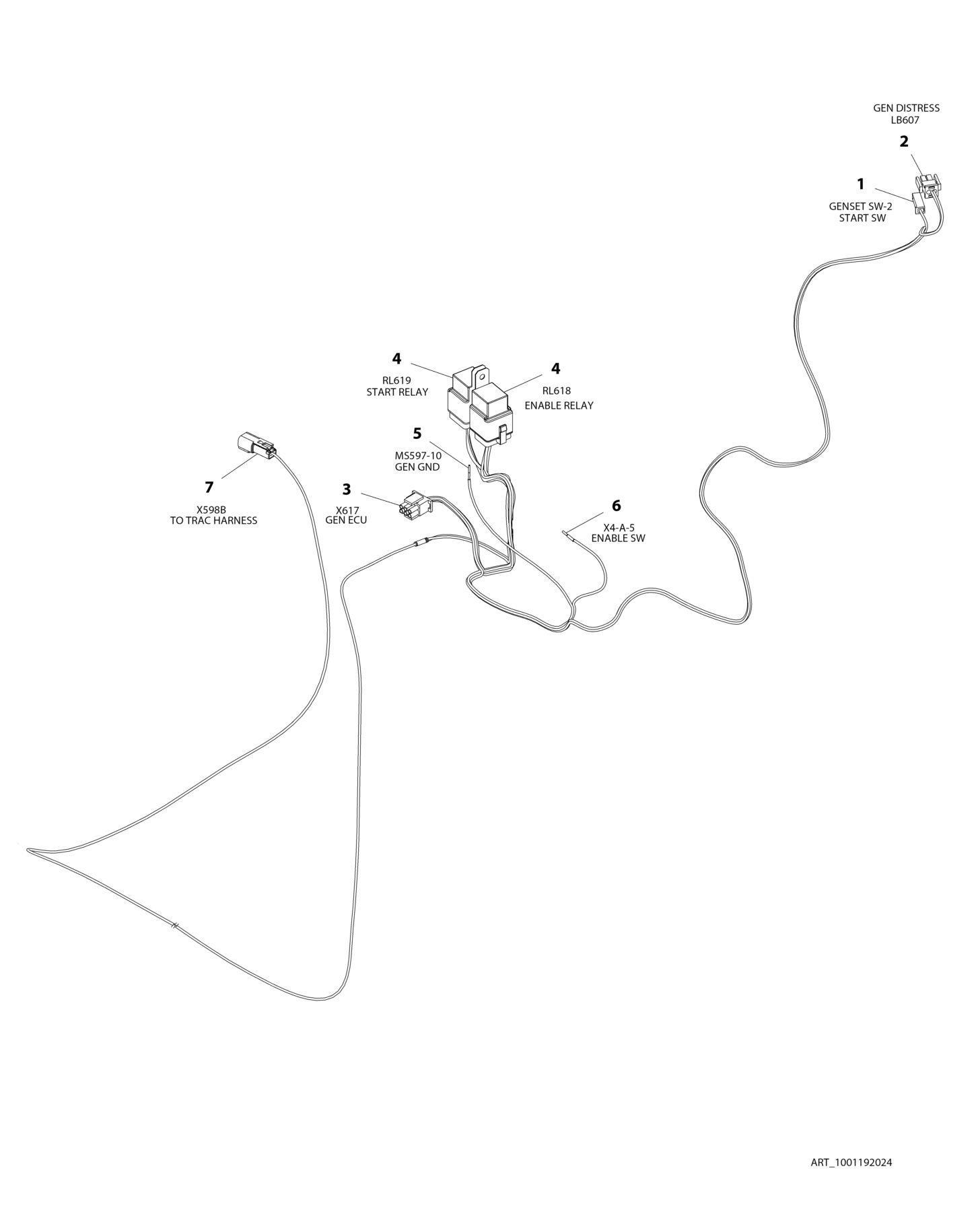

FIGURE 8 26. GENERATOR HARNESS

FIGURE 8-26. GENERATOR HARNESS

FIGURE 8-26. GENERATOR HARNESS

ITEM PART NUMBER QTY DESCRIPTION

1001192024 Ref GENERATOR HARNESS 1 4460260 1 Housing, Terminal 1 4460259 1 Terminal 2 4460320 1 Plug, Male - 2 Position 2 4460227 2 Pin, Male 3 4460225 1 Connector - 6 Position 3 4460267 5 Pin, Male 4 3740080 2 Relay 4 4460374 2 Plug, Relay 4 1001116733 8 Terminal 4 1001128128 2 Plug, Terminal 5 4460465 1 Socket, Female 6 4460464 1 Pin, Male 7 4460897 1 Receptacle, Female - 2 Position 7 4460464 1 Pin, Male 7 4460466 1 Plug, Terminal

REV

D
