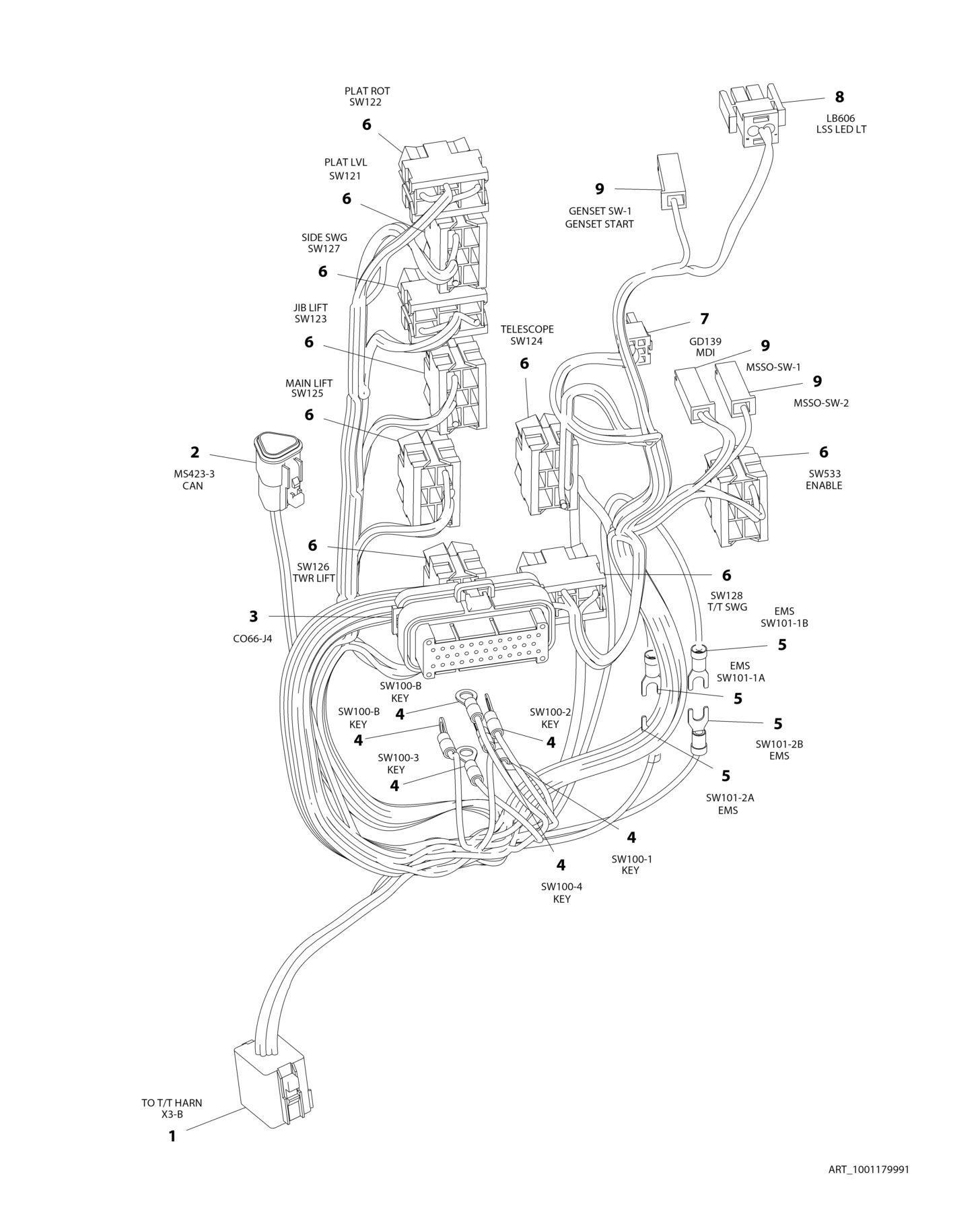

FIGURE 8 27. GROUND CONTROL PANEL HARNESS
FIGURE 8-27. GROUND CONTROL PANEL HARNESS
FIGURE 8-27. GROUND CONTROL PANEL HARNESS
ITEM PART NUMBER QTY
DESCRIPTION
1001179991 Ref GROUND CONTROL PANEL HARNESS 1 4460851 1 Connector - 8 Position 2 1001157890 1 Socket, Female 4 1001116692 1 Socket, Female 1 4460465 1 Socket, Female 1 4460466 1 Plug, Terminal 2 1001116812 1 Plug, Male - 3 Position 2 4460944 2 Socket, Female 2 4460466 1 Plug, Terminal 3 4460876 1 Connector - 35 Position 3 4460871 23 Socket, Female 3 4460905 12 Plug, Terminal 4 4460313 6 Terminal, Ring 5 4460806 4 Terminal, Fork 6 4460418 9 Connector - 6 Position 6 4460419 18 Terminal 6 1001159186 17 Terminal 7 4460868 1 Plug, Male - 6 Position 7 4460877 4 Terminal 8 4460320 1 Plug, Male - 2 Position 8 4460227 2 Pin, Male 9 4460260 3 Housing, Terminal 9 4460259 3 Terminal
REV
I
