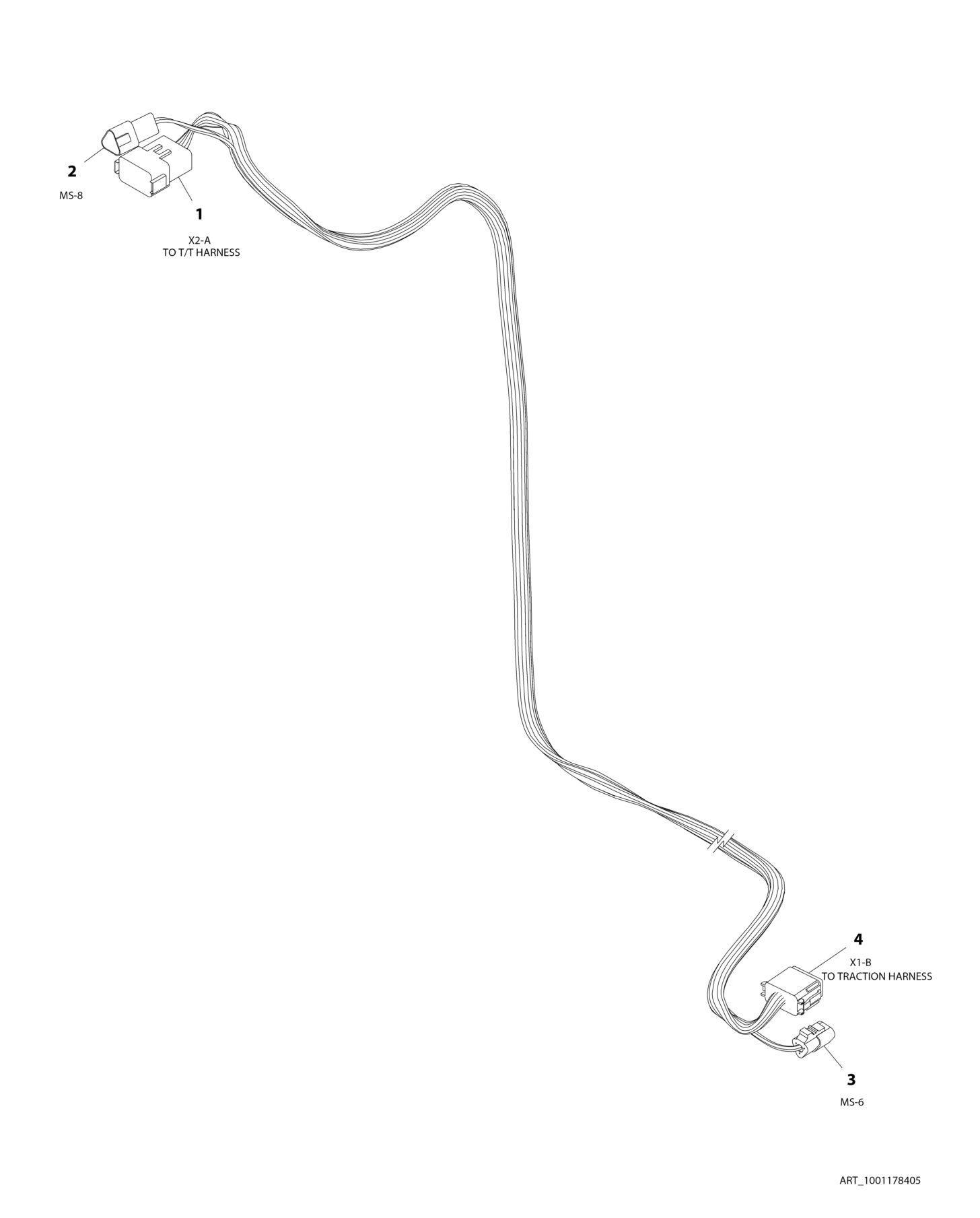

FIGURE 8 25. CHASSIS TO TURNTABLE HARNESS
FIGURE 8-25. CHASSIS TO TURNTABLE HARNESS
FIGURE 8-25. CHASSIS TO TURNTABLE HARNESS
ITEM PART NUMBER QTY
DESCRIPTION
1001178405 Ref CHASSIS TO TURNTABLE HARNESS 1 4460950 1 Connector - 12 Position 1 1001157891 4 Terminal 1 4460464 5 Pin, Male 1 4460941 1 Terminal 1 4460943 2 Pin, Male 2 1001144147 1 Receptacle, Female - 3 Position 2 4460943 3 Pin, Male 3 4460539 1 Plug, Male - 3 Position 3 4460944 3 Socket, Female 4 4460836 1 Connector - 12 Position 4 1001157890 4 Terminal 4 4460465 5 Socket, Female 4 4460942 1 Terminal 4 4460944 2 Socket, Female
REV
G
