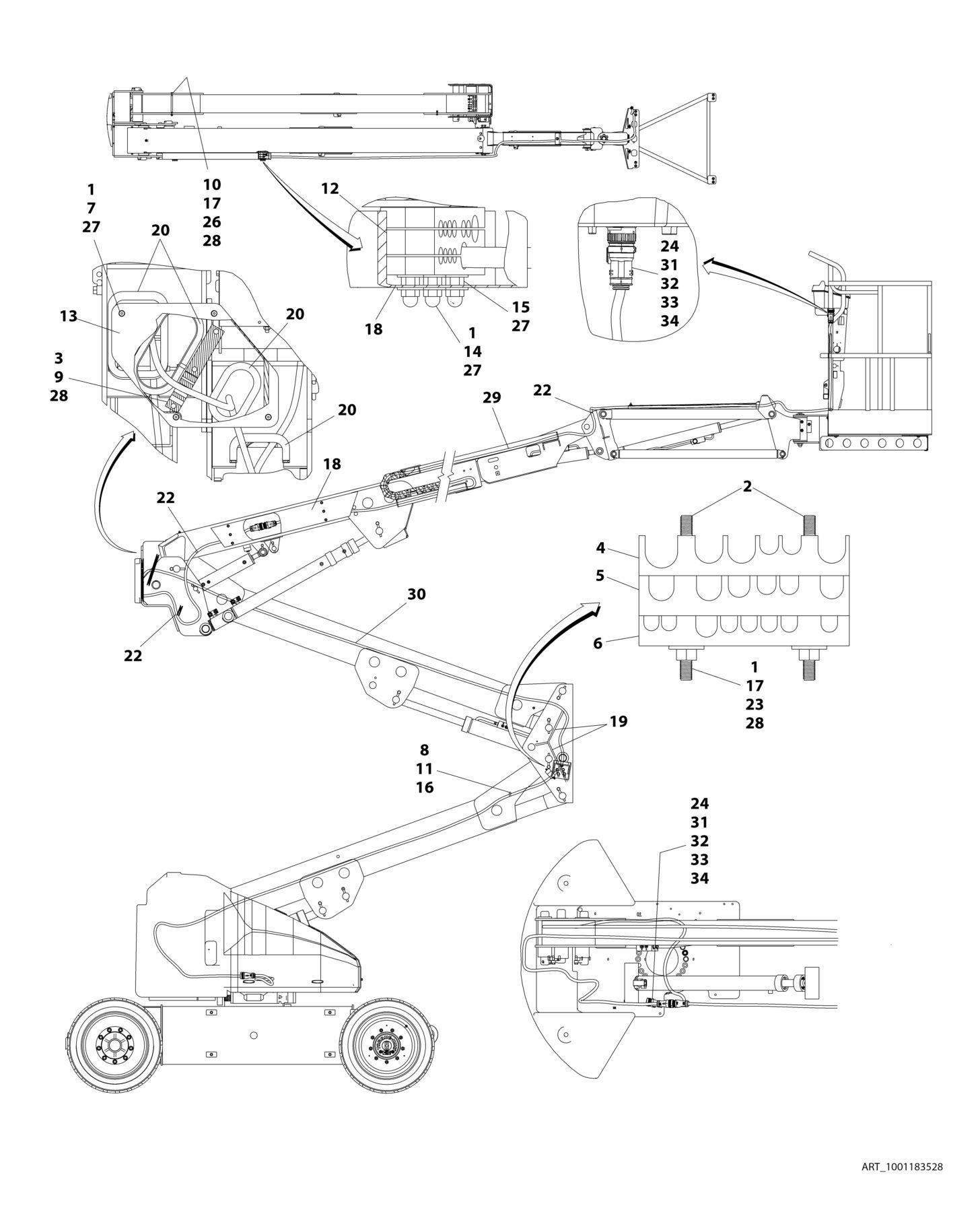

FIGURE 8 19. CABLES AND CLAMPS INSTALLATION E450AJ/M450AJ
ITEM PART NUMBER QTY
DESCRIPTION
1001183528 Ref CABLES AND CLAMPS INSTALLATION 1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 3 0561317 1 Block, Hose Clamp 4 0561384 1 Block, Hose Clamp 5 0561385 1 Block, Hose Clamp 6 0561386 1 Block, Hose Clamp 7 0630467 4 Capscrew, Button 5-16 x 1/2 8 0641410 1 Bolt 1/4 x 1-1/4 9 0641514 3 Bolt 5/16 x 1-3/4 10 0641560 1 Bolt 5/16 x 7-1/2 11 1320043 1 Clamp, Cable 12 1320260 2 Block, Hose Clamp 13 1670697 1 Cover, Hose 14 3300151 6 Nut 1/4 15 3311401 6 Nut 1/4 16 3311405 1 Nut 1/4 17 3311505 3 Nut 5/16 18 3571462 1 Shield 19 4060805 1.5 ft Trim, Flex /0.5m 20 4060808 6 ft /1.8m Trim, Flex 21 4100067 AR Sleeve, Hose (Not Shown) 22 4240099 AR Tie, Strap 23 4300140 2 Stud 5/16 x 3-5/8 24 1001188292 2 Connector - 19 Position 26 4566243 1 Roller 27 4751400 16 Washer 1/4 28 4751500 6 Washer 5/16 29 1001183879 1 Harness Assembly - Upper Boom (See Separate Breakdown in this Section) 30 1001183878 1 Harness Assembly - Lower Boom (See Separate Breakdown in this Section) 31 4240033 AR Tie-Strap 32 4460466 8 Terminal 33 1001188291 2 Connector, Backshell 34 1001188354 2 Grommet
REV
E
