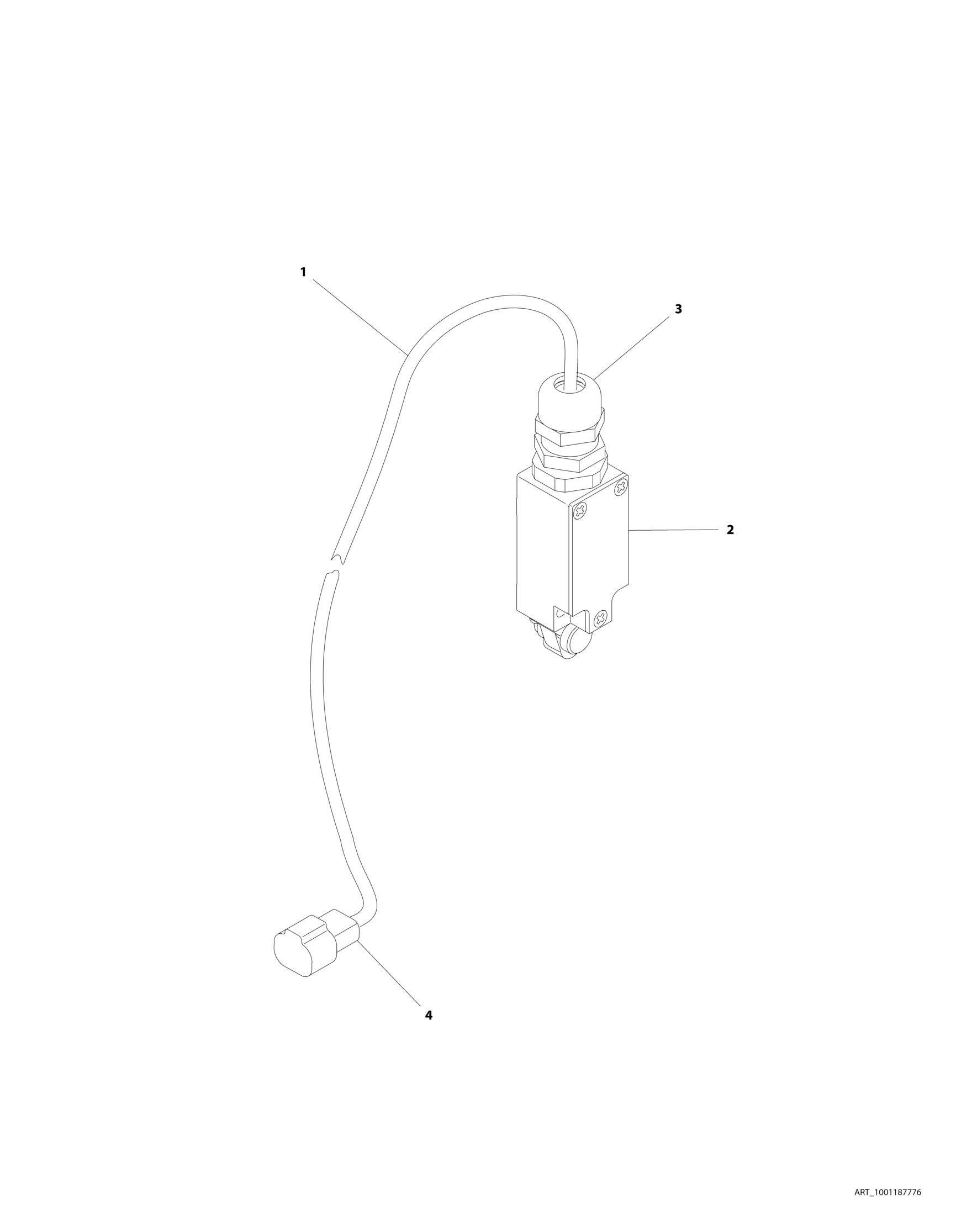

FIGURE 8 15. BOOM LIMIT SWITCH HARNESS LOWER

FIGURE 8-15. BOOM LIMIT SWITCH HARNESS - LOWER

FIGURE 8-15. BOOM LIMIT SWITCH HARNESS - LOWER

ITEM PART NUMBER QTY

DESCRIPTION

1001187776 Ref BOOM LIMIT SWITCH HARNESS - LOWER 1 1060341 14 ft /4.3m Cable, Electrical - 16/2

2 4360548 1 Switch, Limit 3 4460968 1 Connector, Strain Relief 4 4460897 1 Connector- 2 Position 4 4460464 2 Pin, Male

REV

D
