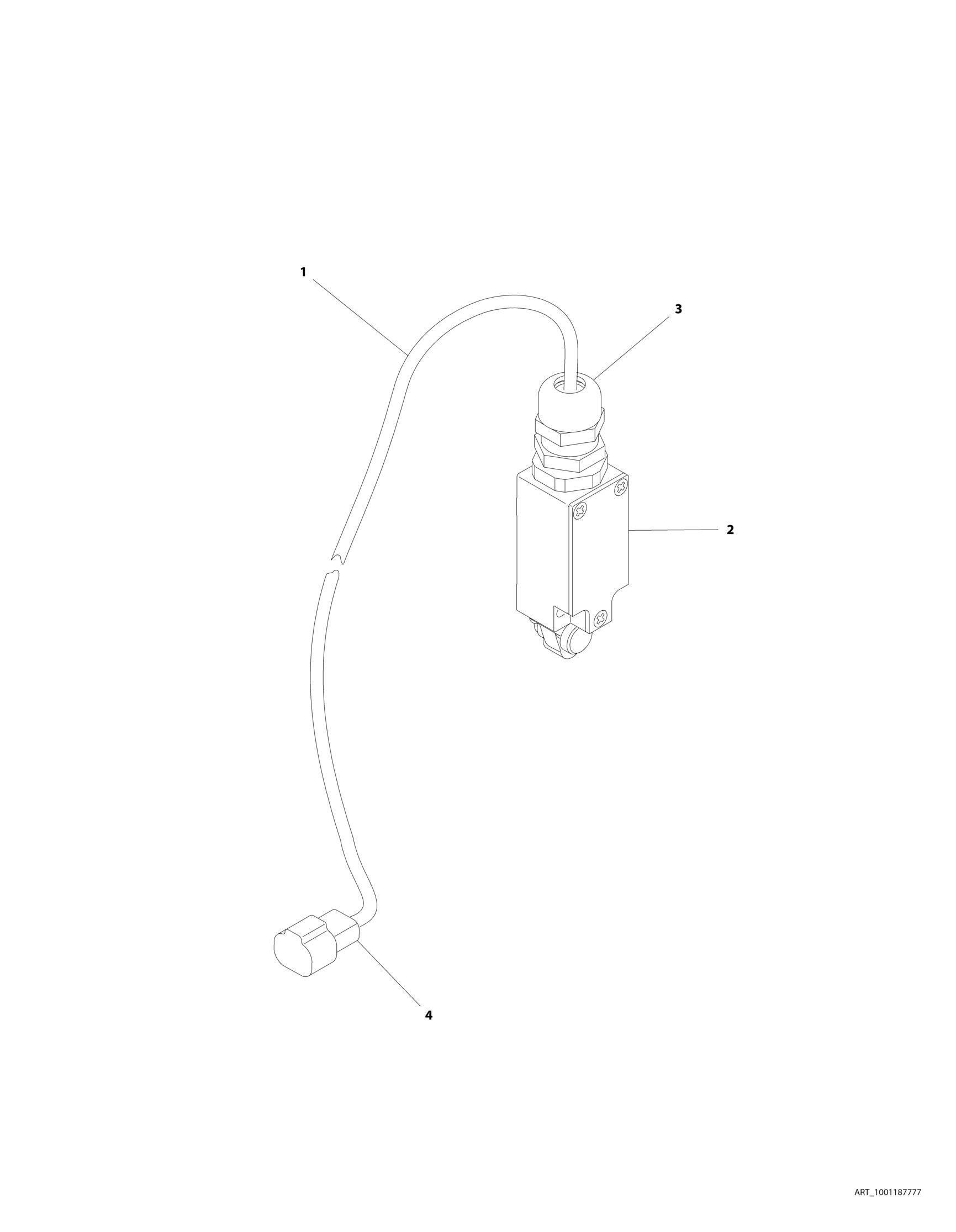

FIGURE 8 16. BOOM LIMIT SWITCH HARNESS UPPER

FIGURE 8-16. BOOM LIMIT SWITCH HARNESS - UPPER

FIGURE 8-16. BOOM LIMIT SWITCH HARNESS - UPPER

ITEM PART NUMBER QTY

DESCRIPTION

1001187777 Ref BOOM LIMIT SWITCH HARNESS - UPPER 1 1060341 29 ft /8.8m Cable, Electrical - 16/2

2 4360548 1 Switch, Limit 3 4460968 1 Connector, Strain Relief 4 4460897 1 Connector - 2 Position 4 4460464 2 Pin, Male

REV

D
