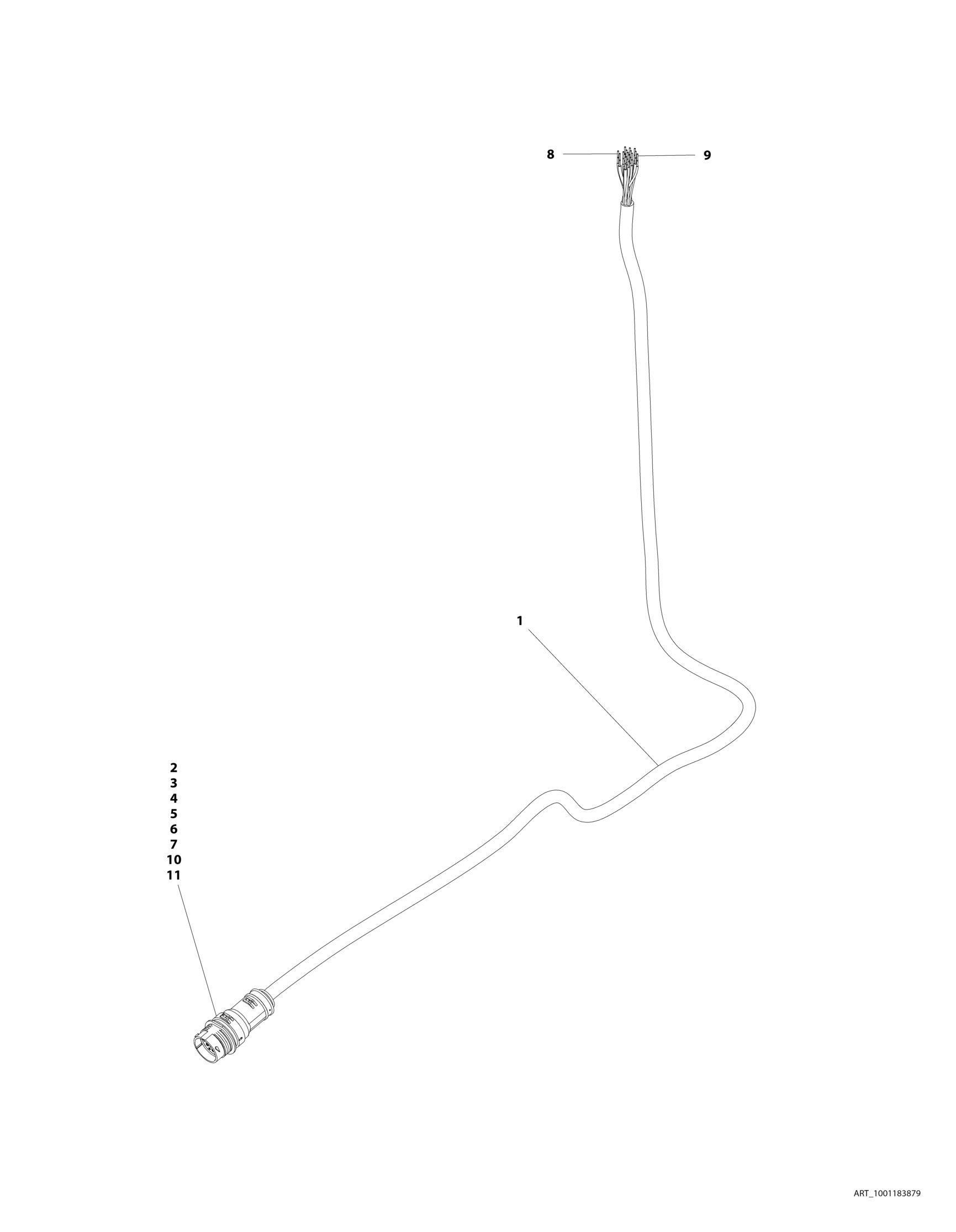

FIGURE 8 14. BOOM CABLE UPPER E450AJ/M450AJ
FIGURE 8-14. BOOM CABLE - UPPER - E450AJ/M450AJ
FIGURE 8-14. BOOM CABLE - UPPER - E450AJ/M450AJ
ITEM PART NUMBER QTY
1001183879 Ref BOOM CABLE - UPPER 1 1060896 28 ft /8.5m Cable, Electrical
2 1001188293 1 Connector - 19 Position 3 1001188291 1 Connector, Backshell 4 4460465 11 Socket, Female 5 4460509 4 Socket, Female 6 4460466 4 Plug, Seal 7 2820118 6.5 in Insulator, Tubing /16.5cm 8 4460464 11 Pin, Male 9 4460508 4 Pin, Male 10 1001188354 1 Grommet 11 4240033 2 Tie-Strap
DESCRIPTION REV
E
