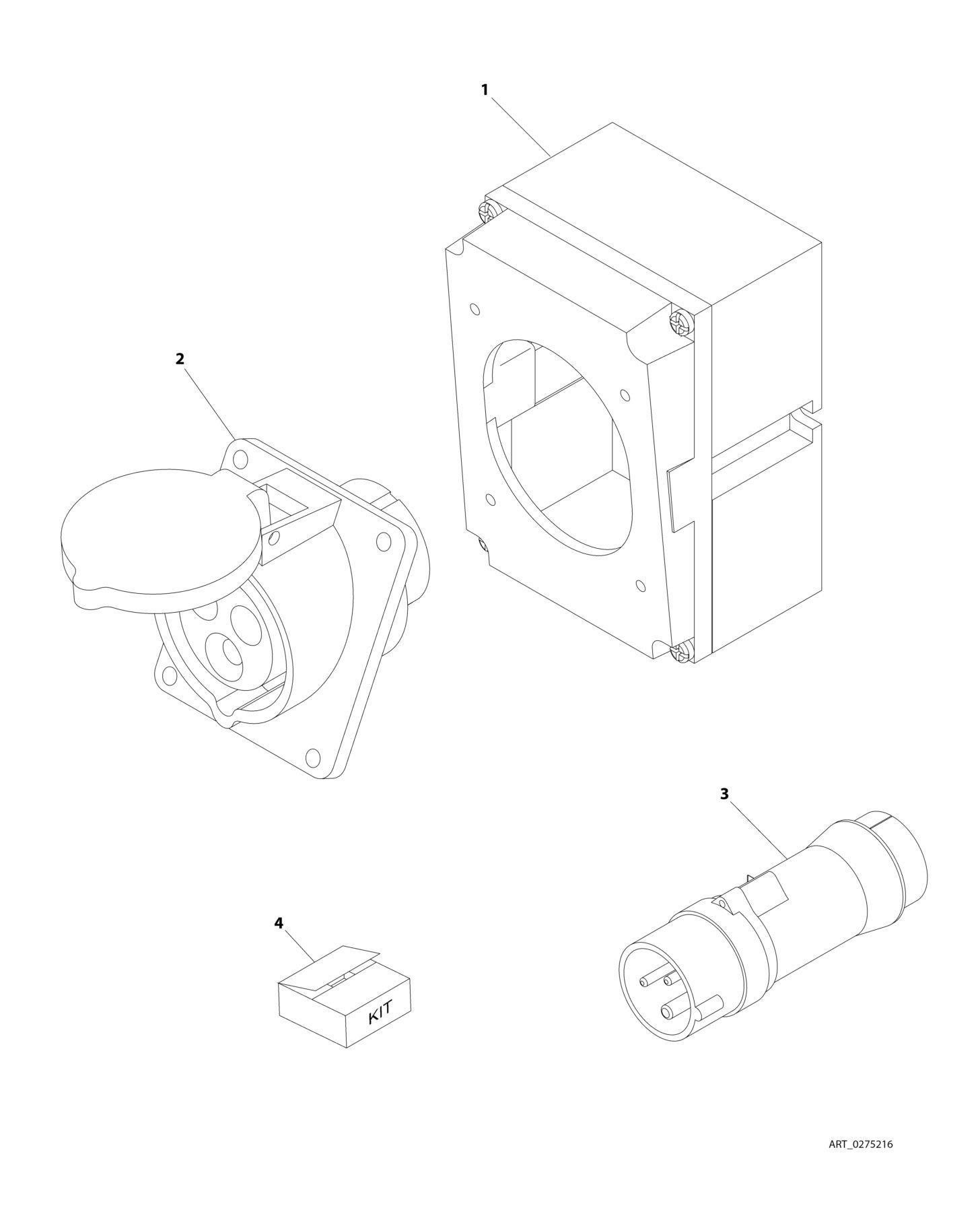

FIGURE 8 8. AC PLUGS AND SOCKETS INSTALLATION IEC 60309 YELLOW (CE SPEC
ITEM PART NUMBER QTY
DESCRIPTION
0275216 Ref RECEPTACLE BOX KIT - 110V IEC YELLOW 1 0861781 1 Box, Switch 2 4461198 1 Receptacle 3 4461196 1 Plug, Male 4 1001100341 1 Plug and Socket Kit (Includes Items 1-3 and Female Plug p/n 4461197)
REV
1
