FIGURE 8 6. AC PLUGS AND SOCKETS INSTALLATION CEE7 SIDE GROUND 2 X 4 BOX (CE SPEC

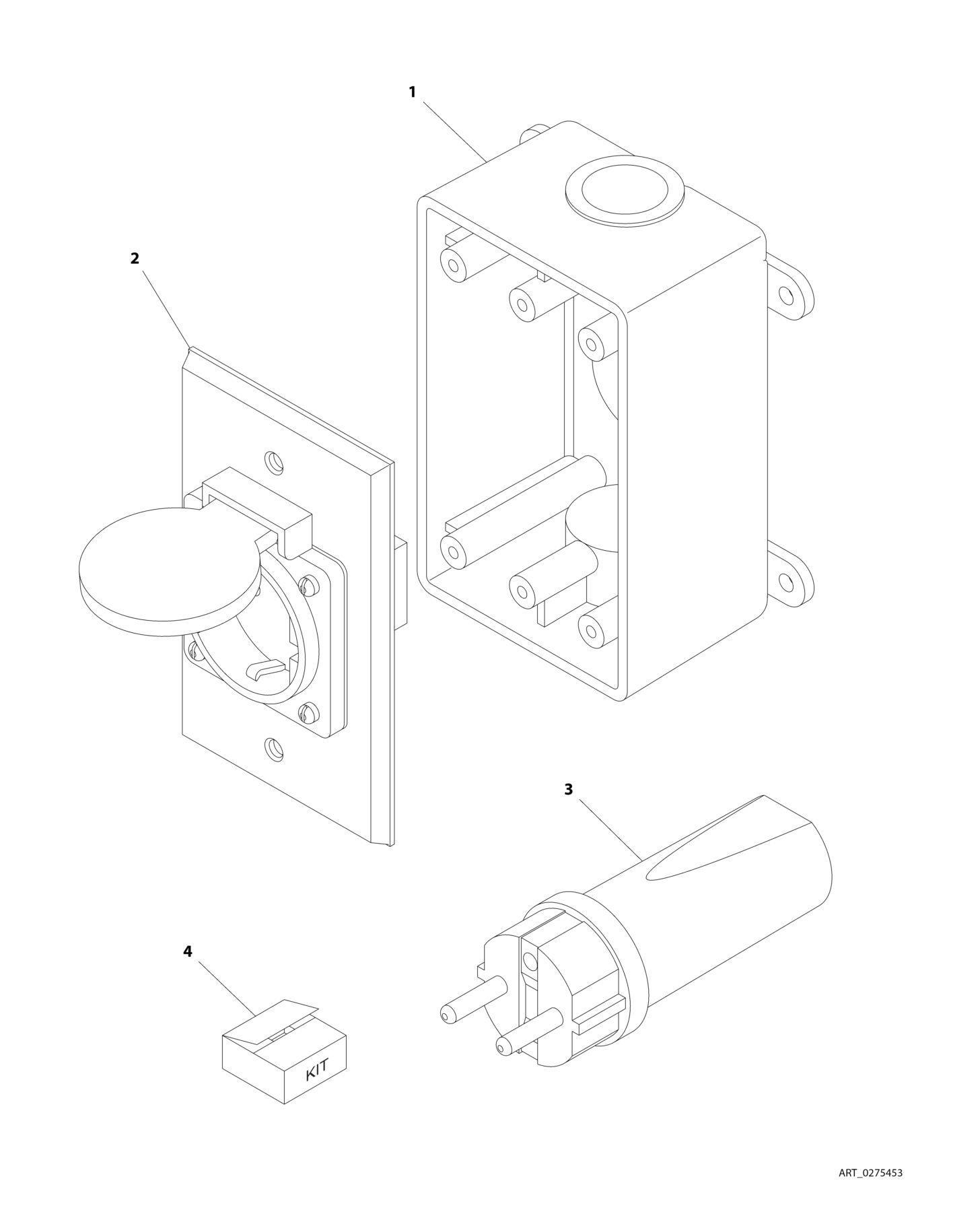

FIGURE 8-6. AC PLUGS AND SOCKETS INSTALLATION - CEE7 SIDE GROUND - 2 X 4 BOX (CE SPEC)

FIGURE 8-6. AC PLUGS AND SOCKETS INSTALLATION - CEE7 SIDE GROUND - 2 X 4 BOX (CE SPEC)

ITEM PART NUMBER QTY

DESCRIPTION

0275453 Ref RECEPTACLE BOX KIT - 220V CEE7 SIDE GROUND 1 0861731 1 Box, Switch 2 4461245 1 Receptacle 3 4461205 1 Plug, Male 4 1001100347 1 Plug and Socket Kit (Includes Items 1-3 and Female Plug p/n 4461206)

REV

1
