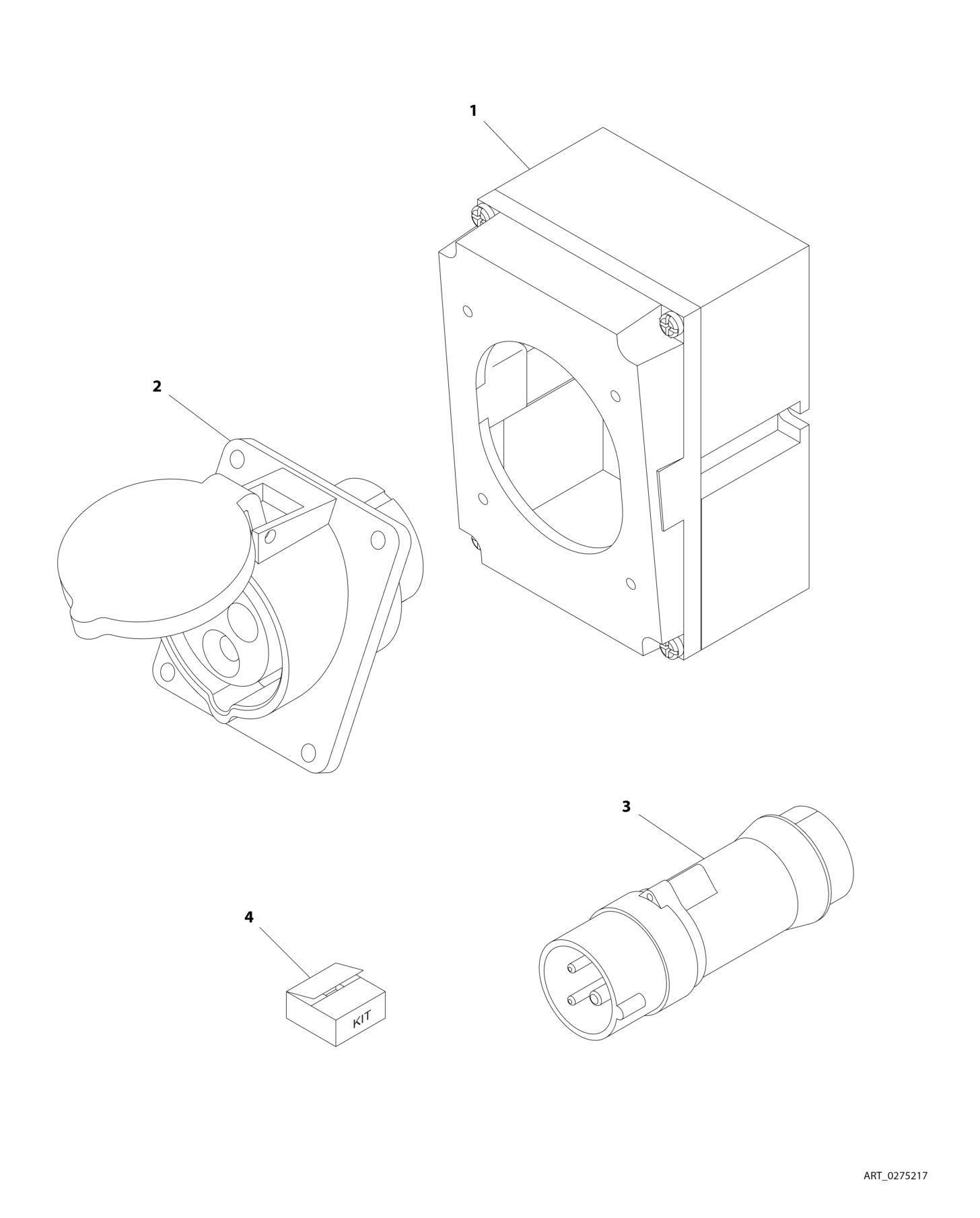

FIGURE 8 7. AC PLUGS AND SOCKETS INSTALLATION IEC 60309 BLUE (CE SPEC
ITEM PART NUMBER QTY
DESCRIPTION
0275217 Ref RECEPTACLE BOX KIT - 220V IEC BLUE 1 0861781 1 Box, Switch 2 4461201 1 Receptacle 3 4461199 1 Plug, Male 4 1001100342 1 Plug and Socket Kit (Includes Items 1-3 and Female Plug p/n 4461200)
REV
1
