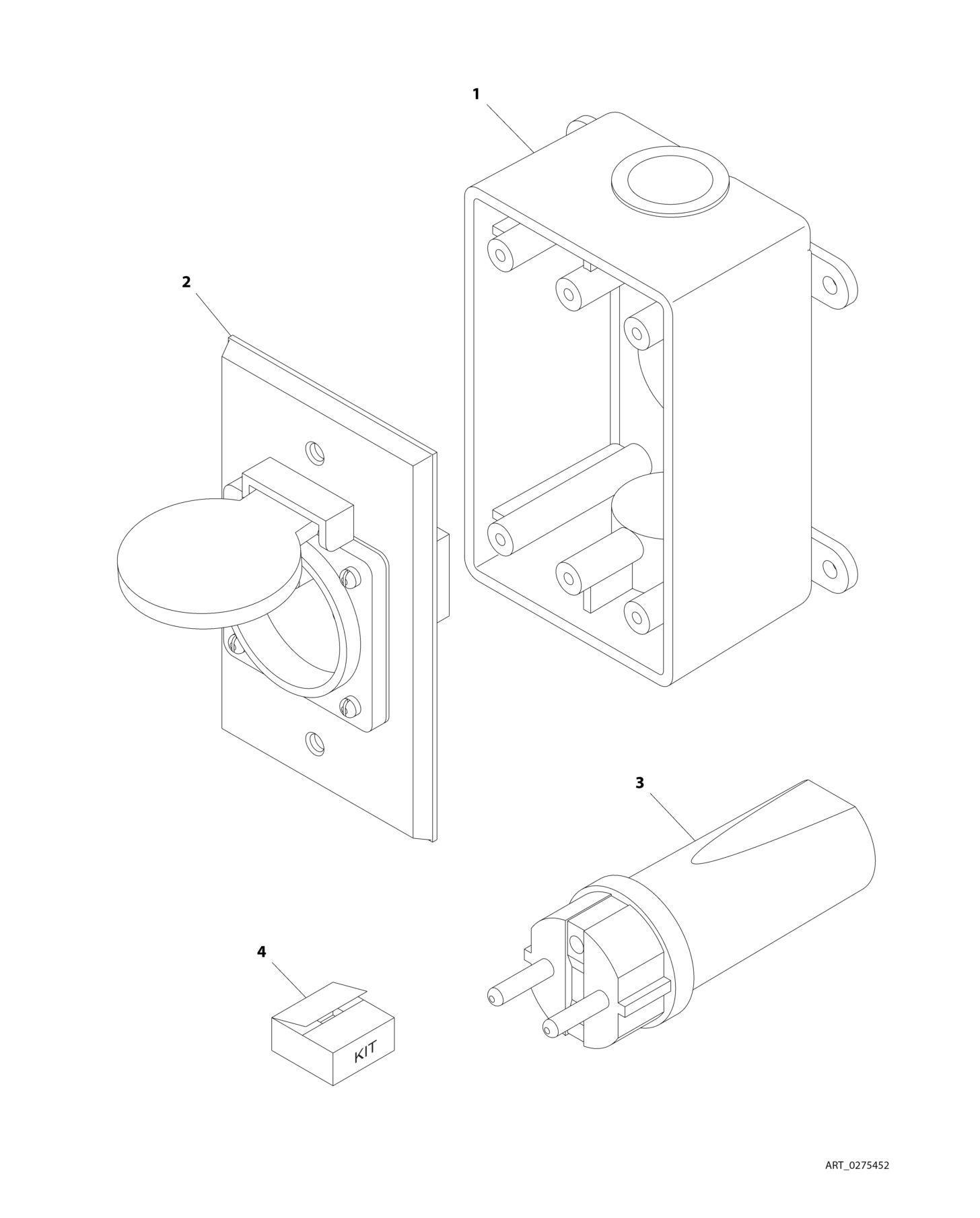

FIGURE 8 5. AC PLUGS AND SOCKETS INSTALLATION CEE7 POST GROUND 2 X 4 BOX (CE SPEC

FIGURE 8-5. AC PLUGS AND SOCKETS INSTALLATION - CEE7 POST GROUND - 2 X 4 BOX (CE SPEC)

FIGURE 8-5. AC PLUGS AND SOCKETS INSTALLATION - CEE7 POST GROUND - 2 X 4 BOX (CE SPEC)

ITEM PART NUMBER QTY

DESCRIPTION

0275452 Ref RECEPTACLE BOX KIT - 220V CEE7 POST GROUND 1 0861731 1 Box, Switch 2 4461244 1 Receptacle 3 4461205 1 Plug, Male 4 1001100345 1 Plug and Socket Kit (Includes Items 1-3 and Female Plug p/n 4461206)

REV

C
