FIGURE 8 2. AC PLUGS AND SOCKETS INSTALLATION AFSINT 107 2 01 KEYED GROUND 2 X 4 BOX (CE SPEC

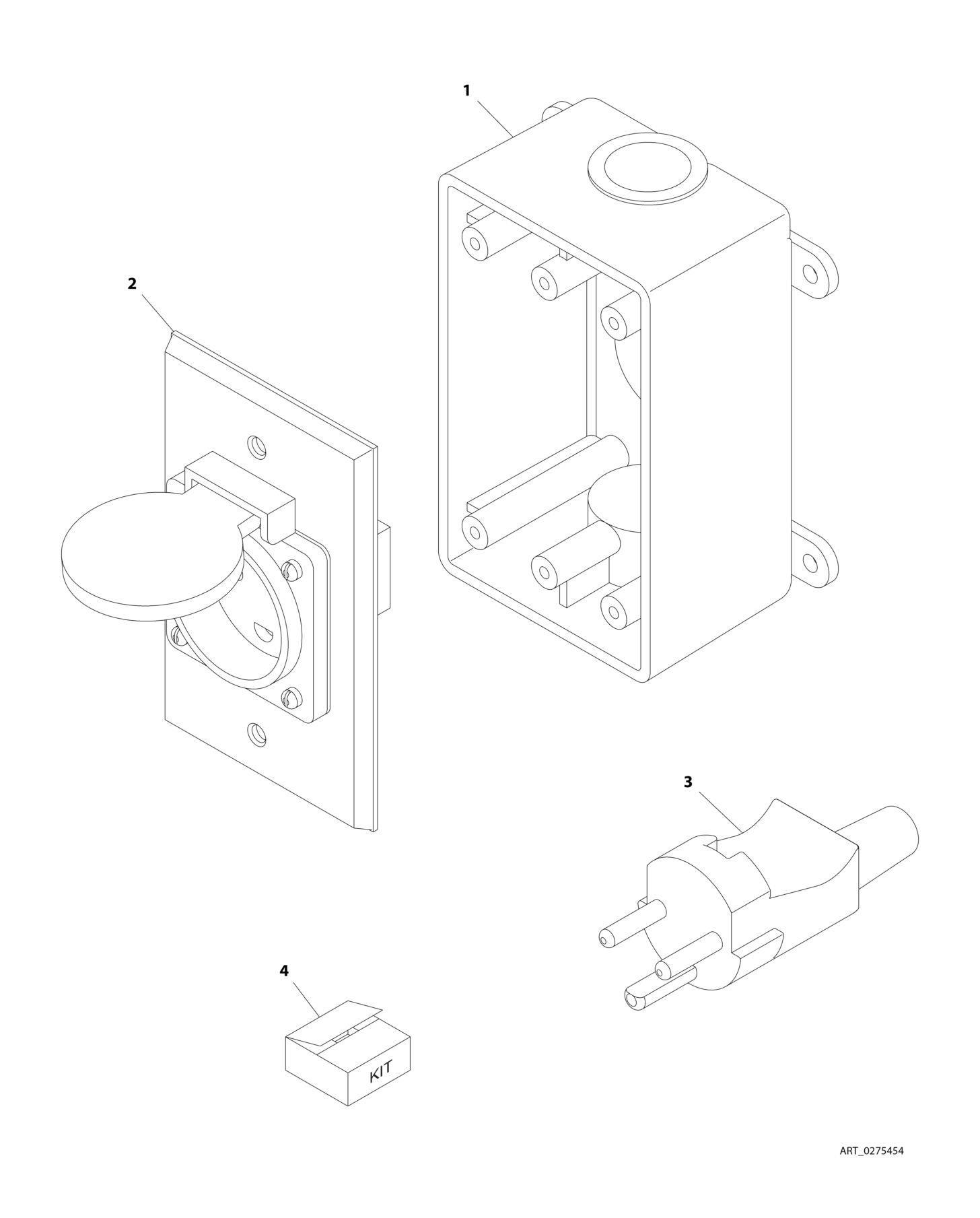

FIGURE 8-2. AC PLUGS AND SOCKETS INSTALLATION - AFSINT 107-2-01 KEYED GROUND - 2 X 4 BOX (CE SPEC)

FIGURE 8-2. AC PLUGS AND SOCKETS INSTALLATION - AFSINT 107-2-01 KEYED GROUND - 2 X 4 BOX (CE SPEC)

ITEM PART NUMBER QTY

DESCRIPTION

0275454 Ref RECEPTACLE BOX KIT - 220V AFSINT 107 1 0861731 1 Box, Switch 2 4461246 1 Receptacle 3 4461249 1 Plug, Male 4 1001100346 1 Plug and Socket Kit (Includes Items 1-3 and Female Plug p/n 4461250)

REV

1
