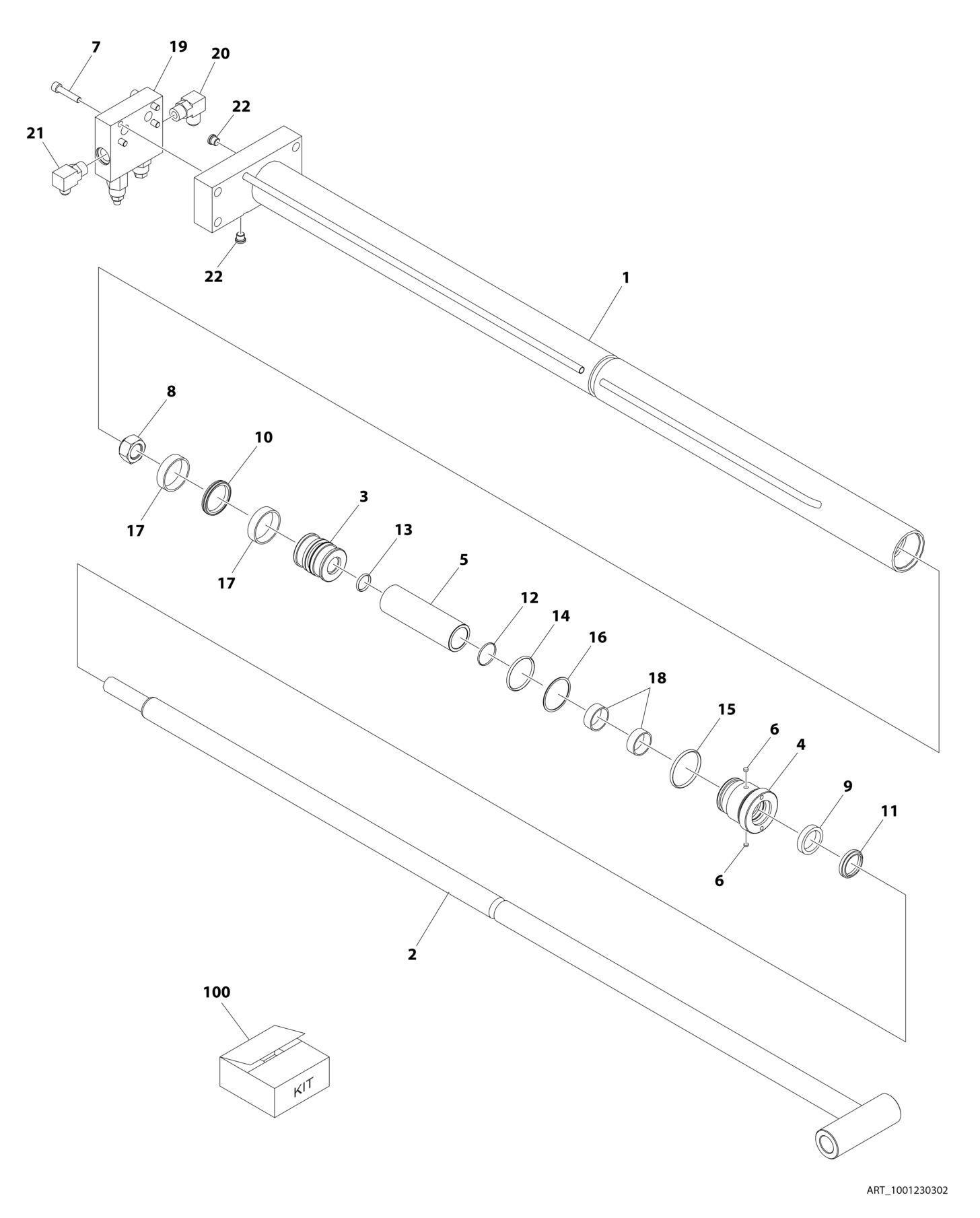

FIGURE 6 22. TELESCOPE CYLINDER ASSEMBLY E450AJ/M450AJ
ITEM PART NUMBER QTY
DESCRIPTION
1001230302 Ref TELESCOPE CYLINDER ASSEMBLY Ref Note: Original Cylinder may have been replaced with Service Replacement. Identify PN Stamped on Cylinder Before Ordering Parts. 1 See Note NSS Barrel (Note: Not Available for Purchase) 2 70006902 1 Rod Assembly 3 70006903 1 Piston 4 70006905 1 Gland 5 70006906 1 Stop Tube 6 70003636 2 Locking Piece (Insert) 7 0641512 4 Hex Socket Cap Screw 8 70004213 1 Metal Lock Nut 9 See Note NSS Rod Seal (Note: Purchase p/n 7006907) 10 See Note NSS Stopt (Note: Purchase p/n 7006907) 11 See Note NSS Wiper (Note: Purchase p/n 7006907) 12 See Note NSS O-Ring (Note: Purchase p/n 7006907) 13 See Note NSS O-Ring (Note: Purchase p/n 7006907) 14 See Note NSS O-Ring (Note: Purchase p/n 7006907) 15 See Note NSS O-Ring (Note: Purchase p/n 7006907) 16 See Note NSS Backup (Note: Purchase p/n 7006907) 17 See Note NSS Tube Wearband (Note: Purchase p/n 7006907) 18 See Note NSS Rod Wearband (Note: Purchase p/n 7006907) 19 4640807 1 Counterbalance Valve Assembly (See Separate Breakdown in this Section) 20 2220596 1 Transition Joint 21 2220628 1 Transition Joint 22 2220883 2 Hex Socket Head Plug 100 70006907 1 Seal Kit (Includes Items 9-18)
REV
A
