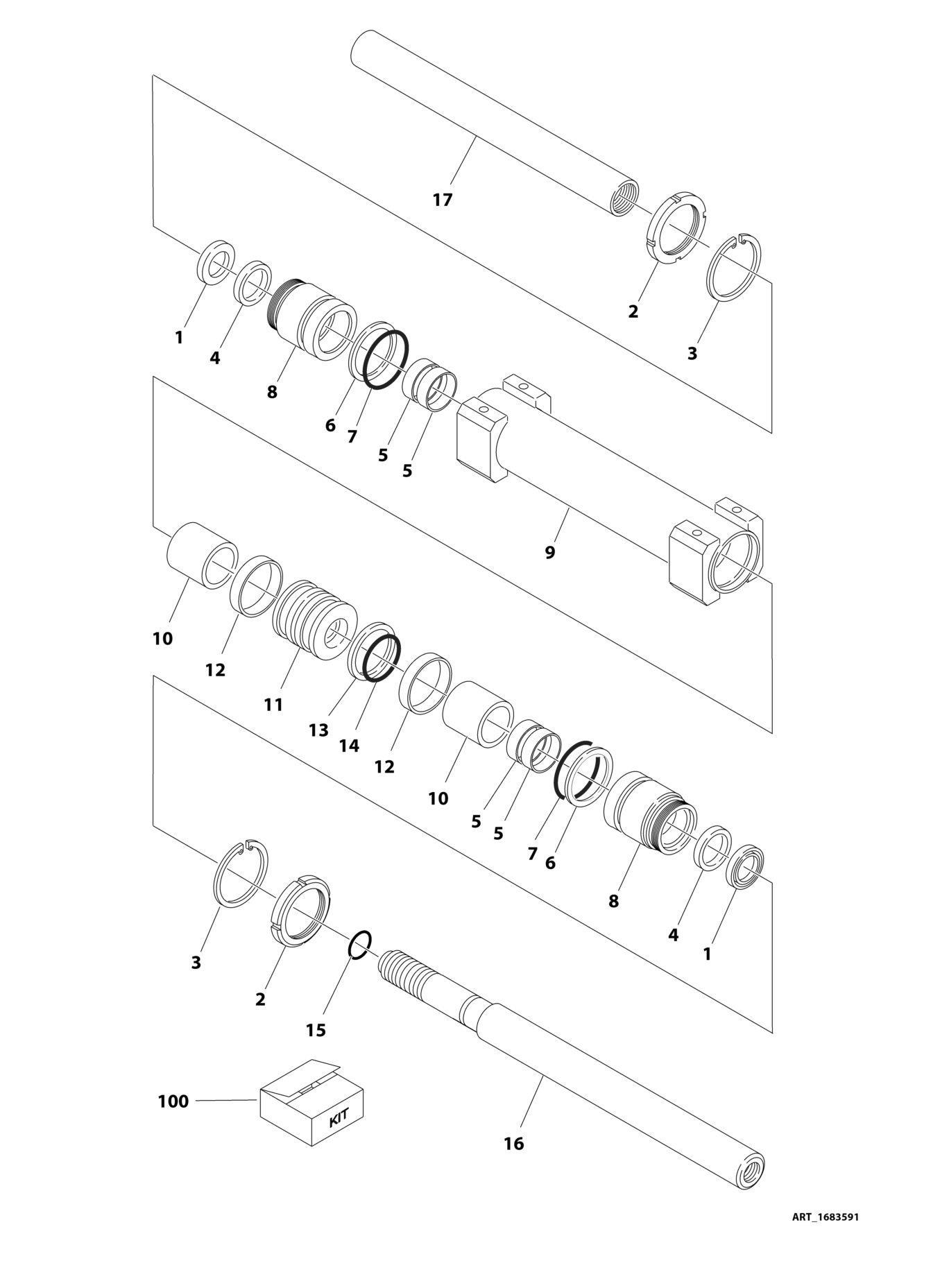

FIGURE 6 20. STEER CYLINDER ASSEMBLY (USA BUILT MACHINES
ITEM PART NUMBER QTY
DESCRIPTION
1683591 Ref STEER CYLINDER ASSEMBLY 1 See Note 2 Wiper (Note: Use p/n 7017246) 2 7001630 2 Nut, Spanner 3 7017247 2 Ring, Retaining 4 See Note 2 Seal, Lip (Note: Use p/n 7017246) 5 See Note 4 Ring, Wear (Note: Use p/n 7017246) 6 See Note 2 Ring, Back-Up (Note: Use p/n 7017246) 7 See Note 2 O-Ring (Note: Use p/n 7017246) 8 7017248 2 Guide 9 70003341 1 Barrel 10 7017249 2 Tube 11 7017250 1 Piston 12 See Note 2 Ring, Wear (Note: Use p/n 7017246) 13 See Note 1 Seal (Note: Use p/n 7017246) 14 See Note 1 O-Ring (Note: Use p/n 7017246) 15 See Note 1 O-Ring (Note: Use p/n 7017246) 16 7017251 1 Rod - Male End 17 7017252 1 Rod - Female End 100 7017246 1 Seal Kit (Includes Items 1,4-7 & 12-15)
REV
B
