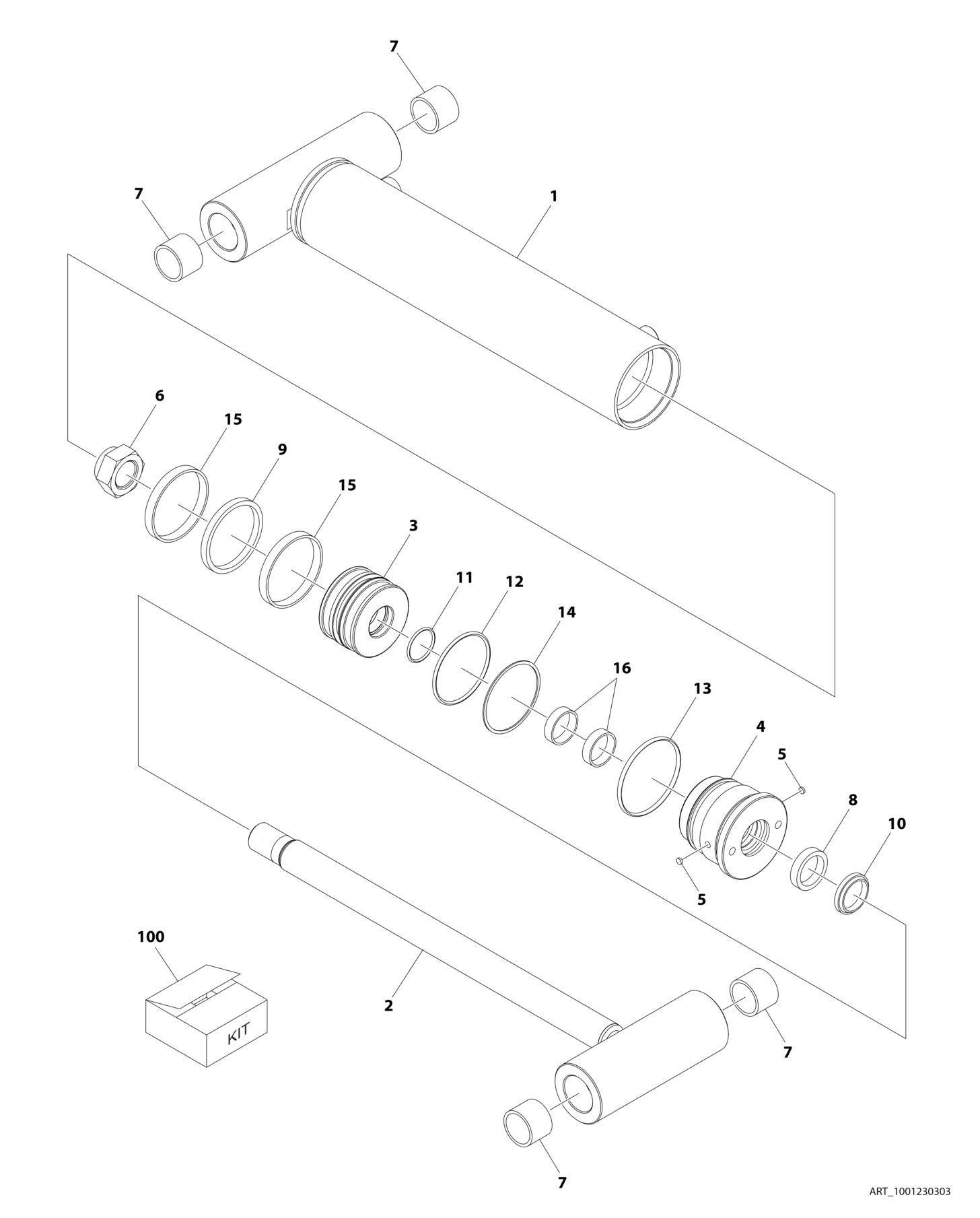

FIGURE 6 19. MASTER CYLINDER ASSEMBLY E450AJ (CHINA BUILT MACHINES
ITEM PART NUMBER QTY
DESCRIPTION
1001230303 Ref MASTER CYLINDER ASSEMBLY Ref Note: Original Cylinder may have been replaced with Service Replacement. Identify PN Stamped on Cylinder Before Ordering Parts. 1 See Note NSS Barrel (Note: Not Available for Purchase) 2 70006908 1 Rod Assembly 3 70006909 1 Piston 4 70006910 1 Gland 5 70003636 2 Locking Piece (Insert) 6 70006878 1 Metal Lock Nut 7 0961951 4 Self-Lubricating Composite Bearing 8 See Note NSS Rod Seal (Note: Purchase p/n 70006911) 9 See Note NSS Stopt (Note: Purchase p/n 70006911) 10 See Note NSS Wiper (Note: Purchase p/n 70006911) 11 See Note NSS O-Ring (Note: Purchase p/n 70006911) 12 See Note NSS O-Ring (Note: Purchase p/n 70006911) 13 See Note NSS O-Ring (Note: Purchase p/n 70006911) 14 See Note NSS Backup (Note: Purchase p/n 70006911) 15 See Note NSS Tube Wearband (Note: Purchase p/n 70006911) 16 See Note NSS Rod Wearband (Note: Purchase p/n 70006911) 100 70006911 1 Seal Kit (Includes Items 8-16)
REV
A
