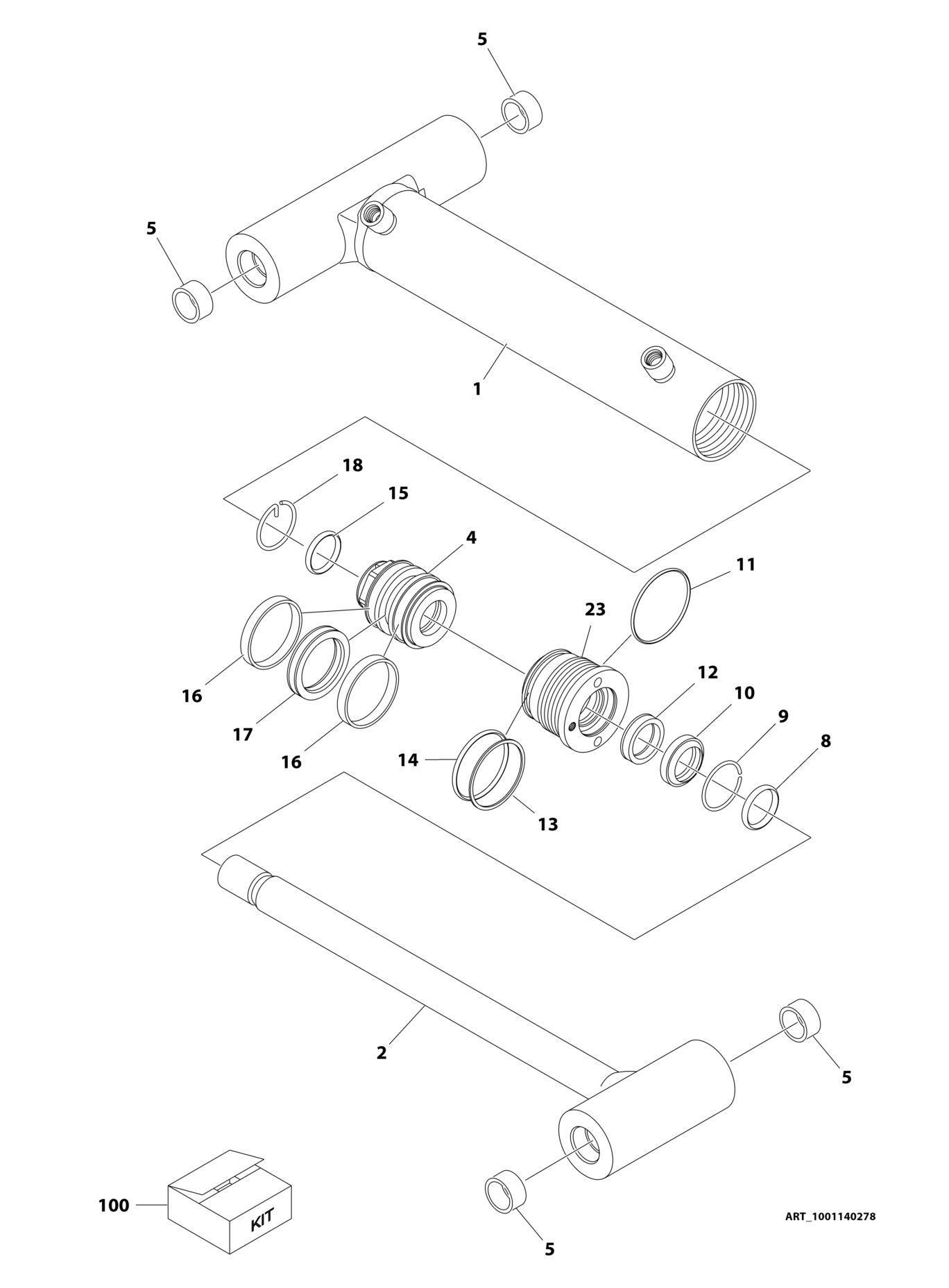

FIGURE 6 18. MASTER CYLINDER ASSEMBLY E450AJ/M450AJ (USA BUILT MACHINES
ITEM PART NUMBER QTY
DESCRIPTION
1001140278 Ref MASTER CYLINDER ASSEMBLY Ref Note: Original Cylinder may have been replaced with Service Replacement. Identify PN Stamped on Cylinder Before Ordering Parts. 1 70003843 1 Barrel 2 70003844 1 Rod 4 70003819 1 Piston 5 0961951 4 Bushing 8 7026084 1 O-Ring 9 70002217 1 Ring, Retaining 10 See Note NSS Wiper, Rod (Note: Use p/n 70003845) 11 See Note NSS O-Ring (Note: Use p/n 70003845) 12 See Note NSS Seal, Rod (Note: Use p/n 70003845) 13 See Note NSS Ring, Back-Up (Note: Use p/n 70003845) 14 See Note NSS O-Ring (Note: Use p/n 70003845) 15 See Note NSS O-Ring (Note: Use p/n 70003845) 16 See Note NSS Ring, Wear (Note: Use p/n 70003845) 17 See Note NSS Seal, Piston (Note: Use p/n 70003845) 18 70002216 1 Retainer 23 7026082 1 Head 100 70003845 1 Seal Kit (Includes Items 10-17)
REV
A
