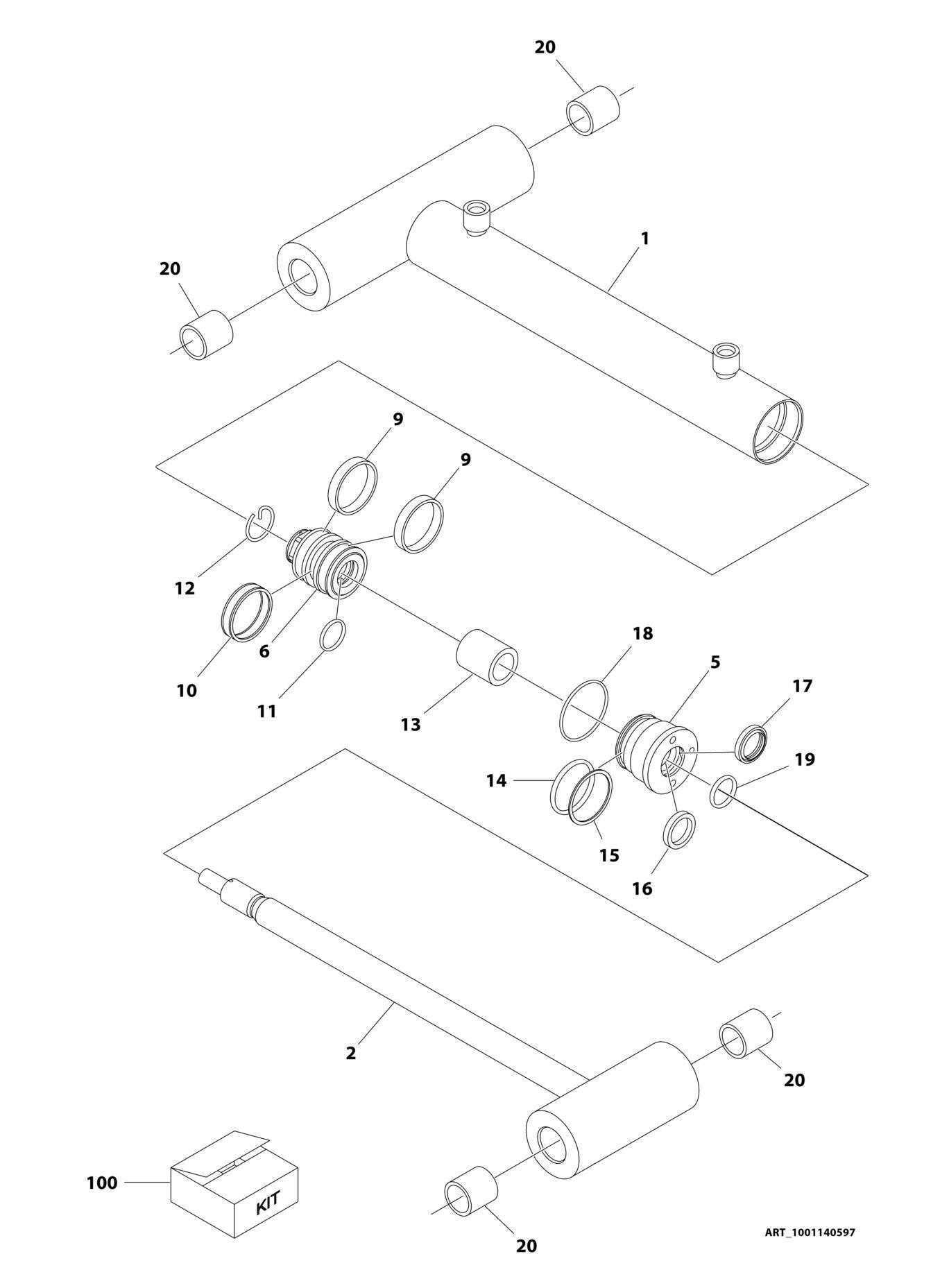

FIGURE 6 17. MASTER CYLINDER ASSEMBLY E450A
FIGURE 6-17. MASTER CYLINDER ASSEMBLY - E450A
FIGURE 6-17. MASTER CYLINDER ASSEMBLY - E450A
ITEM PART NUMBER QTY
DESCRIPTION
1001140597 Ref MASTER CYLINDER ASSEMBLY 1 70004144 1 Barrel 2 70004145 1 Rod 5 70000739 1 Head 6 70004141 1 Piston 9 See Note NSS Ring, Wear (Note: Use p/n 70004130) 10 See Note NSS Seal, Piston (Note: Use p/n 70004130) 11 70023094 1 O-Ring 12 70004142 1 Retainer 13 70004143 1 Spacer 14 See Note NSS O-Ring (Note: Use p/n 70004130) 15 See Note NSS Ring, Back-Up (Note: Use p/n 70004130) 16 See Note NSS Seal, Rod (Note: Use p/n 70004130) 17 See Note NSS Wiper, Rod (Note: Use p/n 70004130) 18 See Note NSS O-Ring (Note: Use p/n 70004130) 19 See Note NSS O-Ring (Note: Use p/n 70004130) 20 0962356 4 Bushing 100 70004130 1 Seal Kit (Includes Items 9-11 & 14-18)
REV
A
