FIGURE 2 16. GROUND CONTROL BOX ELECTRICAL ASSEMBLY E450A (CE SPECS

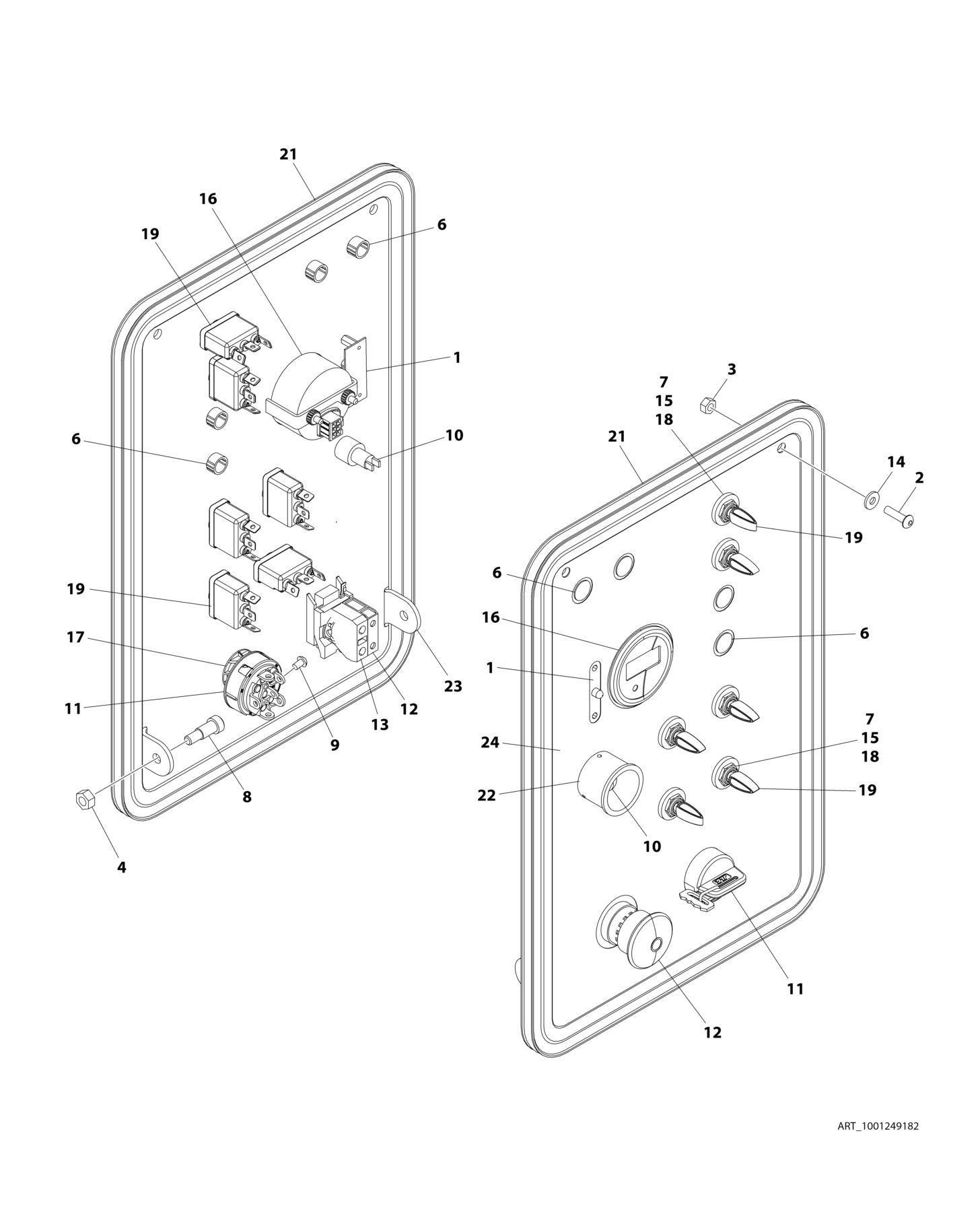

FIGURE 2-16. GROUND CONTROL BOX ELECTRICAL ASSEMBLY - E450A (CE SPECS)

FIGURE 2-16. GROUND CONTROL BOX ELECTRICAL ASSEMBLY - E450A (CE SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001249182 Ref GROUND CONTROL BOX ELECTRICAL ASSEMBLY 1 1001259489 1 P/C Board, Battery Charger 2 0630518 2 Bolt #10 x 3/4 3 3311011 2 Nut 4 3311405 2 Nut 1/4 6 3520028 4 Plug, Hole 1/2 7 3790012 6 O-Ring 8 3900187 2 Screw 9 3910804 6 Screw #8 x 1/4 10 4360387 1 Switch, Push Button 11 4360469 1 Keyswitch 11 2860030 1 Key, Replacement (Set of 2) 12 4360475 1 Switch, Emergency Stop 12 7020175 1 Cap, Mushroom Head 12 7020176 1 Block, Contact 13 4360476 1 Block, Contact 14 4740120 2 Washer 15 4740397 6 Spacer 16 1001109503 1 Gauge, Indicator 17 1001151393 1 Shim, .063 18 1001155044 6 Nut 15/32 19 1001155045 6 Switch, Toggle 21 1001166394 4 ft /1.2m Seal 22 1001176469 1 Shroud 23 1001188066 1 Panel, Ground Control 24 1001221452 1 Decal - Ground Control Lid

REV

C
