SPECS

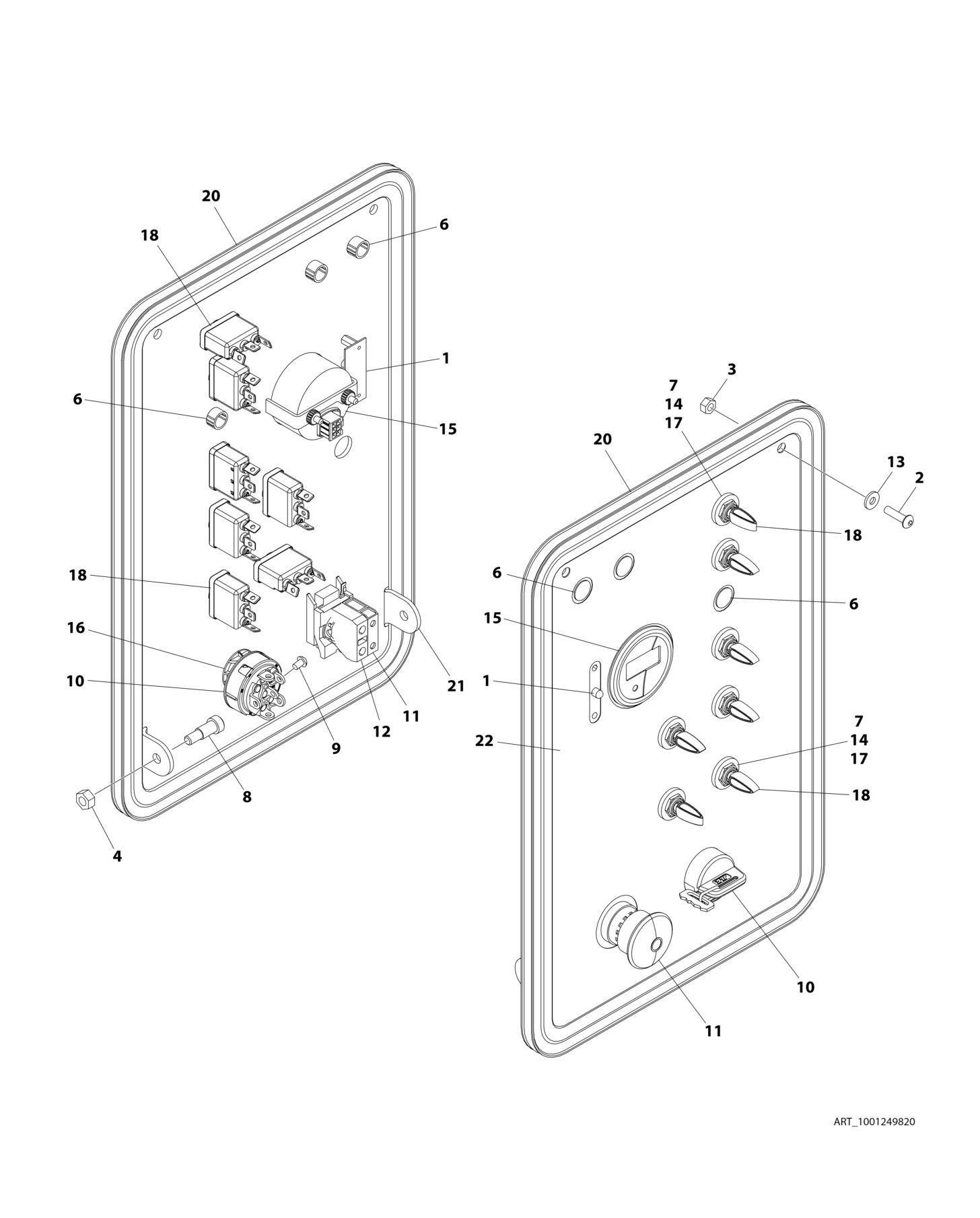

FIGURE 2-17. GROUND CONTROL BOX ELECTRICAL ASSEMBLY - E450AJ/M450AJ (ALL SPECS EXCEPT CE AND CHINA SPECS)

FIGURE 2-17. GROUND CONTROL BOX ELECTRICAL ASSEMBLY - E450AJ/M450AJ (ALL SPECS EXCEPT CE AND CHINA SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001249820 Ref GROUND CONTROL BOX ELECTRICAL ASSEMBLY 1 1001259489 1 P/C Board, Battery Charger 2 0630518 2 Bolt #10 x 3/4 3 3311011 2 Nut 4 3311405 2 Nut 1/4 6 3520028 3 Plug, Hole 1/2 7 3790012 7 O-Ring 8 3900187 2 Screw 9 3910804 6 Screw #8 x 1/4 10 4360469 1 Keyswitch 10 2860030 1 Key, Replacement (Set of 2) 11 4360475 1 Switch, Emergency Stop 11 7020175 1 Cap, Mushroom Head 11 7020176 1 Block, Contact 12 4360476 1 Block, Contact 13 4740120 2 Washer 14 4740397 7 Spacer 15 1001109503 1 Gauge, Indicator 16 1001151393 1 Shim, .063 17 1001155044 7 Nut 15/32 18 1001155045 7 Switch, Toggle 20 1001166394 4 ft /1.2m Seal 21 1001188066 1 Panel, Ground Control 22 1001221451 1 Decal - Ground Control Lid

REV

C
