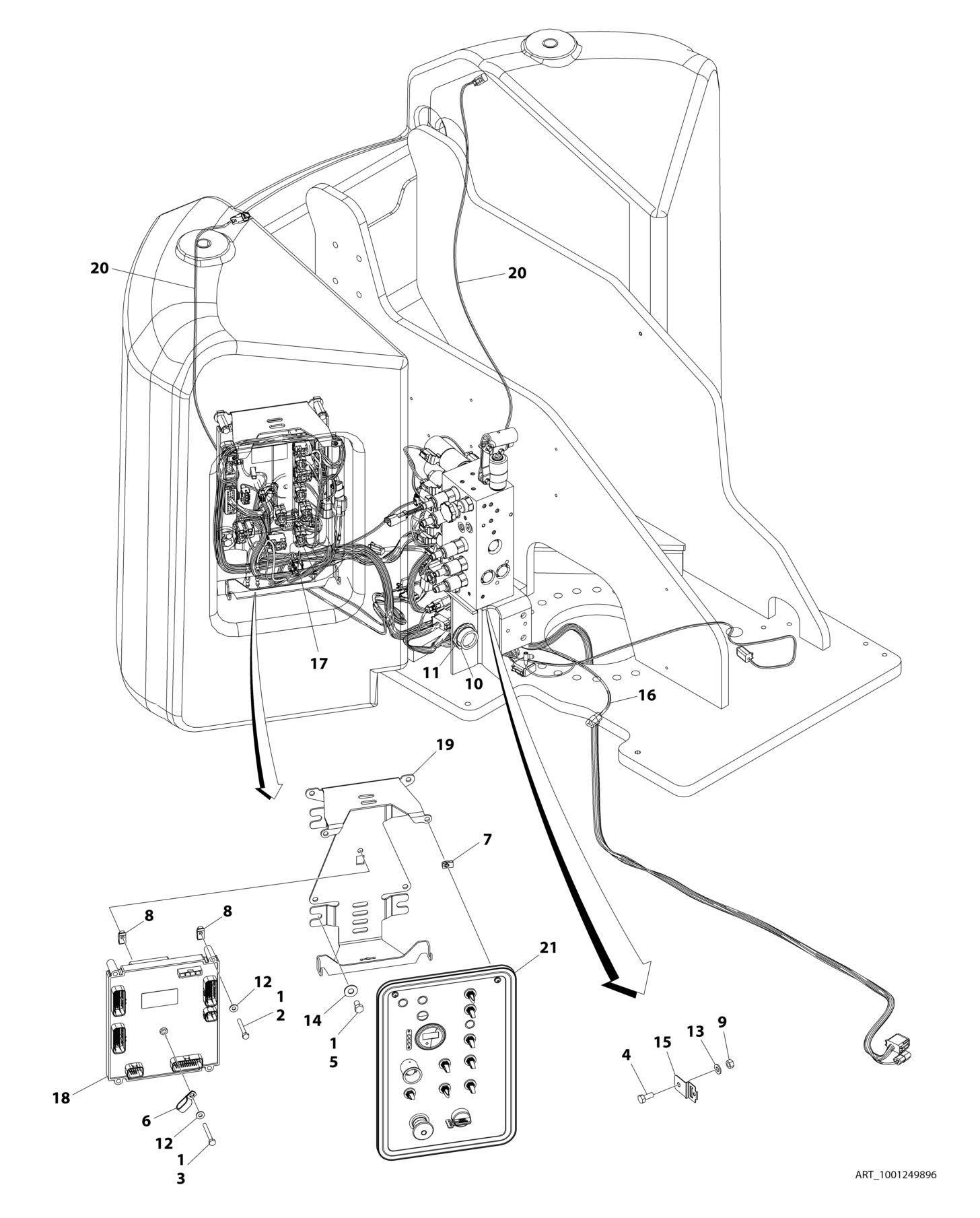

FIGURE 2 14. GROUND CONTROL BOX INSTALLATION E450AJ/M450AJ (CE AND CHINA SPECS
ITEM PART NUMBER QTY
DESCRIPTION
1001249896 Ref GROUND CONTROL BOX INSTALLATION 1 0100011 AR Compound, Locking 2 0641416 4 Bolt, 1/4-20 X 2 3 0641418 1 Bolt, 1/4-20 X 2-1/4 4 0641506 1 Bolt, 5/16-18 X 3/4 5 0641605 4 Bolt, 3/8-16 X 5/8 6 1321385 1 Clamp 7 3300365 2 Nut, Special 8 3300454 5 Nut, 1/4-20 9 3311505 1 Nut, Lock 5/16-18 10 4460470 1 Nut, Terminal 11 4460471 1 Washer, Lock 12 4711400 5 Washer, 1/4 13 4711500 1 Washer, 5/16 14 4751600 4 Washer, 3/8 15 1001153749 1 Clip 16 1001178794 1 Harness, Valve (See Separate Breakdown in ELECTRICAL SECTION) 17 1001179991 1 Harness, Ground Control Panel (See Separate Breakdown in ELECTRICAL SECTION) 18 1001182700 1 Module, Ground Control (Note: Re-calibration Required when Replaced) 19 1001188065 1 Bracket 20 1001245677 1 Harness, Turntable (See Separate Breakdown in ELECTRICAL SECTION) 21 1001249895 1 Ground Control Box Electrical Assembly (See Separate Breakdown in this Section)
