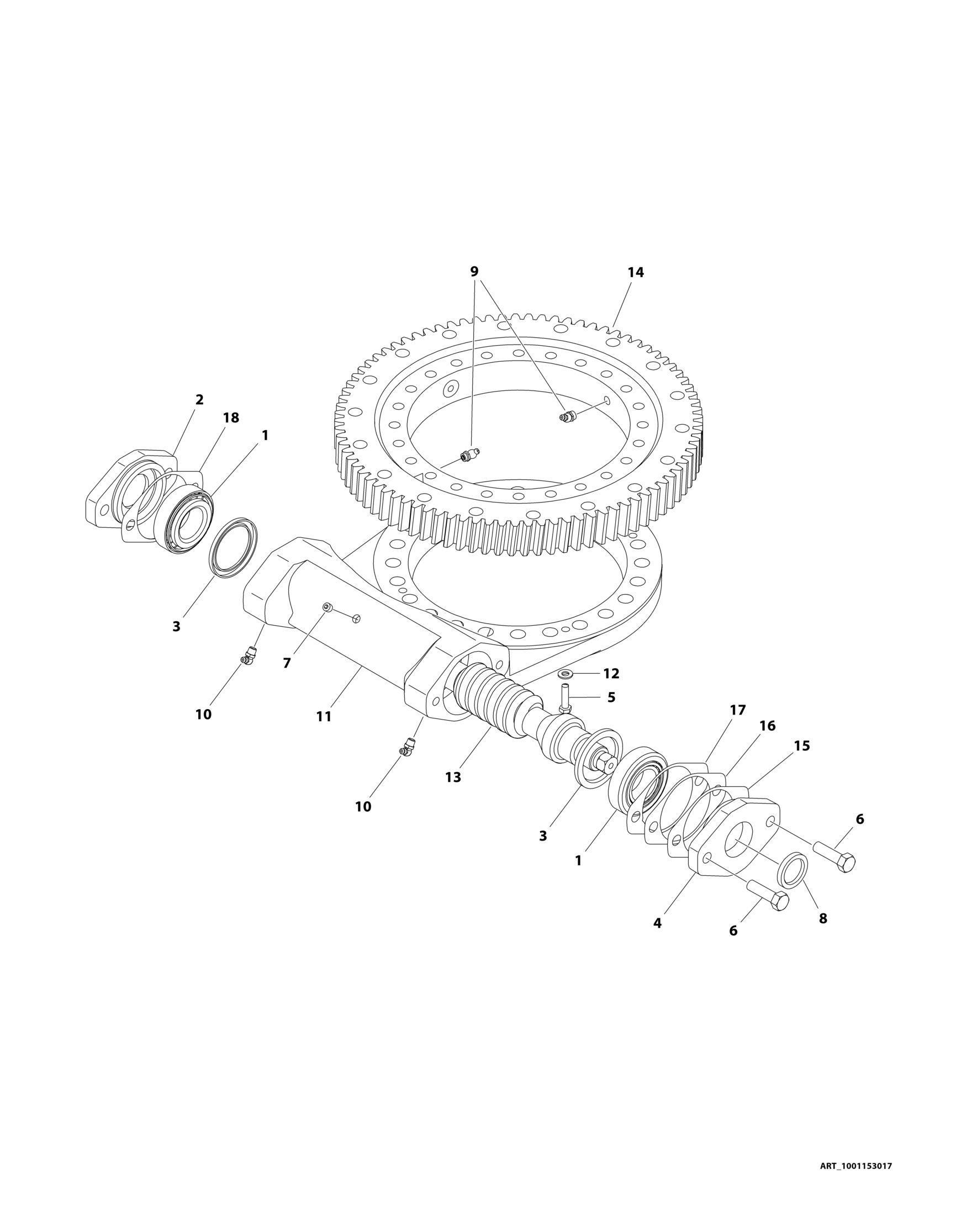

FIGURE 2 10. SWING BEARING ASSEMBLY
FIGURE 2-10. SWING BEARING ASSEMBLY
FIGURE 2-10. SWING BEARING ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1001153017 Ref SWING BEARING ASSEMBLY 1 7026042 2 Bearing, Cup 1 7026043 2 Bearing, Cone 2 7027356 1 Adapter, Motor 3 7027361 2 Seal 4 7027354 1 Cap, End 5 0641510 2 Bolt 5/16 x 1-1/4 6 0641812 2 Bolt 1/2 x 1-1/2 7 70000865 1 Plug 8 7027360 1 Seal 9 2160003 2 Fitting, Grease - 45 10 7027358 2 Fitting, Grease - 90 11 See Note NSS Housing (Note: Not Sold Separate - Use 1001153017) 12 4891500 1 Washer 5/16 13 7027363 1 Gear, Worm 14 70004159 1 Ring Gear 15 7027352 AR Gasket (.010 - Brown) 16 7027351 AR Gasket (.0075 - Clear) 17 7027350 AR Gasket (.005 - Blue) 18 7027353 1 Gasket (.020 - Yellow)
REV
B
