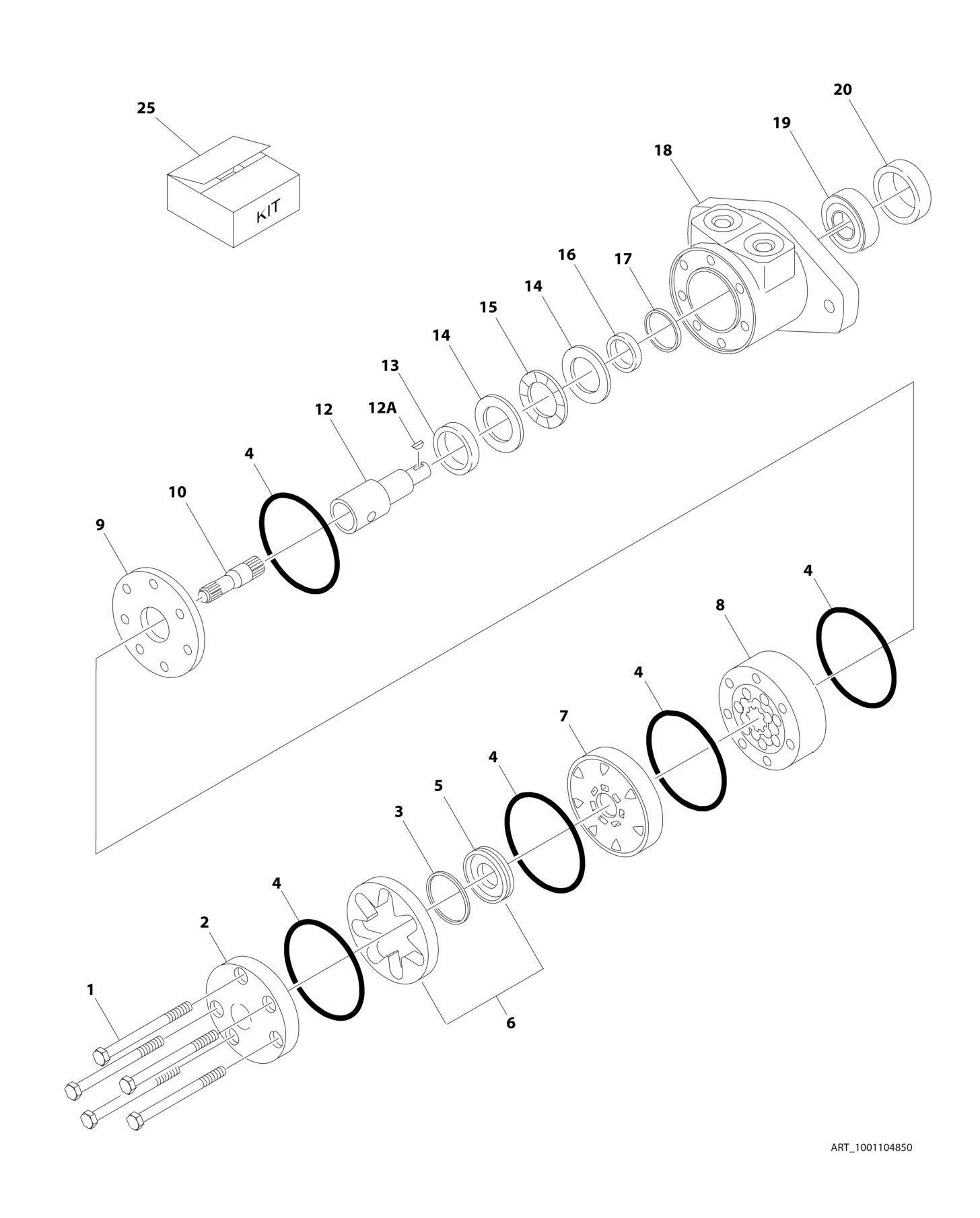

FIGURE 2 9. SWING MOTOR ASSEMBLY
FIGURE 2-9. SWING MOTOR ASSEMBLY
FIGURE 2-9. SWING MOTOR ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1001104850 Ref SWING MOTOR ASSEMBLY 1 See Note 5 Bolt (Note: Not Available for Purchase) 2 7004035 1 Cover, End 3 7023318 1 Seal, Commutator 4 7004036 5 O-Ring 5 See Note NSS Commutator (Note: Use Item 6) 6 7024453 1 Commutator and Ring Assembly (Includes Item 5) 7 7024379 1 Manifold 8 70002206 1 Rotor Set 9 7024380 1 Plate, Wear 10 70002207 1 Link, Drive 12 70000088 1 Shaft, Coupling 12A 70000089 1 Key 13 7024381 1 Bushing, Inner 14 7004043 1 Thrustwasher 15 7004044 1 Bearing, Thrust 16 7004049 1 Seal, Inner Shaft 17 7004045 1 Ring, Back-up 18 See Note NSS Housing (Note: Not Available - Purchase Complete Motor) 19 7024390 1 Bearing 20 7004047 1 Seal, Outer Shaft 25 7024389 1 Seal Kit (Includes Items 3, 4, 16, 17 & 20)
REV
A
