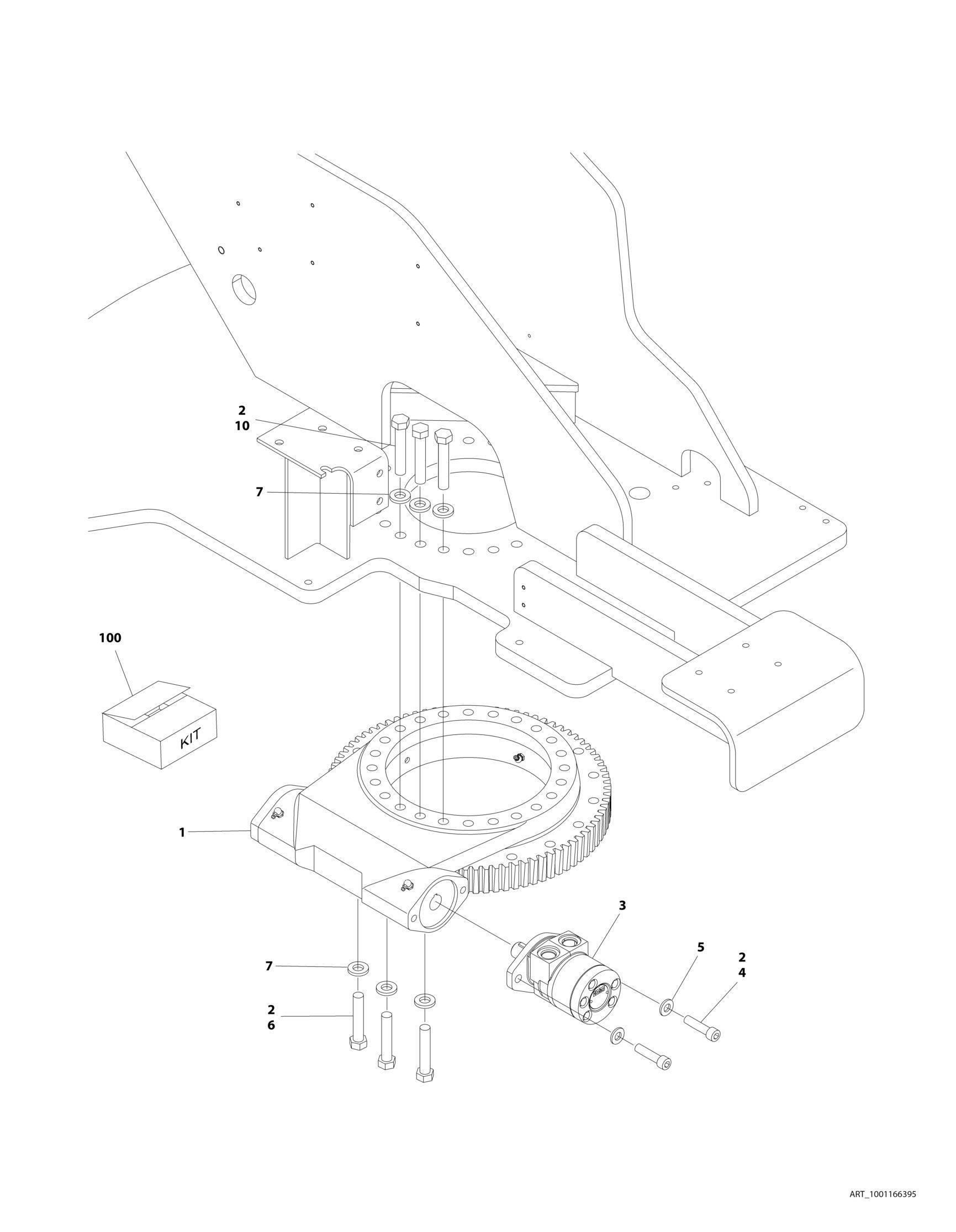

FIGURE 2 8. TURNTABLE BEARING AND SWING DRIVE INSTALLATION
ITEM PART NUMBER QTY DESCRIPTION REV
1001166395 Ref TURNTABLE BEARING AND SWING DRIVE INSTALLATION B 1 1001153017 1 Turntable Bearing and Worm Gear Assembly (See Separate Breakdown in this Section) 2 0100019 AR Compound, Locking 3 1001104850 1 Swing Motor Assembly (See Separate Breakdown in this Section) 4 3931832 2 Bolt 1/2 X 2 5 4740171 2 Washer 6 0682026 18 Bolt 5/8 X 3-1/4, Grade 8 7 4892000 41 Washer 5/8 9 3020029 AR Lube, Bearing Grease 10 0682028 23 Bolt 5/8 X 3-1/2, Grade 8 100 1001160527 1 Turntable Bearing Replacement Kit (Includes Items 1, 4, 5, 6, 7 & 10
