FIGURE 2 4. MAIN CONTROL VALVE ASSEMBLY

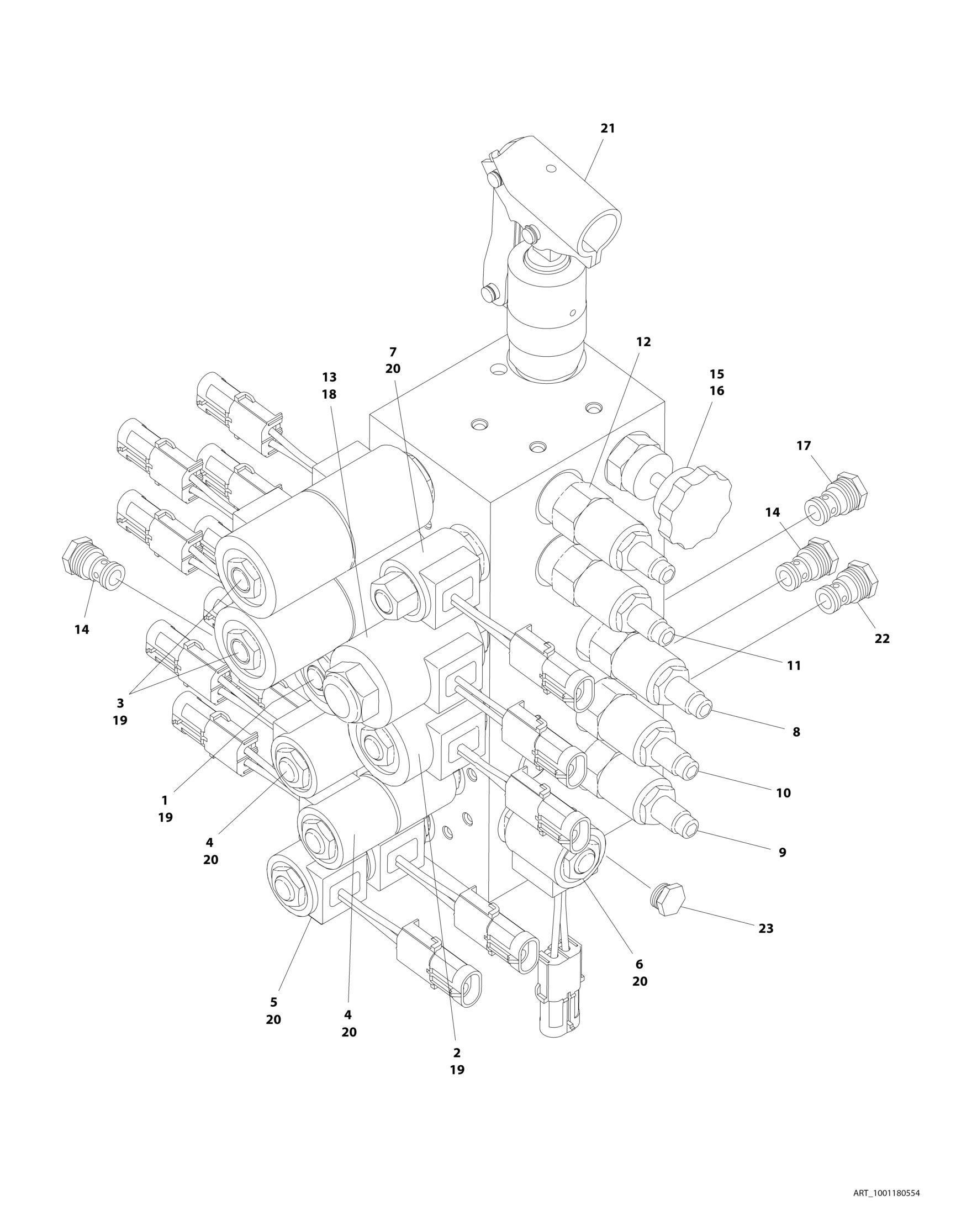

FIGURE 2-4. MAIN CONTROL VALVE ASSEMBLY
FIGURE 2-4. MAIN CONTROL VALVE ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1001180554 Ref MAIN CONTROL VALVE ASSEMBLY 1 7022394 1 Cartridge without Coil (Telescope In) 1 7012518 1 Seal Kit - 7022394 Cartridge 2 7012995 1 Cartridge without Coil (Telescope Out) 2 7012518 1 Seal Kit - 7012995 Cartridge 3 7021603 2 Cartridge without Coil (Lower and Upper Lift) 3 7012903 2 Seal Kit - 7021603 Cartridge 4 7017452 2 Cartridge without Coil (Platform Level) 4 7017402 2 Seal Kit - 7017452 Cartridge 5 7017433 1 Cartridge without Coil (Swing) 5 7017402 1 Seal Kit - 7017433 Cartridge 6 7021604 1 Cartridge without Coil (Swing Arrest) 6 7012953 1 Seal Kit - 7021604 Cartridge 7 7017410 1 Cartridge without Coil (Bypass Unloading) 7 7012967 1 Seal Kit - 7017410 Cartridge 8 7017418 1 Cartridge (Telescope) 8 7012998 1 Seal Kit - 7017418 Cartridge 9 7017421 1 Cartridge (Platform Level Backward Piston End) 9 7012998 1 Seal Kit - 7017421 Cartridge 10 7017418 1 Cartridge (Platform Level Forward Rod End) 10 7012998 1 Seal Kit - 7017418 Cartridge 11 70001876 1 Cartridge (Lower Lift Down) 11 7012998 1 Seal Kit - 70001876 Cartridge 12 70002806 1 Cartridge (Upper Lift Down) 12 7012998 1 Seal Kit - 70002806 Cartridge 13 7021611 1 Cartridge without Coil (Flow Regulator) 13 7012518 1 Seal Kit - 7021611 Cartridge 14 7012914 2 Cartridge (Platform Level) 14 7012918 2 Seal Kit - 7012914 Cartridge 15 7012947 1 Cartridge (Emergency Descent) 15 7012518 1 Seal Kit - 7012947 Cartridge 16 7012961 1 Knob 17 10837580 1 Cartridge (Telescope) 17 7010543 1 Seal Kit - 10837580 Cartridge 18 70005210 1 Coil 19 7024883 6 Coil 20 7024885 8 Coil 21 70004019 1 Pump, Manual 21 2900756 1 Seal Kit - 70004019 Pump 21 2560122 1 Handle (Not Shown) 21 1001114761 1 Handle, Grip (Red) (Not Shown) 21 2560123 1 Handle, Grip (Black) (Not Shown) 22 7012975 1 Cartridge (Check) 22 7012540 1 Seal Kit - 7012975 Cartridge 23 70000381 1 Plug, Cartridge 24 70005091 1 Orifice (Swing) (Not Shown) 25 70004884 1 Orifice (Platform) (Not Shown)
