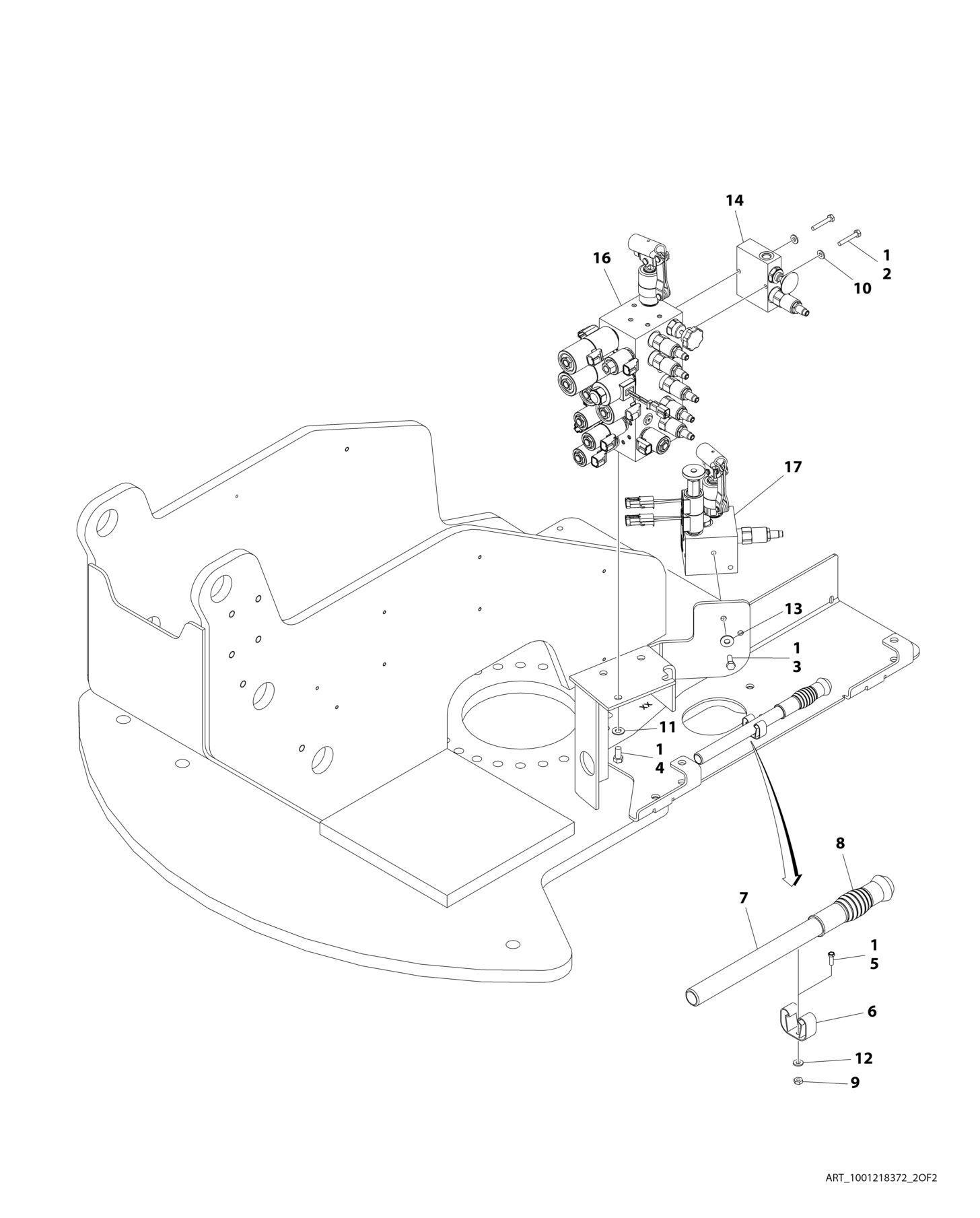

FIGURE 2 3. VALVE INSTALLATION TURNTABLE MOUNTED M450AJ
ITEM PART NUMBER QTY
DESCRIPTION
1001218372 Ref VALVE INSTALLATION - TURNTABLE MOUNTED 1 0100011 AR Compound, Locking 2 0641413 3 Bolt 1/4 x 1-5/8 3 0641507 2 Bolt 5/16 x 7/8 4 0641606 4 Bolt 3/8 x 3/4 5 0720804 1 Bolt #8 x .500 6 1380136 1 Clip, Gripper 7 2560122 1 Handle 8 2560123 1 Handle, Grip 9 3310805 1 Nut #8 10 4711400 2 Washer 1/4 11 4711600 4 Washer 3/8 12 4750800 1 Washer #8 13 4751500 2 Washer 5/16 14 1001097777 1 Releveling Valve Assembly (See Separate Breakdown in this Section) 16 1001180554 1 Main Control Valve Assembly (See Separate Breakdown in this Section) 17 1001216920 1 Jib Valve Assembly (See Separate Breakdown in this Section)
