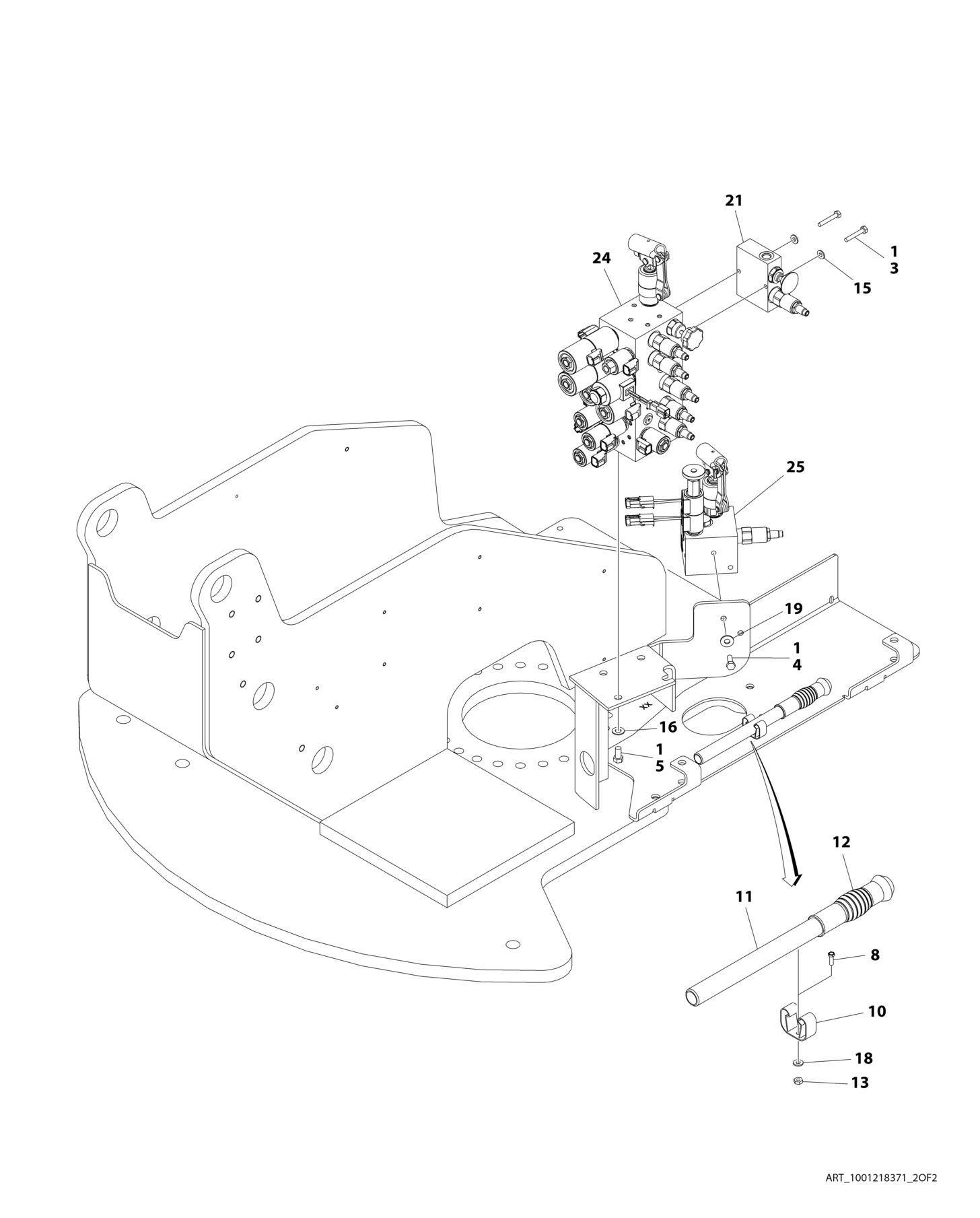

FIGURE 2 2. VALVE INSTALLATION TURNTABLE MOUNTED E450AJ
ITEM PART NUMBER QTY
DESCRIPTION
1001218371 Ref VALVE INSTALLATION - TURNTABLE MOUNTED 1 0100011 AR Compound, Locking 3 0641413 2 Bolt 1/4 x 1-5/8 4 0641507 2 Bolt 5/16 x 7/8 5 0641606 4 Bolt 3/8 x 3/4 8 0720804 1 Bolt #8 x .500 10 1380136 1 Clip, Gripper 11 2560122 1 Handle 12 2560123 1 Handle, Grip 13 3310805 1 Nut #8 15 4711400 2 Washer 1/4 16 4711600 4 Washer 3/8 18 4750800 1 Washer #8 19 4751500 2 Washer 5/16 21 1001097777 1 Releveling Valve Assembly (See Separate Breakdown in this Section) 24 1001180554 1 Main Control Valve Assembly (See Separate Breakdown in this Section) 25 1001216920 1 Jib Valve Assembly (See Separate Breakdown in this Section)
REV
A
