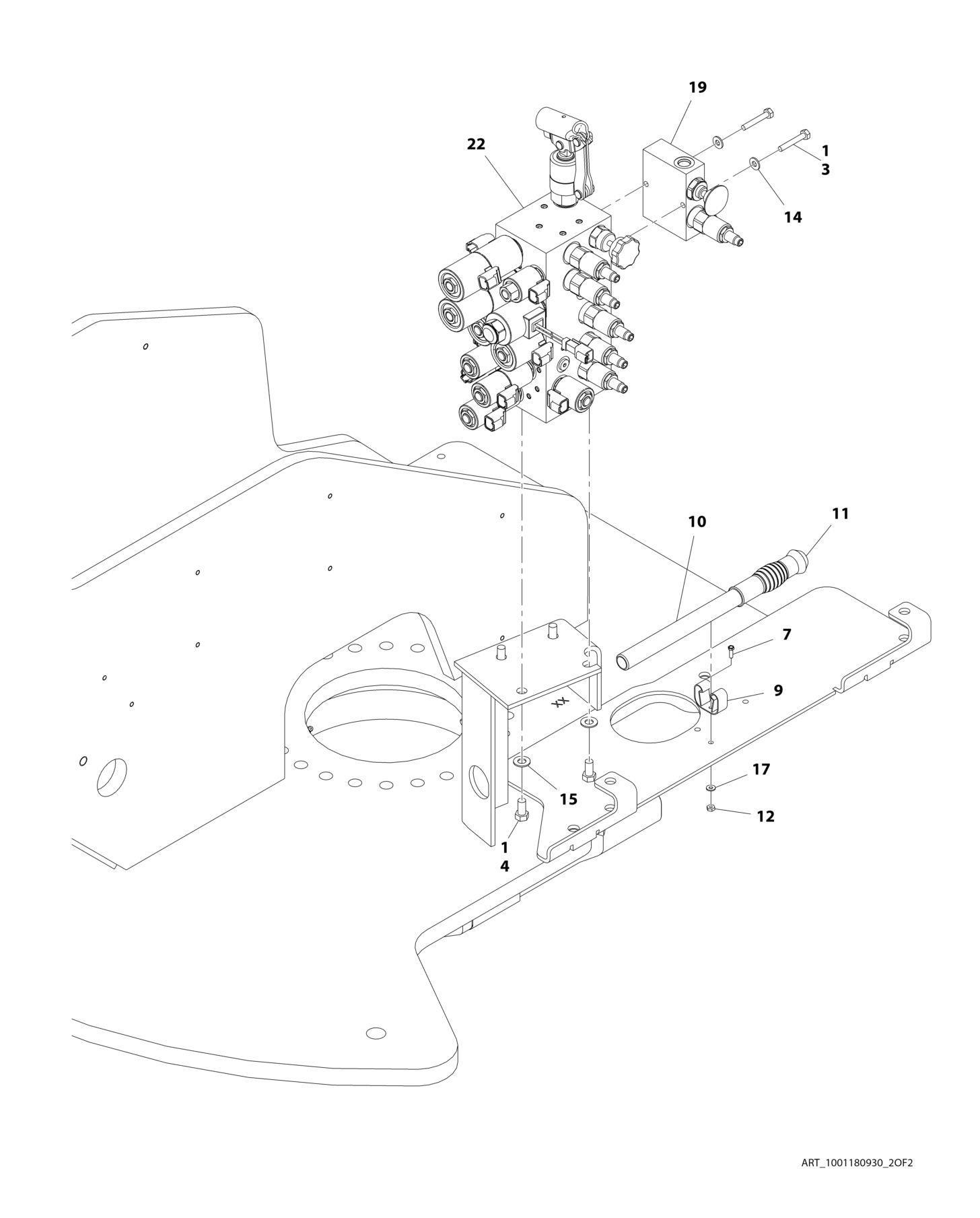

FIGURE 2 1. VALVE INSTALLATION TURNTABLE MOUNTED E450A
ITEM PART NUMBER QTY
DESCRIPTION
1001180930 Ref VALVE INSTALLATION- TURNTABLE MOUNTED 1 0100011 AR Compound, Locking 3 0641413 2 Bolt 1/4 X 1-5/8 4 0641606 4 Bolt 3/8 X 3/4 7 0720804 1 Bolt #8 X .500 9 1380136 1 Clip, Gripper 10 2560122 1 Handle 11 2560123 1 Handle, Grip 12 3310805 1 Nut #8 14 4711400 2 Washer 1/4 15 4711600 4 Washer 3/8 17 4750800 1 Washer #8 19 1001097777 1 Releveling Valve Assembly (See Separate Breakdown in this Section) 22 1001180554 1 Main Control Valve Assembly (See Separate Breakdown in this Section)
