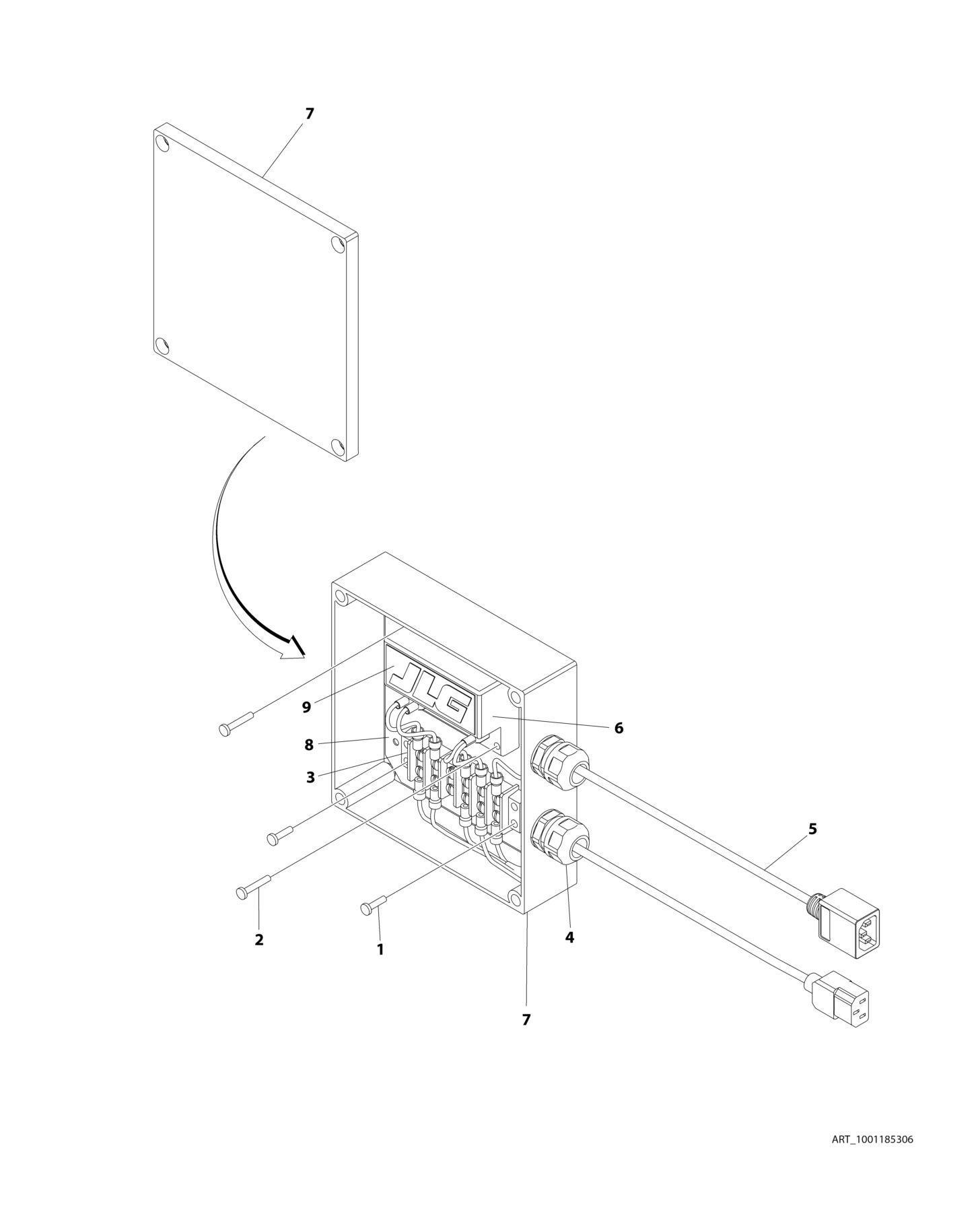

FIGURE 1 37. VOLTAGE GUARD ASSEMBLY AND INSTALLATION (ANSI EXPORT AND CHINA SPECS

FIGURE 1-37. VOLTAGE GUARD ASSEMBLY AND INSTALLATION (ANSI EXPORT AND CHINA SPECS)

FIGURE 1-37. VOLTAGE GUARD ASSEMBLY AND INSTALLATION (ANSI EXPORT AND CHINA SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001185306 Ref VOLTAGE GUARD ASSEMBLY AND INSTALLATION 1 4010408 2 Screw M4 x 16 2 4010412 2 Screw M4 x 24 3 4460007 1 Buss Bar 4 4460968 2 Connector, Strain Relief 5 1001184947 1 Harness, OVP Cable Kit 6 1001185156 1 Module, Voltage Guard 7 1001186497 1 Box 8 1001187101 1 Plate 9 1001187530 1 Decal - JLG

REV

B
