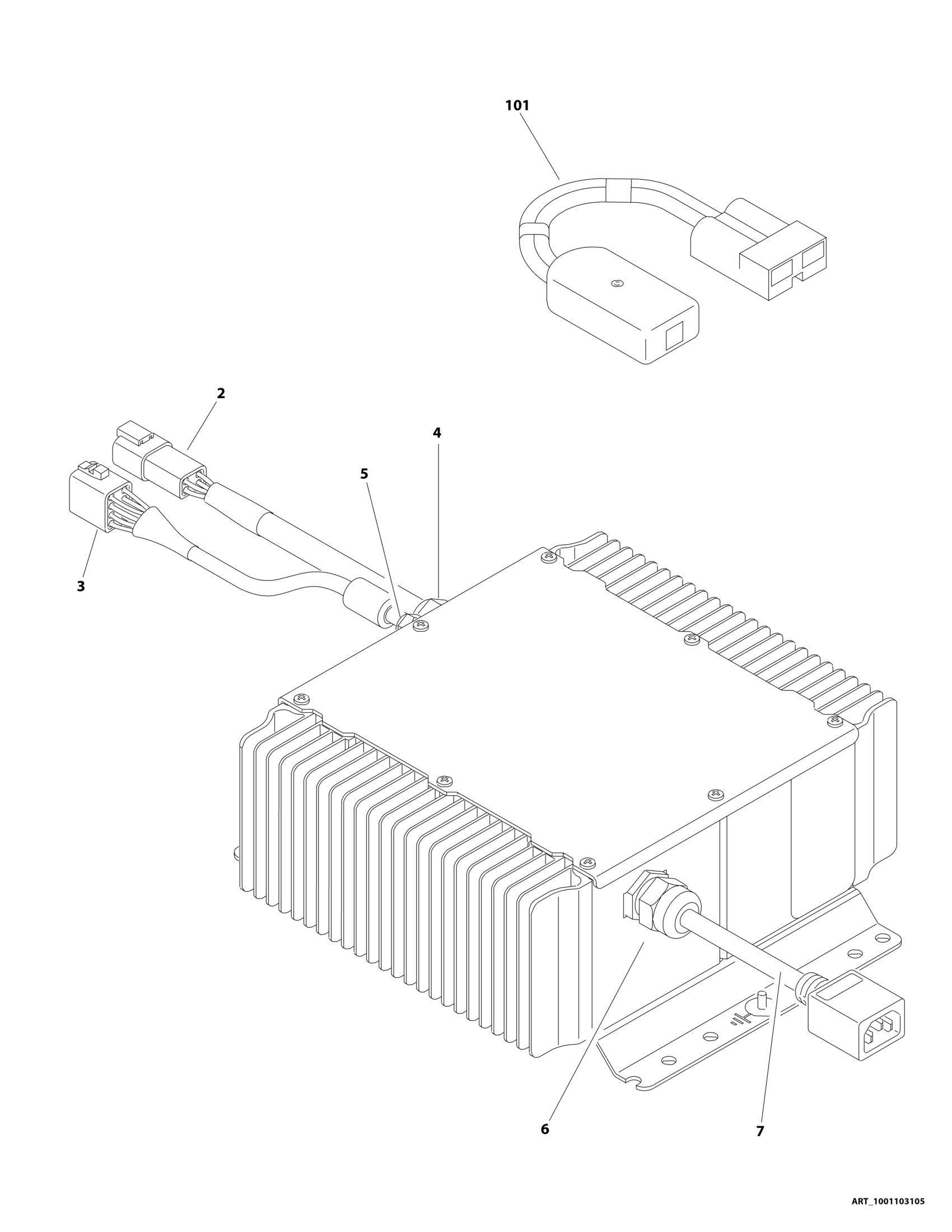

FIGURE 1 35. BATTERY CHARGER ASSEMBLY

FIGURE 1-35. BATTERY CHARGER ASSEMBLY

FIGURE 1-35. BATTERY CHARGER ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1001103105 Ref BATTERY CHARGER ASSEMBLY 2 See Note 1 Harness with Connector (Note: Not Available for Purchase) 2 1001116811 1 Receptacle, Female - 4 Position 2 4460508 4 Pin, Male 3 See Note 1 Harness with Connector (Note: Not Available for Purchase) 3 4460930 1 Plug, Male - 8 Position 3 4460464 7 Socket, Female 4 See Note 1 Connector, Strain Relief (Note: Not Available for Purchase) 5 See Note 1 Connector, Strain Relief (Note: Not Available for Purchase) 6 See Note 1 Connector, Strain Relief (Note: Not Available for Purchase) 7 See Note 1 Harness with Connector (Note: Not Available for Purchase) 101 1600466 NLA Battery Charger Reprogram Controller (Use p/n 2915230)

REV

D
