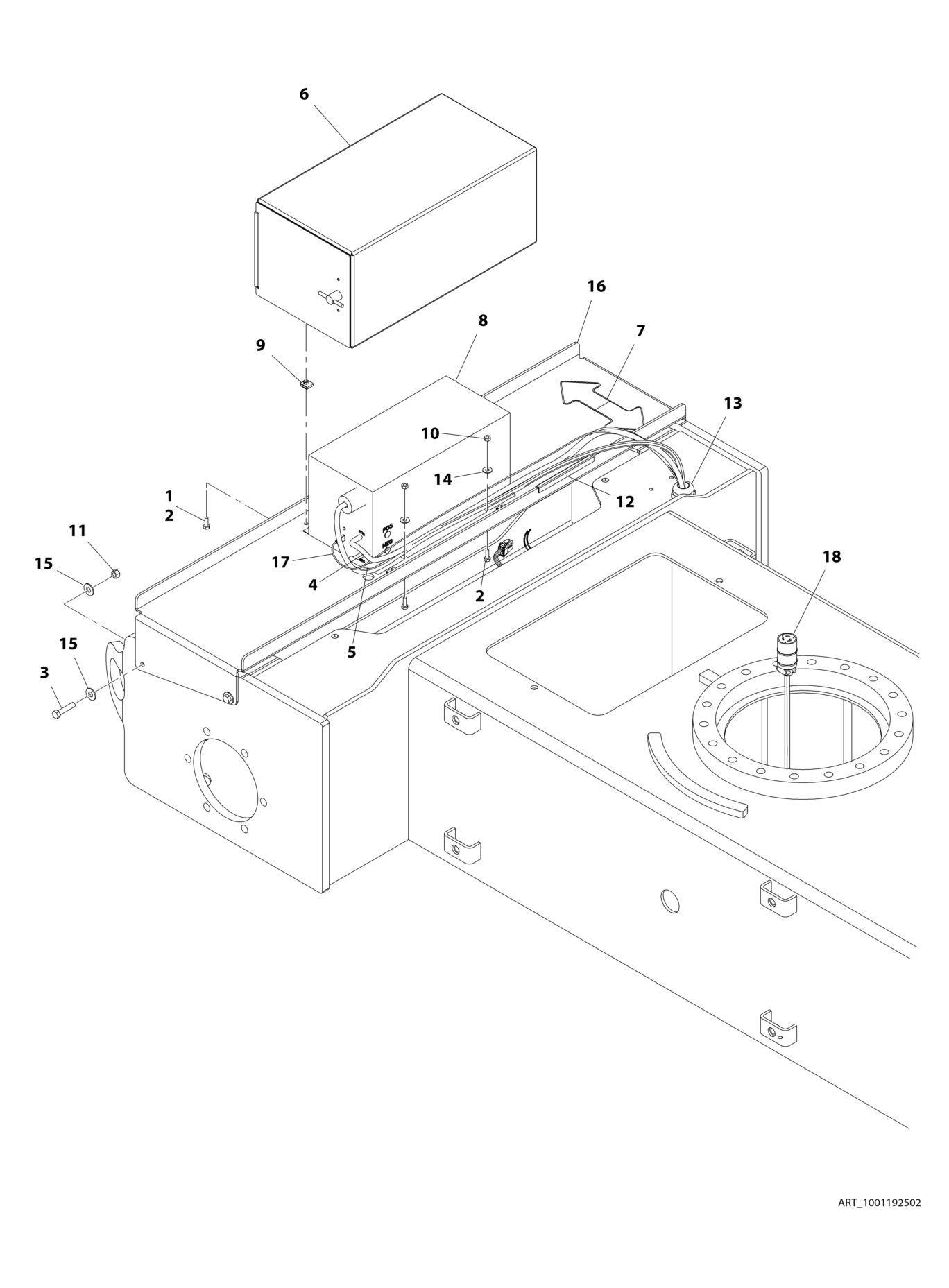

FIGURE 1 36. INVERTER INSTALLATION E450A/E450AJ
FIGURE 1-36. INVERTER INSTALLATION - E450A/E450AJ
FIGURE 1-36. INVERTER INSTALLATION - E450A/E450AJ
ITEM PART NUMBER QTY
DESCRIPTION
1001192502 Ref INVERTER INSTALLATION 1 0100011 AR Compound, Locking 2 0641406 8 Bolt 1/4 X 3/4 3 0641614 4 Bolt 3/8 X 1-3/4 4 1060801 1 Cable, Battery 5 1060802 1 Cable, Ground 6 1670953 1 Cover 7 1701642 1 Decal - Arrow 8 2460037 1 Inverter 9 3300353 4 Nut, Tinnerman 10 3311405 4 Nut 1/4 11 3311605 4 Nut 3/8 12 4060805 6 in Shield, Flex Trim /150mm 13 4460426 1 Connector, Strain Relief 14 4751400 4 Washer, 1/4 15 4751600 8 Washer, 3/8 16 1001167014 1 Bracket 17 1001192293 1 Inverter Ignition Harness (See Separate Breakdown in ELECTRICAL SECTION) 18 1001182296 1 Inverter Harness (See Separate Breakdown in ELECTRICAL SECTION)
