FIGURE 1 33. BATTERY CHARGER INSTALLATION (ANSI EXPORT, CE AND CHINA SPECS) (PVC 2007

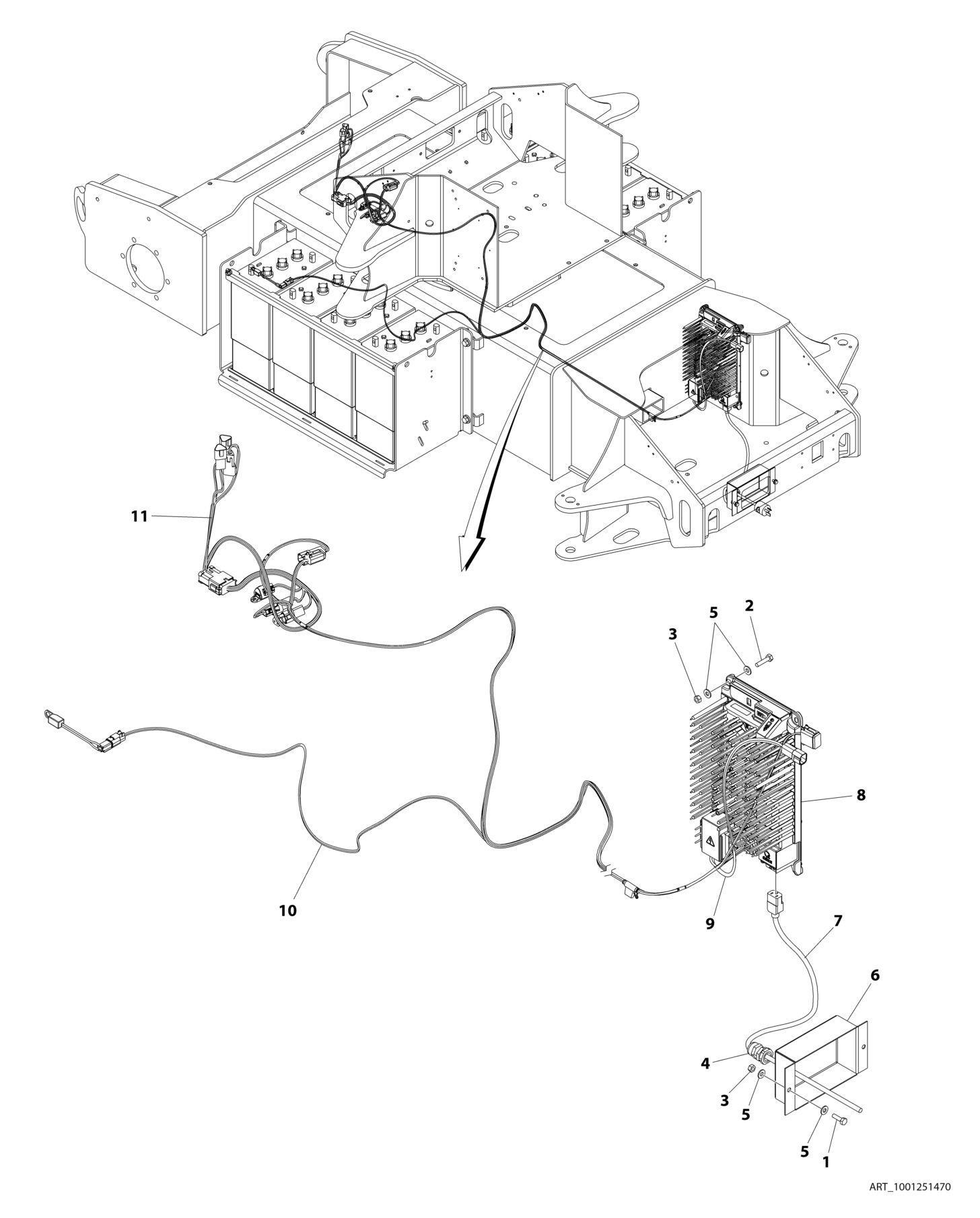

FIGURE 1-33. BATTERY CHARGER INSTALLATION (ANSI EXPORT, CE AND CHINA SPECS) (PVC 2007)

FIGURE 1-33. BATTERY CHARGER INSTALLATION (ANSI EXPORT, CE AND CHINA SPECS) (PVC 2007)

ITEM PART NUMBER QTY

DESCRIPTION

1001251470 Ref BATTERY CHARGER INSTALLATION 1 0641407 2 Bolt 1/4 x 7/8 2 0641409 4 Bolt 1/4 x 1-1/8 3 3311405 6 Nut 1/4 4 4460428 1 Connector, Strain Relief 5 4711400 12 Washer 1/4 6 1001191212 1 Panel, Cable 7 1001207974 1 AC Cord 8 1001251382 1 Battery Charger Assembly (See Separate Breakdown in this Section) 9 1001260408 1 Harness, Charger DC Connection 10 1001260531 1 Harness, Charger 11 1001260532 1 Harness, EBOOM

REV

A
