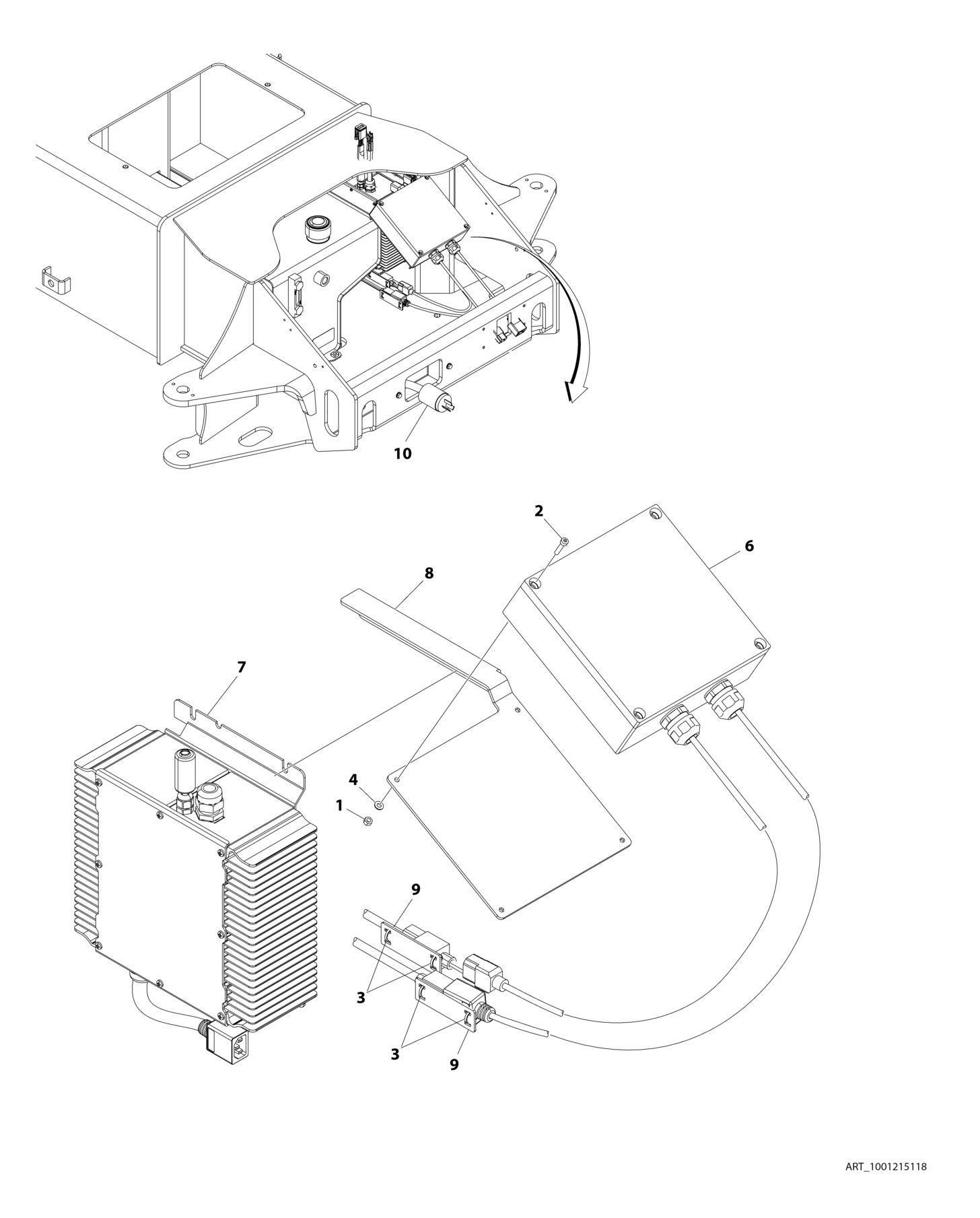

FIGURE 1 34. BATTERY CHARGER INSTALLATION E450AJ (ANSI EXPORT AND CHINA SPECS

FIGURE 1-34. BATTERY CHARGER INSTALLATION - E450AJ (ANSI EXPORT AND CHINA SPECS)

FIGURE 1-34. BATTERY CHARGER INSTALLATION - E450AJ (ANSI EXPORT AND CHINA SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001215118 Ref BATTERY CHARGER INSTALLATION 1 3290405 4 Nut M4 2 4031508 4 Bolt M4 x 20 3 4240017 4 Tie, Strap 4 4811400 4 Washer M4 6 1001185306 1 Voltage Guard Installation (See Separate Breakdown in this Section) 7 1001191203 1 Battery Charger Installation (See Separate Breakdown in this Section) 8 1001215119 1 Bracket 9 1001215326 1 Bracket 10 1001187816 1 Plug

REV

C
