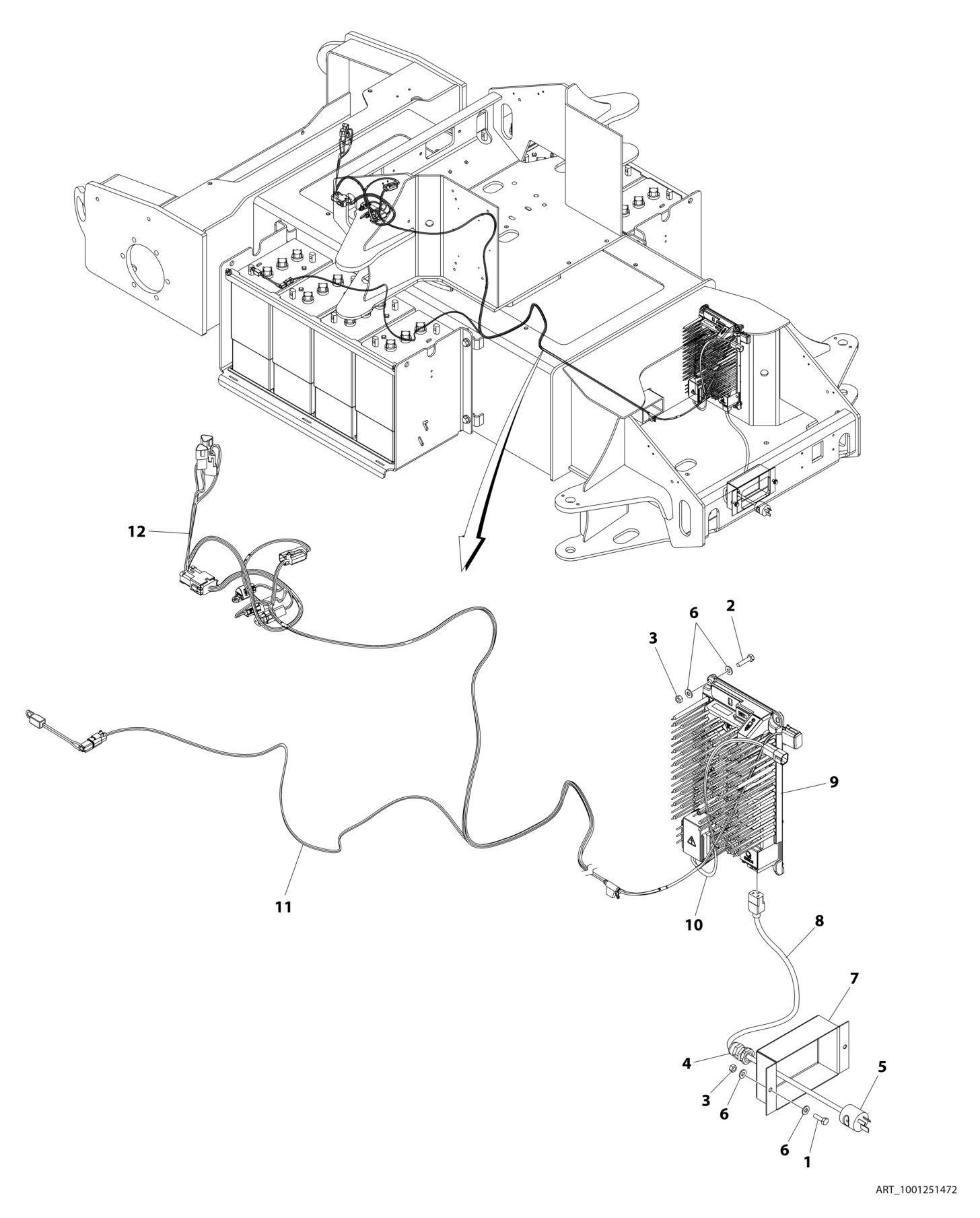

FIGURE 1 31. BATTERY CHARGER INSTALLATION E400AJPN (AUSTRALIAN SPEC) (PVC 2007
ITEM PART NUMBER QTY
DESCRIPTION
1001251472 Ref BATTERY CHARGER INSTALLATION 1 0641407 2 Bolt 1/4 x 7/8 2 0641409 4 Bolt 1/4 x 1-1/8 3 3311405 6 Nut 1/4 4 4460428 1 Connector, Strain Relief 5 4460805 1 Plug 6 4711400 12 Washer 1/4 7 1001191212 1 Panel, Cable 8 1001207974 1 AC Cord 9 1001251382 1 Battery Charger Assembly (See Separate Breakdown in this Section) 10 1001260408 1 Harness, Charger DC Connection 11 1001260531 1 Harness, Charger 12 1001260532 1 Harness, EBOOM
REV
A
