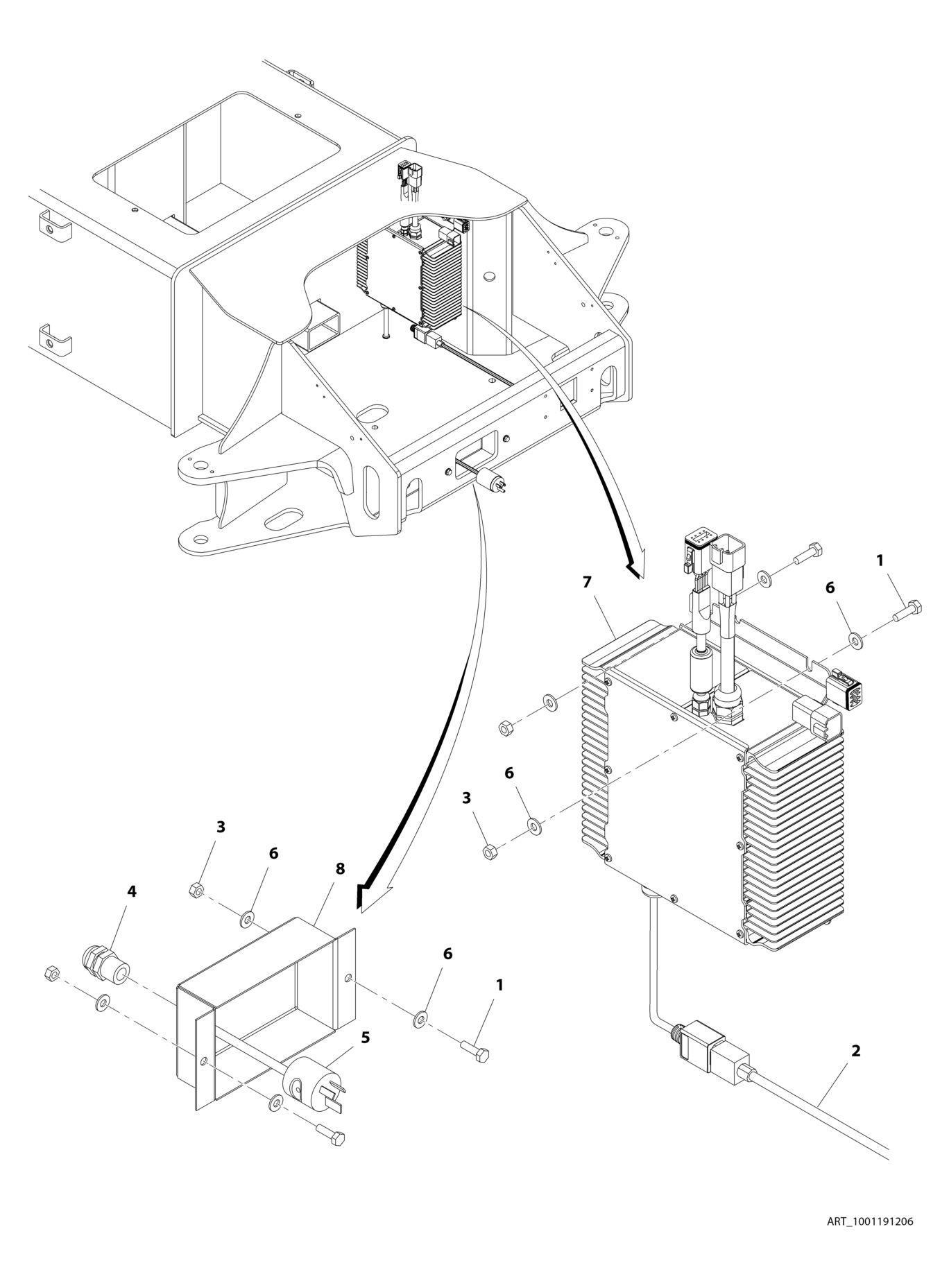

FIGURE 1 30. BATTERY CHARGER INSTALLATION E450A/E450AJ (AUSTRALIAN SPEC) (PVC 2001

FIGURE 1-30. BATTERY CHARGER INSTALLATION - E450A/E450AJ (AUSTRALIAN SPEC) (PVC 2001)

FIGURE 1-30. BATTERY CHARGER INSTALLATION - E450A/E450AJ (AUSTRALIAN SPEC) (PVC 2001)

ITEM PART NUMBER QTY

DESCRIPTION

1001191206 Ref BATTERY CHARGER INSTALLATION 1 0641407 6 Bolt 1/4 x 7/8 2 1060689 1 AC Cord 3 0641405 1 Bolt 1/4 x 5/8 4 4460428 1 Connector, Strain Relief 5 4460805 1 Plug 6 4711400 14 Washer 1/4 7 1001103105 1 Battery Charger Assembly (See Separate Breakdown in this Section) 8 1001191212 1 Panel, Cable

REV

B
