FIGURE 1 29. BATTERY CHARGER INSTALLATION (ALL SPECS EXCEPT AUSTRALIAN & CE SPECS) (PVC 2007

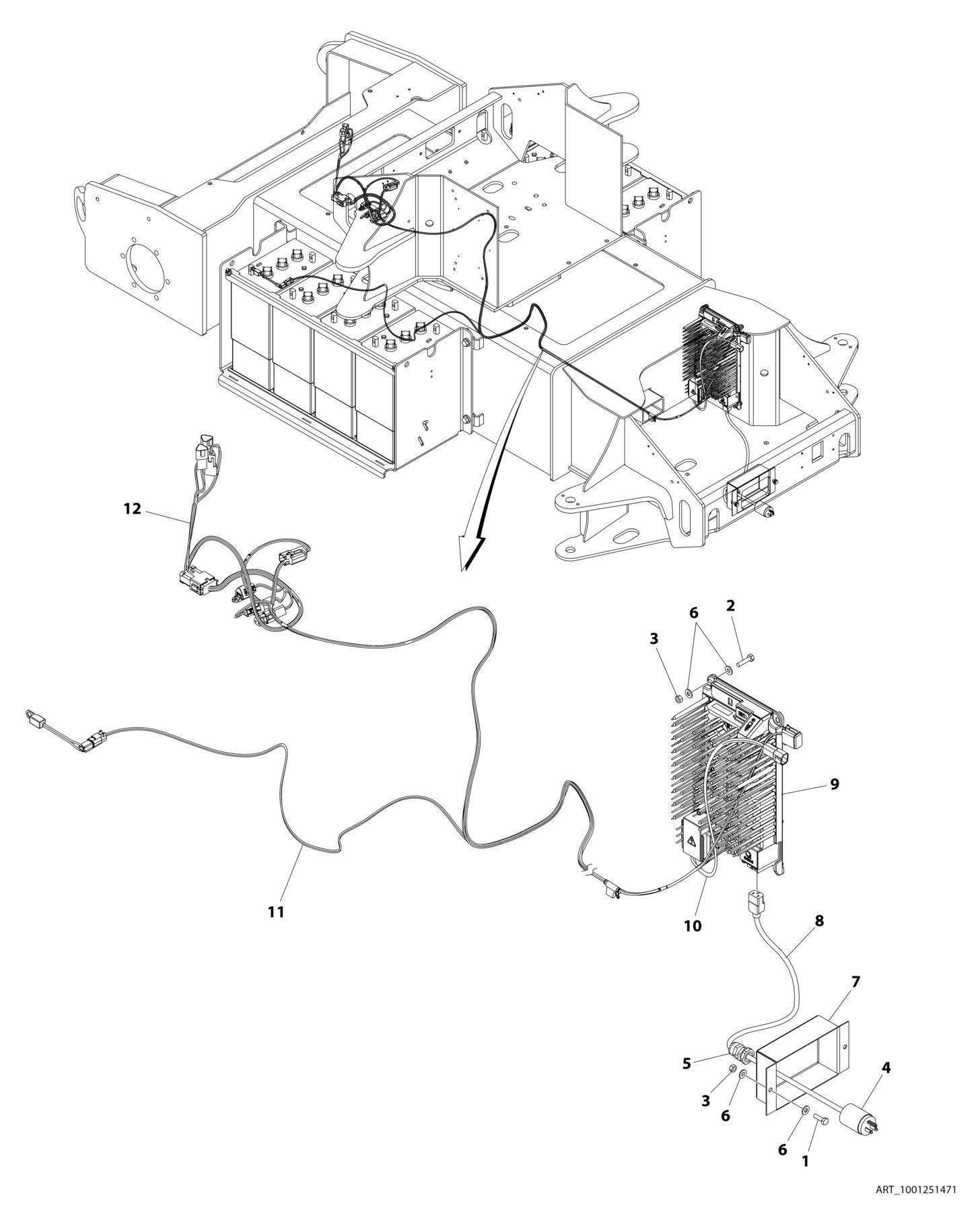

FIGURE 1-29. BATTERY CHARGER INSTALLATION (ALL SPECS EXCEPT AUSTRALIAN & CE SPECS) (PVC 2007)

FIGURE 1-29. BATTERY CHARGER INSTALLATION (ALL SPECS EXCEPT AUSTRALIAN & CE SPECS) (PVC 2007)

ITEM PART NUMBER QTY

DESCRIPTION

1001251471 Ref BATTERY CHARGER INSTALLATION 1 0641407 2 Bolt 1/4 x 7/8 2 0641409 4 Bolt 1/4 x 1-1/8 3 3311405 6 Nut 1/4 4 4460138 1 Plug, AC 5 4460428 1 Connector, Strain Relief 6 4711400 12 Washer 1/4 7 1001191212 1 Panel, Cable 8 1001207970 1 AC Cord 9 1001251382 1 Battery Charger Assembly (See Separate Breakdown in this Section) 10 1001260408 1 Harness, Charger DC Connection 11 1001260531 1 Harness, Charger 12 1001260532 1 Harness, EBOOM

REV

A
