FIGURE 1 26. BATTERY BOX INSTALLATION AGM BATTERIES (ALL SPECS EXCEPT AUSTRALIAN, CE AND CHINA SPECS

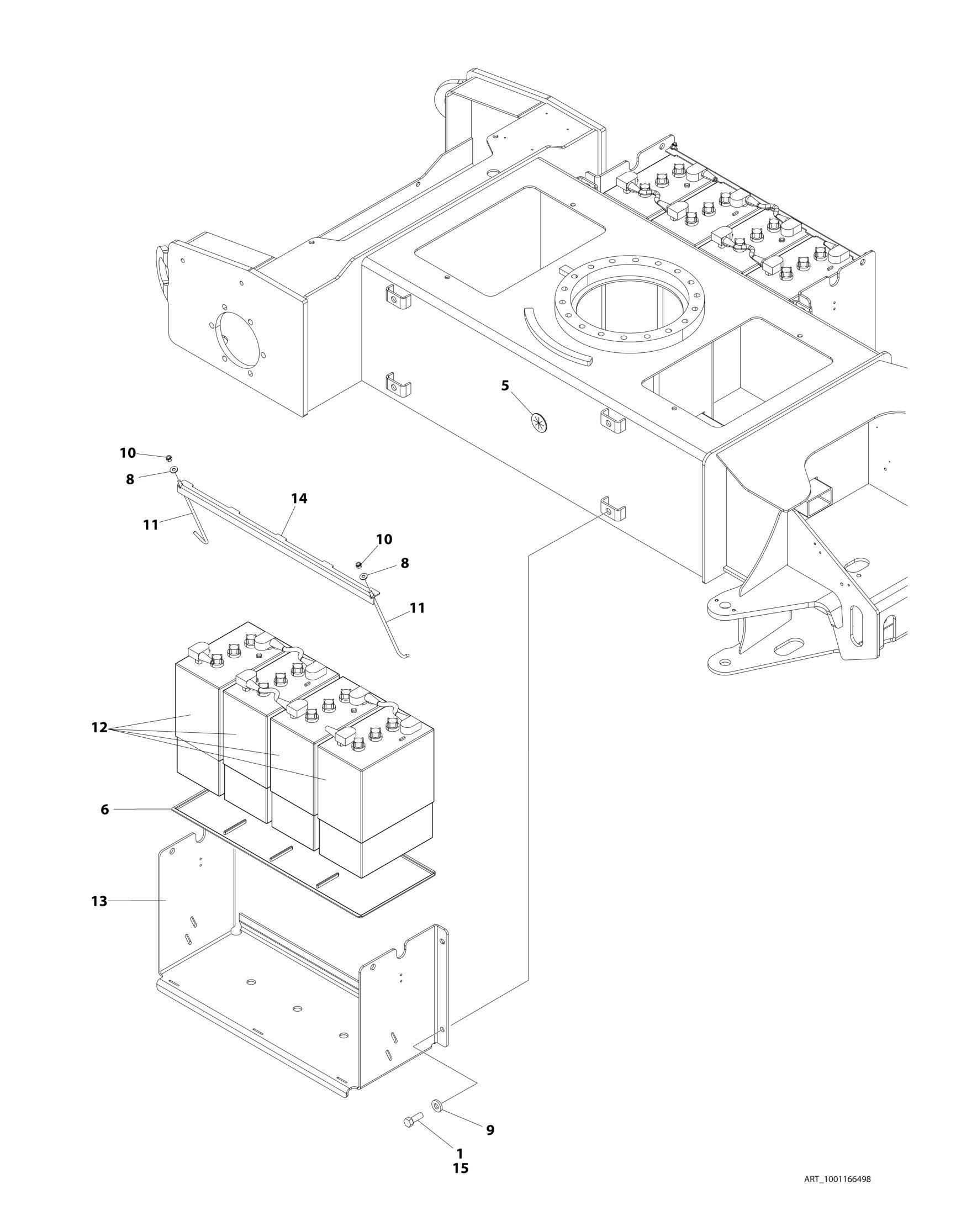

FIGURE 1-26. BATTERY BOX INSTALLATION - AGM BATTERIES (ALL SPECS EXCEPT AUSTRALIAN, CE AND CHINA SPECS)

FIGURE 1-26. BATTERY BOX INSTALLATION - AGM BATTERIES (ALL SPECS EXCEPT AUSTRALIAN, CE AND CHINA SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

1001166498 Ref BATTERY BOX INSTALLATION - AGM BATTERIES 1 0641811 8 Bolt 1/2 X 1-3/8 5 2540045 2 Grommet 6 3000003 2 Liner, Battery Box 8 4751500 4 Washer 5/16 9 4891800 8 Washer 1/2 Hardened 10 88521205 4 Nut 5/16 11 1001093382 4 Bolt, J-Bolt 12 1001114782 8 Battery (Wet) (AGM Batteries) 13 1001166495 2 Tray, Battery 14 1001166496 2 Battery Hold Down 15 0100011 AR Compound, Locking

REV

C
