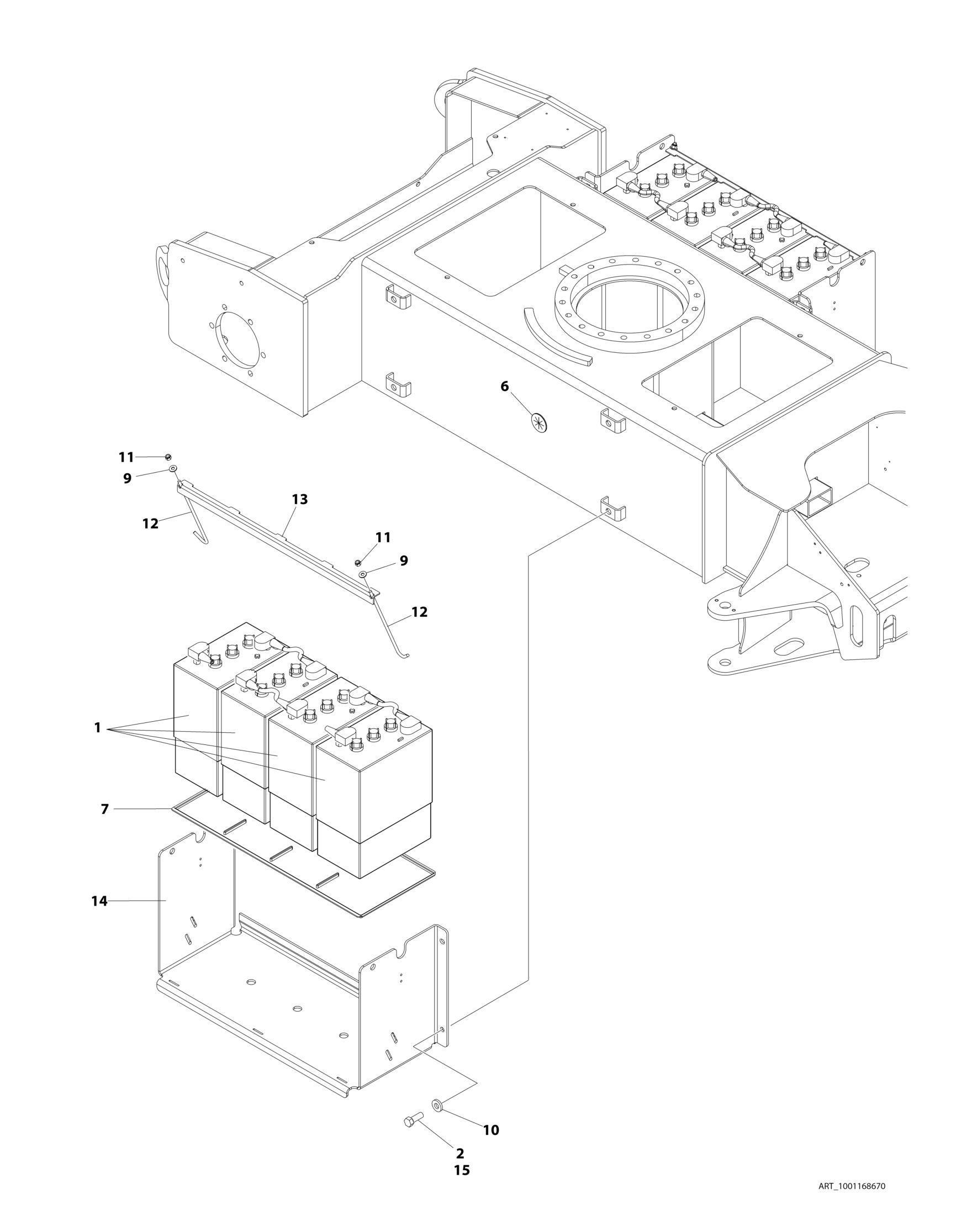

FIGURE 1 25. BATTERY BOX INSTALLATION STANDARD (AUSTRALIAN, CE AND CHINA SPECS
ITEM PART NUMBER QTY
DESCRIPTION
1001168670 Ref BATTERY BOX INSTALLATION 1 0400055 8 Battery (Wet) 1 7016177 8 Battery (Dry) 2 0641811 8 Bolt 1/2 X 1-3/8 6 2540045 2 Grommet 7 3000003 2 Liner, Battery Box 9 4751500 4 Washer 5/16 10 4891800 8 Washer 1/2 Hardened 11 88521205 4 Nut 5/16 12 1001093382 4 Bolt, J-Bolt 13 1001166496 2 Battery Hold Down 14 1001168800 2 Tray, Battery 15 0100011 AR Compound, Locking
REV
C
